Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu
Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu
Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu
Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu
Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu

Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu

Fiyat : $0.00(KDV Dahil)



Audio-Technica ATW-2110B/P Kablosuz Yaka Mikrofonu

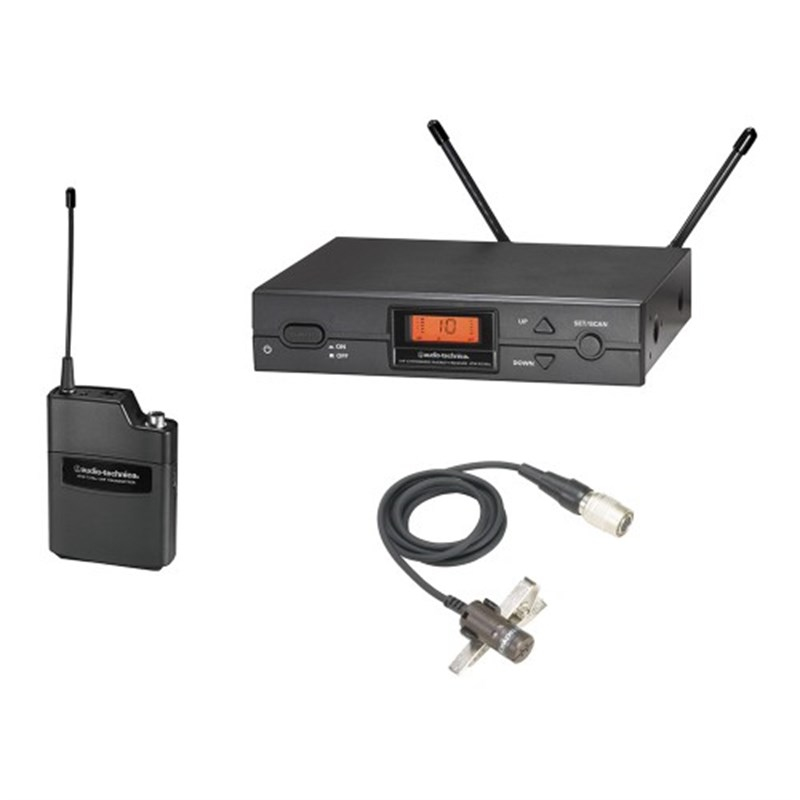

 ATW-R2100b receiver

ATW-T210a UniPak® body-pack transmitter

AT829cW cardioid condenser lavalier microphone

Automatic frequency scanning

Up to 10 user selectable channels available

Tone Lock™ squelch function fights interference





Overall System
Operating Frequencies UHF band
  656.125 – 678.500 MHz (D Band)
  854.900 – 864.900 MHz (F Band)
  487.125 – 506.500 MHz (I Band)
  606.500 – 631.000 MHz (U Band)
Number Of Channels 10 total
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Modulation Mode FM
Frequency Response 100 Hz to 15,000 Hz
Operating Range 100 m (300') typical
Operating Temperature Range 41° F (5° C) to 113° F (45° C)
Receiver
Receiving System True Diversity
Image Rejection 55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Sensitivity 20dBuV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation)
Audio Output Attenuator (ATTN) Unbalanced: 25mV (100k ohms load), 1/4" phone jack
  Balanced: 50mV (Attenuator; 0dB)
  12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz deviation, 100k ohm load, XLRM-type
Antenna Input BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
Dimensions 210 mm x 44 mm x 162.2 mm (W x H x D)
Weight 1.0kg
Accessories Included Two flexible UHF antennas, rack mount adapters, AC adapters
Belt Pack
RF Power Output High: 30mW; Low: 10mW, nominal
Spurious Emissions According to National Regulations
Battery Type 1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption 150 mA typical
Battery Life Approximately 9 hours (low), 7 hours (high)
Dimensions 66 mm x 92.3 mm x 22.5 mm (W x H x D)
Net Weight 80g
