Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon
Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon
Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon
Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon
Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon

Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon

Fiyat : $0.00(KDV Dahil)

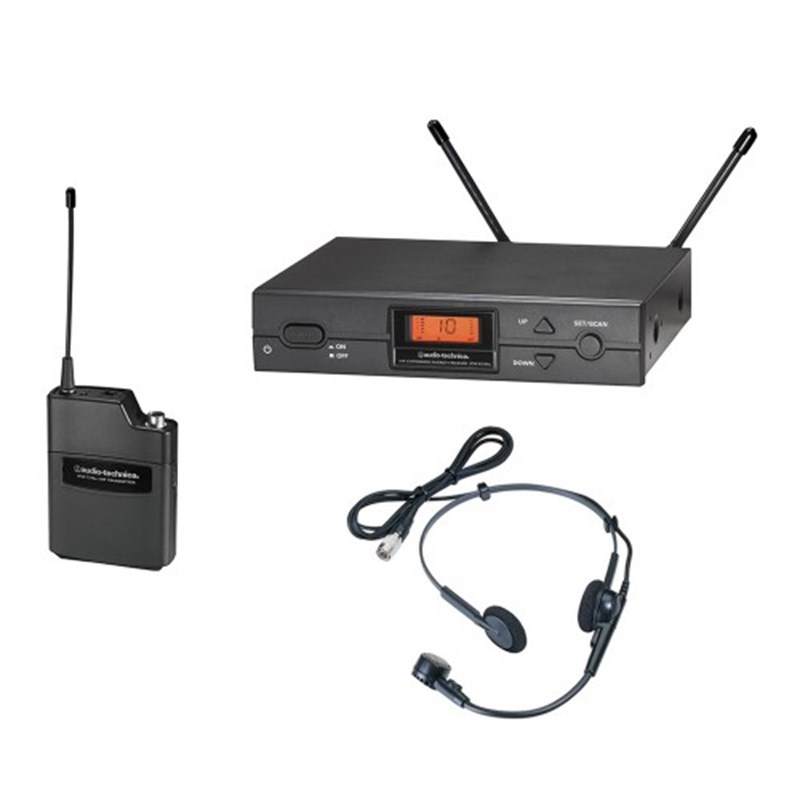

Audio-Technica ATW-2110B/H Kablosuz PRO8HECW HeadSet Mikrofon

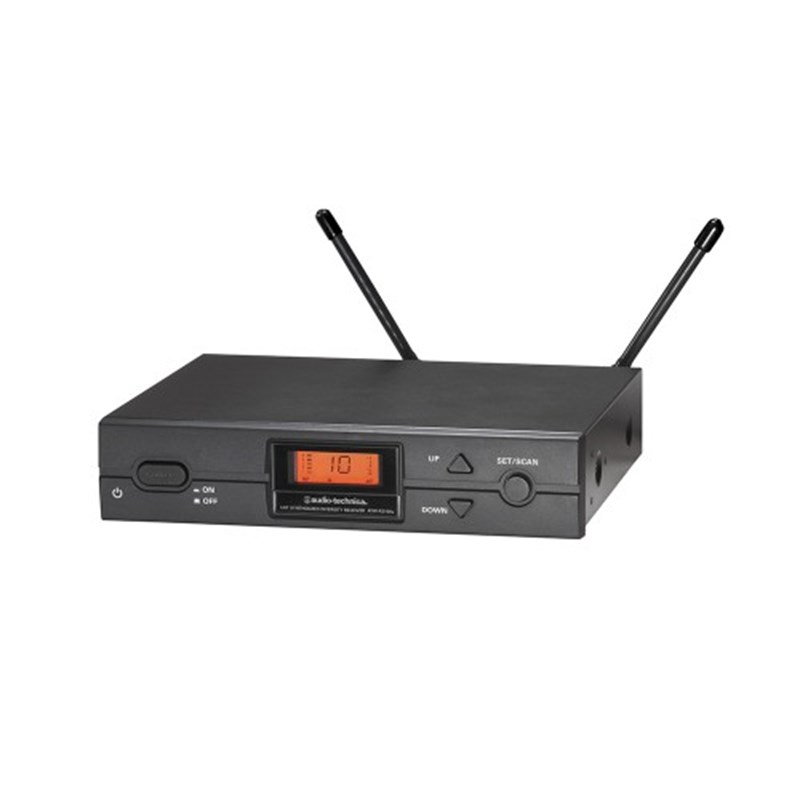

ATW-R2100b receiver

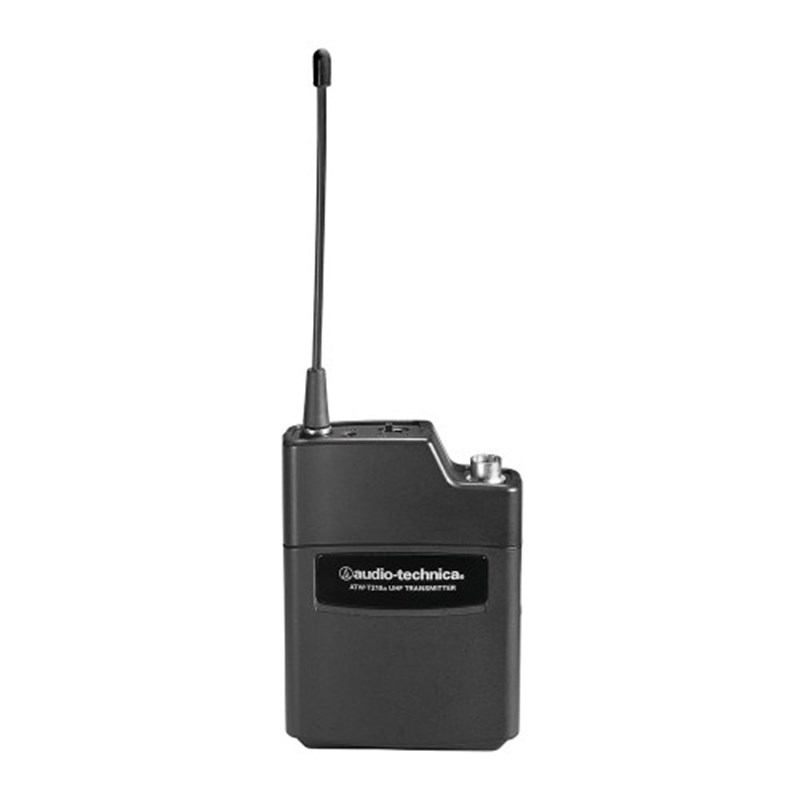

ATW-T210a UniPak® body-pack transmitter

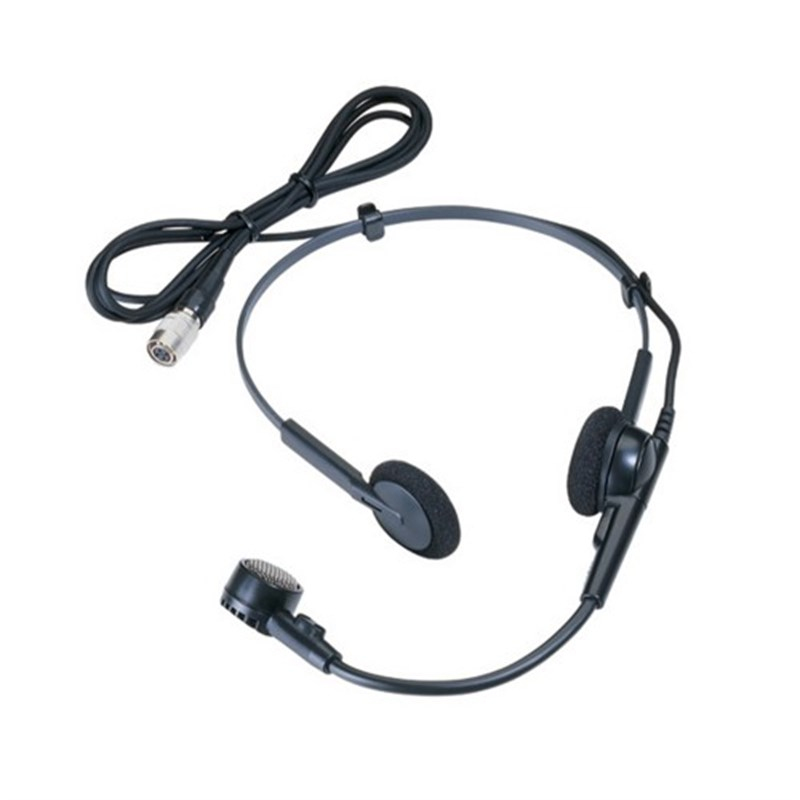

PRO8HEcW hypercardioid dynamic headworn microphone

Automatic frequency scanning

Up to 10 user selectable channels available

Tone Lock™ squelch function fights interference



Automatic frequency scanning finds an open channel at the touch of a button

Up to 10 user selectable channels are available

Compatibility varies from country to country

True Diversity operation selects the better signal from the two receiver sections, reducing dropouts

Tone Lock™ squelch function fights interference

Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering

Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

PRO8HEcW Headworn hypercardioid dynamic microphone with HRS connector





Overall System
Operating Frequencies UHF band
  656.125 – 678.500 MHz (D Band)
  854.900 – 864.900 MHz (F Band)
  487.125 – 506.500 MHz (I Band)
  606.500 – 631.000 MHz (U Band)
Number Of Channels 10 total
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Modulation Mode FM
Frequency Response 100 Hz to 15,000 Hz
Operating Range 100 m (300') typical
Operating Temperature Range 41° F (5° C) to 113° F (45° C)
Receiver
Receiving System True Diversity
Image Rejection 55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Sensitivity 20dBµV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation)
Audio Output Attenuator (ATTN) Unbalanced: 25mV (100k ohms load), 1/4" phone jack
  Balanced: 50mV (Attenuator; 0dB)
  12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz deviation, 100k ohm load, XLRM-type
Antenna Input BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
Dimensions 210 mm x 44 mm x 162.2 mm (W x H x D)
Weight 1.0kg
Accessories Included Two flexible UHF antennas, rack mount adapters, AC adapters
Belt Pack
RF Power Output High: 30mW; Low: 10mW, nominal
Spurious Emissions According to National Regulations
Battery Type 1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption 150 mA typical
Battery Life Approximately 9 hours (low), 7 hours (high)
Dimensions 66 mm x 92.3 mm x 22.5 mm (W x H x D)
Net Weight 80g




Kablosuz Mikrofon
Headset
