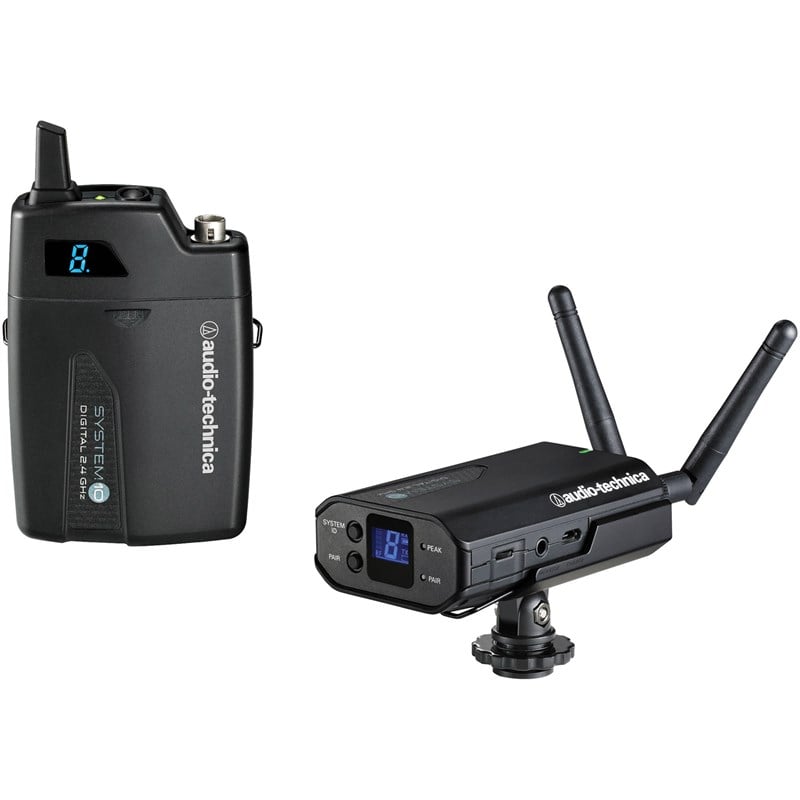

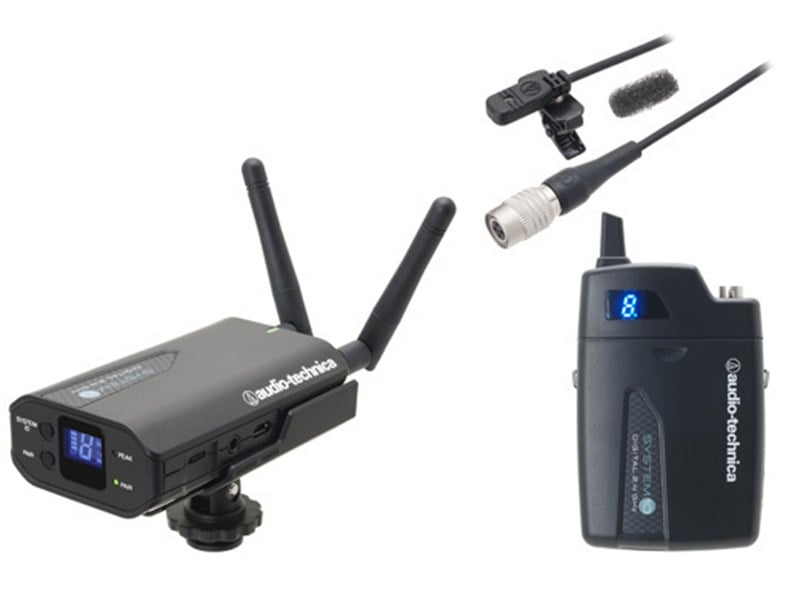

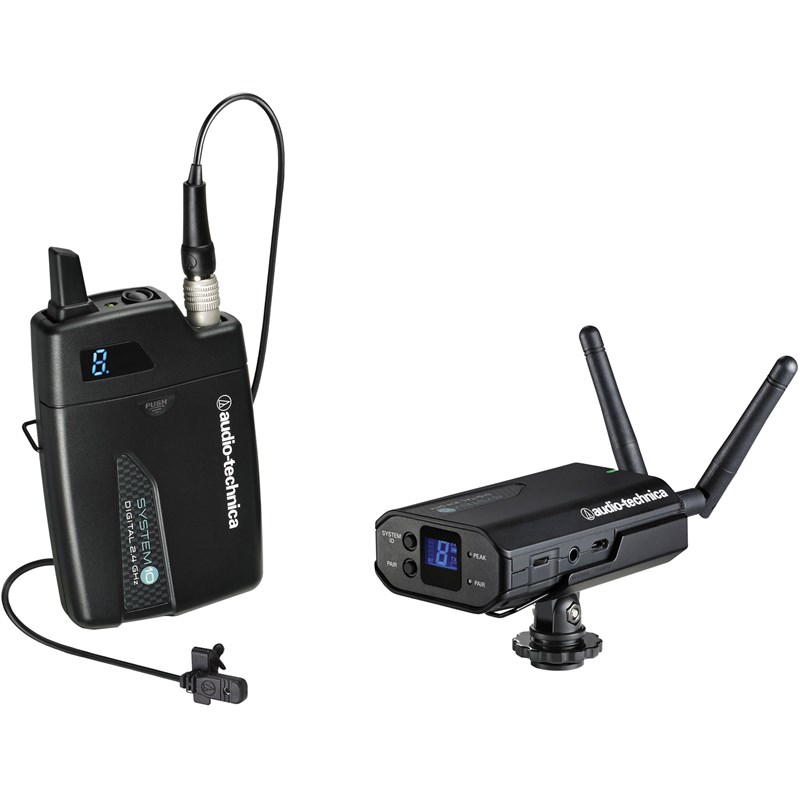

Audio Technica ATW-1701P System 10 Camera-Mount Wireless System
ATW-R1700 receiver
ATW-T1001 UniPak® transmitter
AT829cW miniature cardoid condenser mic
Operates in the 2.4 GHz range – completely free from TV interference
Ultra compact receiver size with multiple mounting options
Internal rechargeable 12-hr battery
24-bit / 48 kHz Digital wireless system, combining excellent sound quality and reliability
Frequency range 2.4 GHz, operating outside of DTV or 4G bands
Automatic Frequency Selection. Plug & Play. Ease of use and reliability
Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
Ultra compact and lightweight receiver (105 g) with multiple mounting options
Extremely easy to use, with channel selection, timing and instant setup
Output jacks balanced and unbalanced with selectable level control for use with most cameras and recording devices (3.5mm stereo mini jack output)
Internal rechargeable battery with a life of 12 hours
Independent headphone jack and volume control for local audio cueing
Audio output attenuator on the receiver (0dB / 10dB / 20dB) for adjusting the sensitivity
Cardiod condenser lavalier microphone
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz (Depending on microphone type)
Operating Range 30 m (100') radius, 60 m (200') diameter typical (Open range environment with no interfering signals)
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Battery Type Internal Battery: 3.7V rechargeable Li-ion battery
Battery Current/Life 12 hours (Depending on environmental conditions)
Battery Charging Time: 4 hours 30 minutes (Depending on environmental conditions)
Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
Dimensions 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Weight 105g
Accessories Included Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g without batteries
