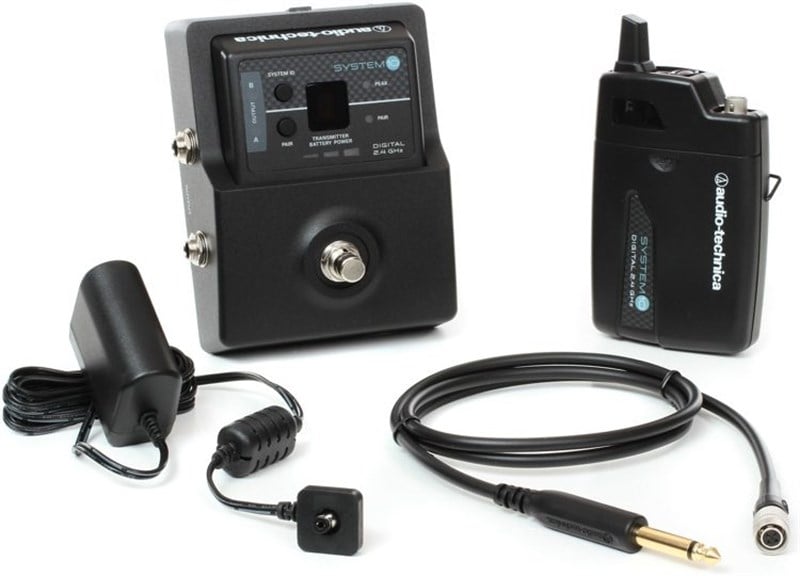

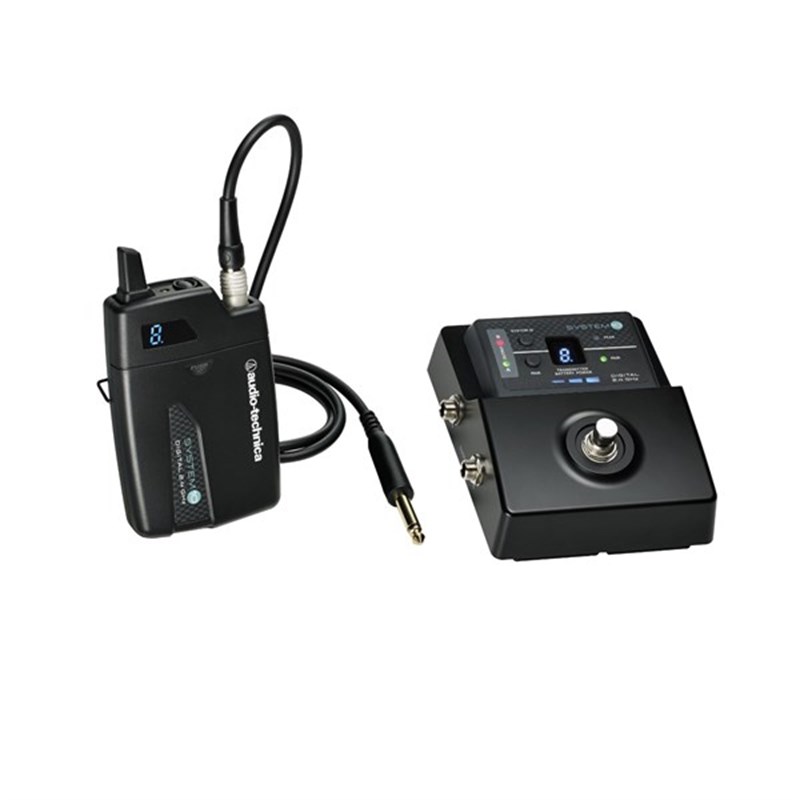

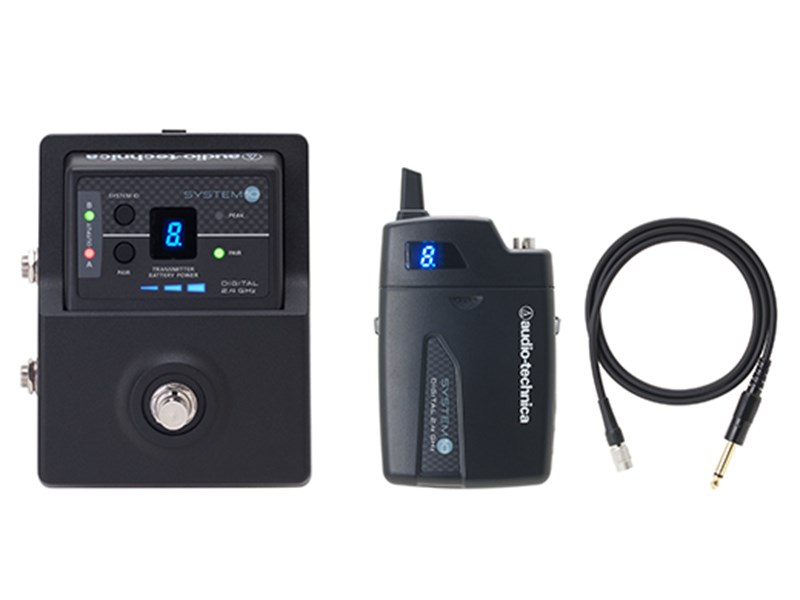

Audio Technica ATW-1501 Guitar Wireless System

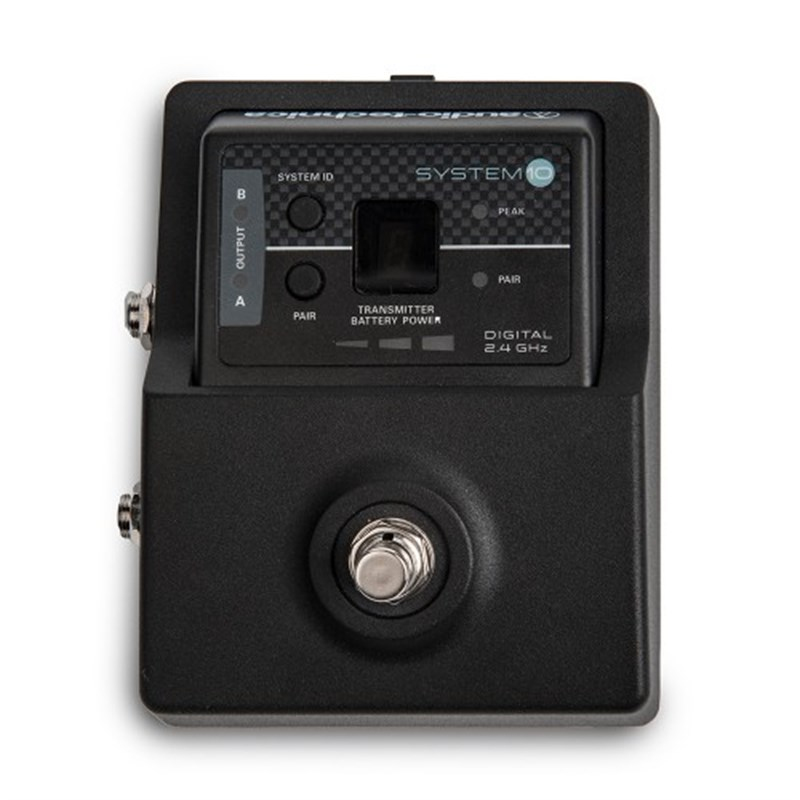

ATW-R1500 Stompbox receiver
ATW-T1001 UniPak body-pack transmitter
AT-GcW guitar cable
2.4 GHz range – licence and interference free
A-B Outputs for multiple rigs or muted tuning
Can be paired to up to 8 body-packs for multiple guitars
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 18.3 m (60') radius, 36.6 m (120') diameter typical. Open range environment with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 1/4" (6.3 mm), TRS balanced: +12 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Dimensions 101 mm (3.98") W x 44 mm (1.73") H x 130 mm (5.12") D
Weight 565g
Accessories Included Power supply, hook & loop fastener x2
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g
