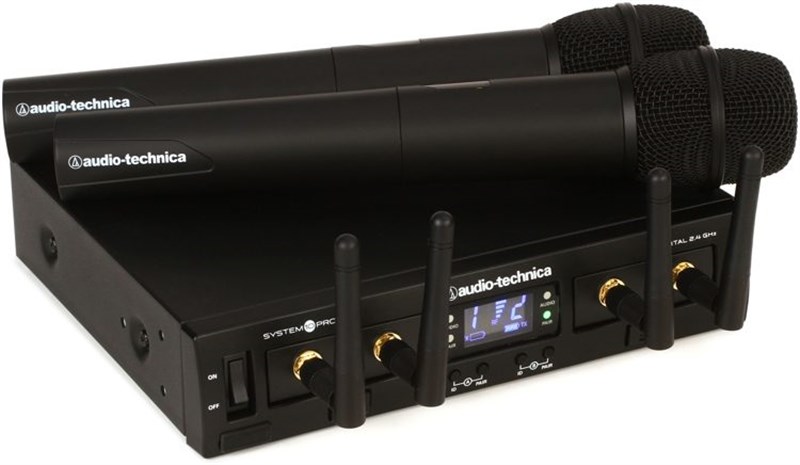

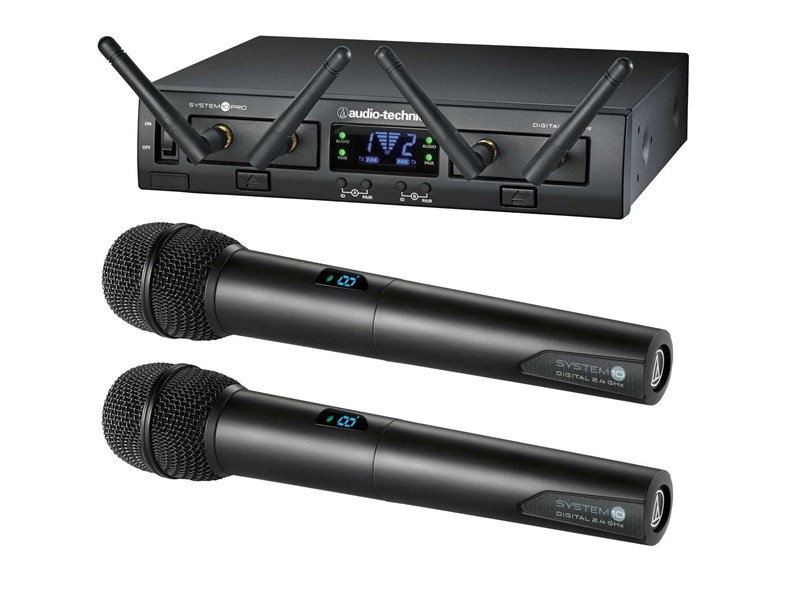

System 10 PRO - Rack-Mount Digital Wireless System
ATW-RC13 Rack-mount receiver chassis
2 x ATW-RU13 receiver unit
2 x ATW-T1002 handheld dynamic unidirectional microphone/transmitter
Operates outside TV bands
3 Levels of Diversity Assurance
Ready to go straight out of the box
2.4 GHz 24-bit / 48kHz Digital wireless system
No interference, as operates outside of DTV or 3G bands
Automatic Frequency Selection. Plug & Play. Ease of use and reliability
Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
Supplied with 2 extractable receivers in the chassis, and two handheld microphone transmitters
Possibility of 2 interchangeable receivers per chassis
Users can pair each receiver with up to 10 transmitters
2 frames or 4 receivers can fit in a 19" 1U rack
Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
No compression during transmission and reception for clear, natural sound
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 60 m (200') Open range env. with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms
Receiver
Receiving System Diversity (frequency/time/space)

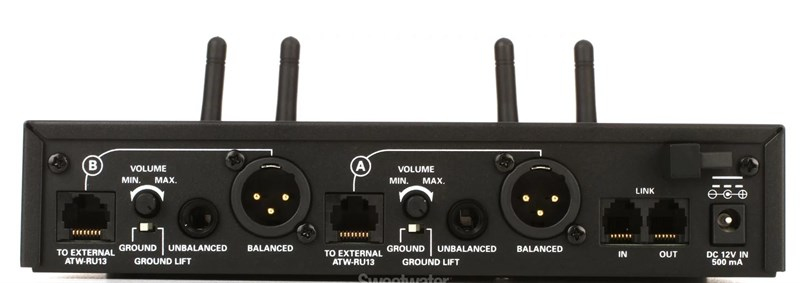

Output Connectors (Microphone) Remote Receiver Connector: RJ45
Link Connector: RJ12
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
Weight 940g
Accessories Included Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA (not included)
Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
Dimensions 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight 280g
Accessories Included AT8456a Quiet-Flex™ stand clamp
