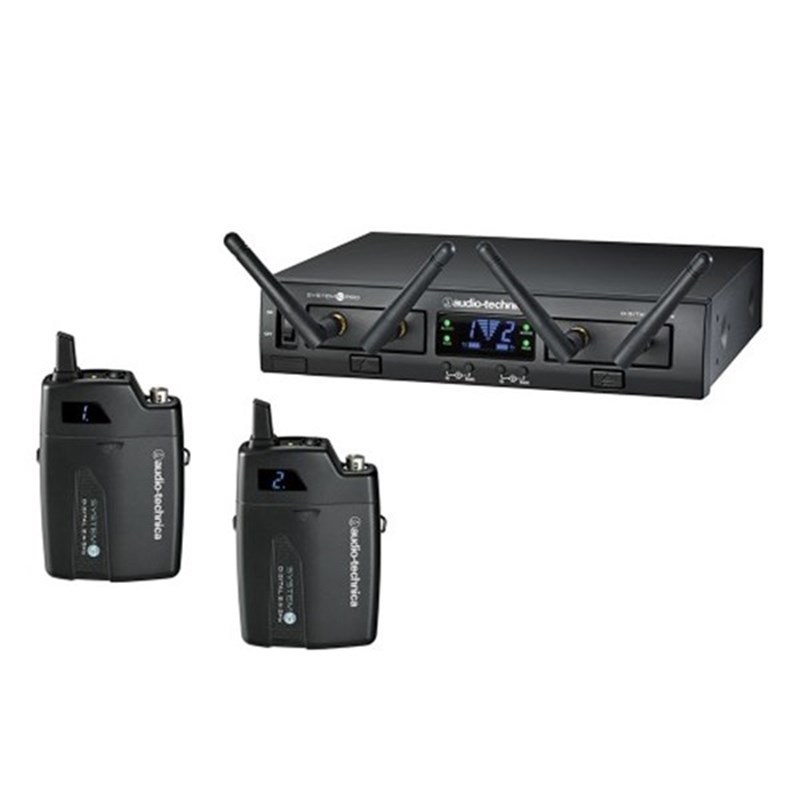

Audio Technica ATW-1311 System 10 Pro Dual Channel Bodypack System
ATW-RC13 Rack-mount receiver chassis
2 x ATW-RU13 receiver unit
2 x ATW-T1001 UniPak® transmitter
Operates outside TV bands
3 Levels of Diversity Assurance
Ready to go straight out of the box
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 60 m (200') Open range env. with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms
Receiver
Receiving System Diversity (frequency/time/space)
Output Connectors (Microphone) Remote Receiver Connector: RJ45
Link Connector: RJ12
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
Weight 940g
Accessories Included Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector,
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA
Battery Life >7 hours (alkaline) Depending on batt. type & use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g
