Fiyat : $0.00(KDV Dahil)

Microphone base for Dante™ system. Connects directly to the network via a standard Ethernet cable (RJ-45 Cat5 8P8C) - no need for expensive audio cable or soldering



Audio-Technica ATND8677 Dante Bağlantılı Masaüstü Mikrofon Standı

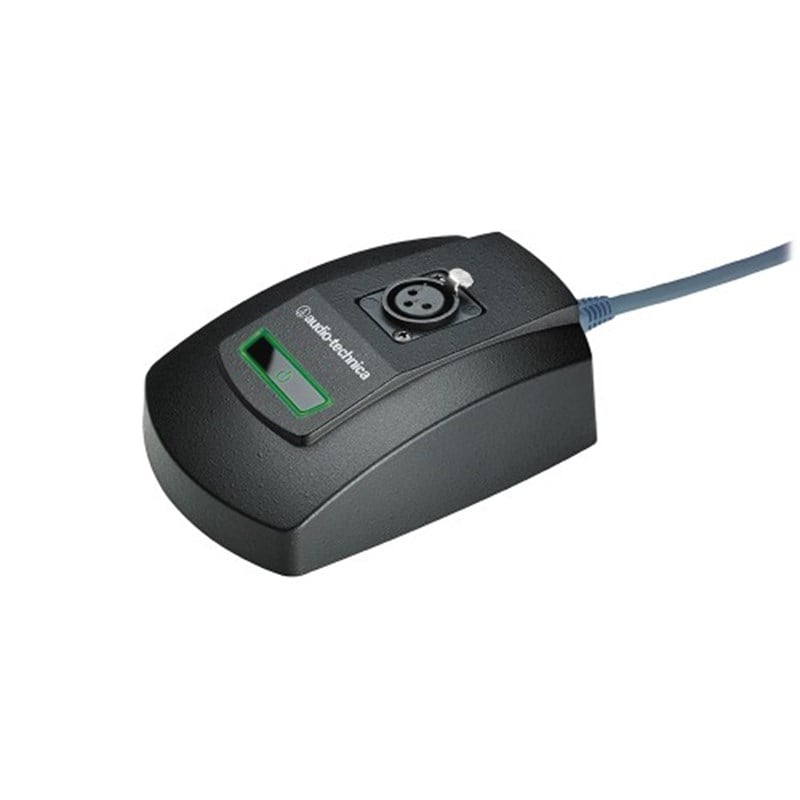

The ATND8677 is a Dante-enabled microphone desk stand for use with any gooseneck microphone with a three-pin XLRM-type output connector. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup applications. No longer relying on a standalone Dante audio interface, and benefitting from a switch and an indicator light, the ATND8677 connects directly to the audio network via a standard RJ-45 and a structured wiring port, ensuring high flexibility during installation and fast relocation.

Connects directly to Dante network via Ethernet cable
Integrated user switch controls talk/mute in Local mode
Integrated user switch triggers Dante-enabled devices in Remote mode
Powered by network PoE
Scalable across Dante’s 512 bidirectional audio channels
Touch-sensitive capacitive-type user switch







Frequency Response: 20 - 20,000 Hz
Impedance: 1.4 kO
Maximum Input Sound Level: -10 dBu @ +30 dB gain / -20 dBu @ +40 dB gain / -30 dBu @ +50 dB gain
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Switches: Local Mode: Touch-sensitive capacitive-type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off;
Low-cut filter: flat, roll-off;
Gain: +30 dB, +40 dB, +50 dB;
Phantom power: 12V DC, off
Remote Mode: Low-cut and Gain via third-party software*
Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 12V DC
Power Requirements: PoE IEEE802.3af standard
Weight: 770g
Dimensions: 133.0 mm maximum length, 93.8 mm maximum width, 46.2 mm maximum height
Output Connector: 3-pin XLRF-type
Physical level: standard Ethernet
Dante network:Connector: single RJ45 | Cable quality: Shielded CAT5 or CAT6 recommended | Transmission speed: 100 Mbps

Microphone base for Dante™ system. Connects directly to the network via a standard Ethernet cable (RJ-45 Cat5 8P8C) - no need for expensive audio cable or soldering
XLRF entry for quick and easy connection of any XLRM gooseneck microphone
Local or remote control of low-cut UniSteep® filter, red/green LED status indicator and phantom power (P12)
Local or remote control of gain (+ 30dB / + 40dB / + 50dB / Mute)
Scalable across 512 Dante™ bidirectional audio channels
Low-cut filter to reduce low-frequency ambient noise without affecting sound reproduction
Powered by the network (PoE - Power Over Ethernet)
Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
5 years guarantee
