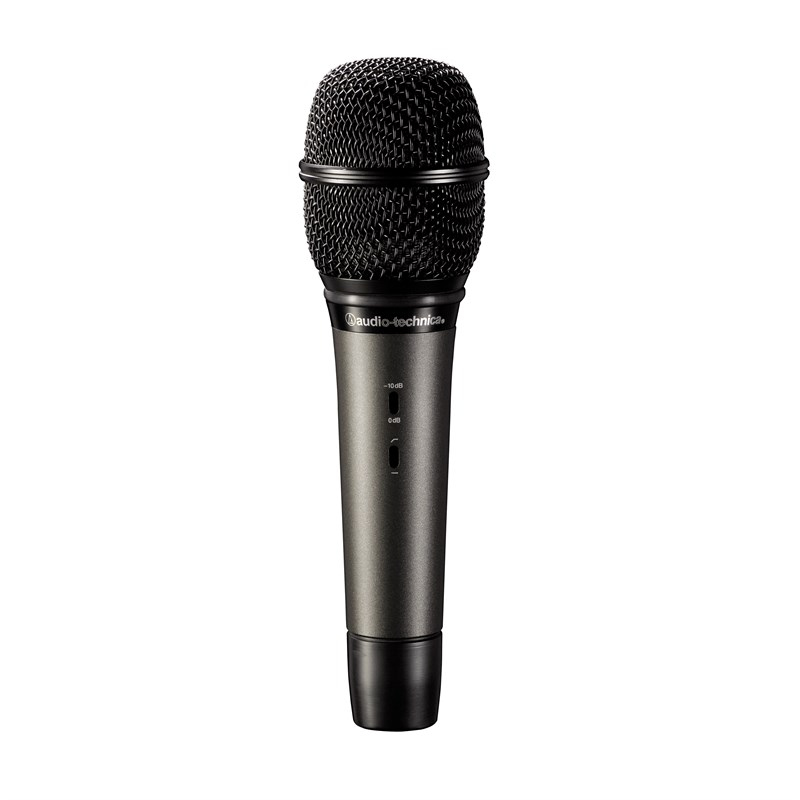

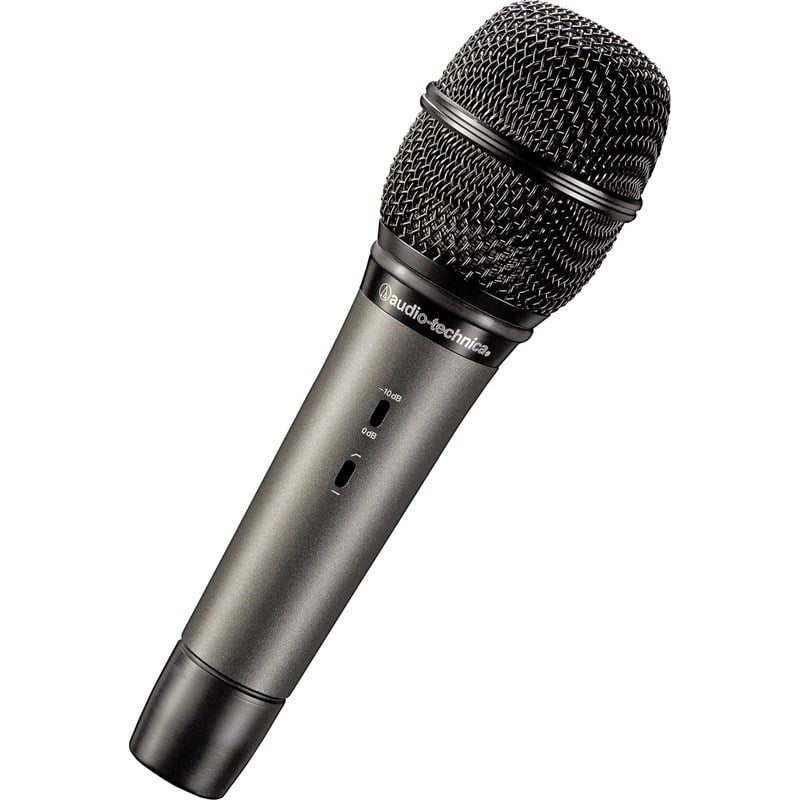

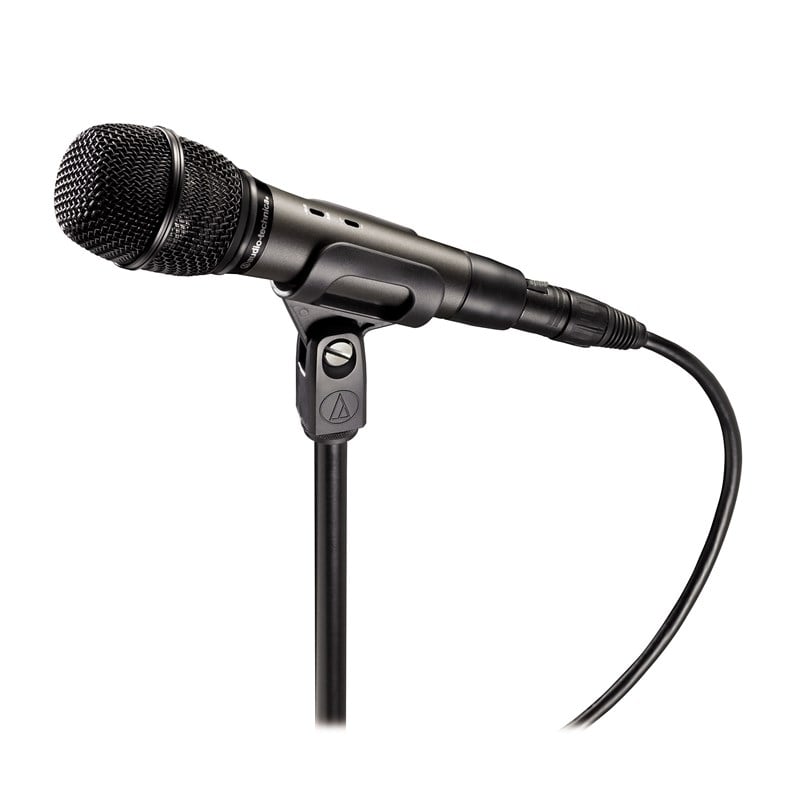

Audio Technica ATM710 Cardioid Condenser Handheld Microphone
Excels in venues with controlled stage volume or in-ear monitoring
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Superior anti-shock engineering for low handling noise
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
Condenser design for studio-quality performance
Integral 80 Hz HPF switch and 10 dB pad
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use
ELEMENT
Fixed-charge back plate permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE
200 ohms
MAXIMUM INPUT SOUND LEVEL
148 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
127 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
73 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 3.5 mA typical
SWITCHES
Flat, roll-off; 10 dB pad
WEIGHT
274 g (9.7 oz)
DIMENSIONS
179.0 mm (7.05") long,
50.0 mm (1.97") diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type

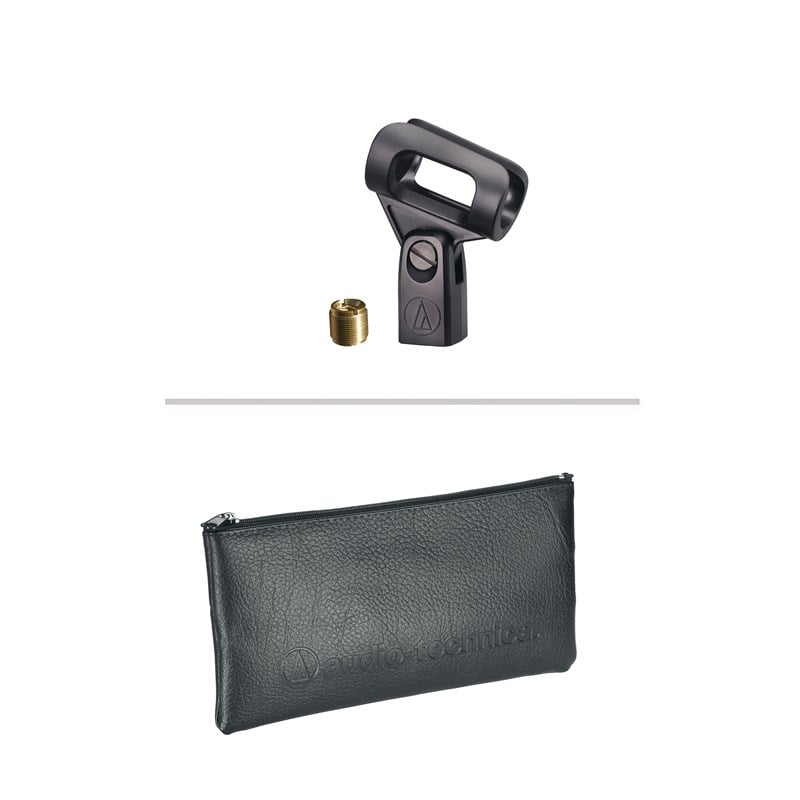

ACCESSORIES FURNISHED
AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
T6
