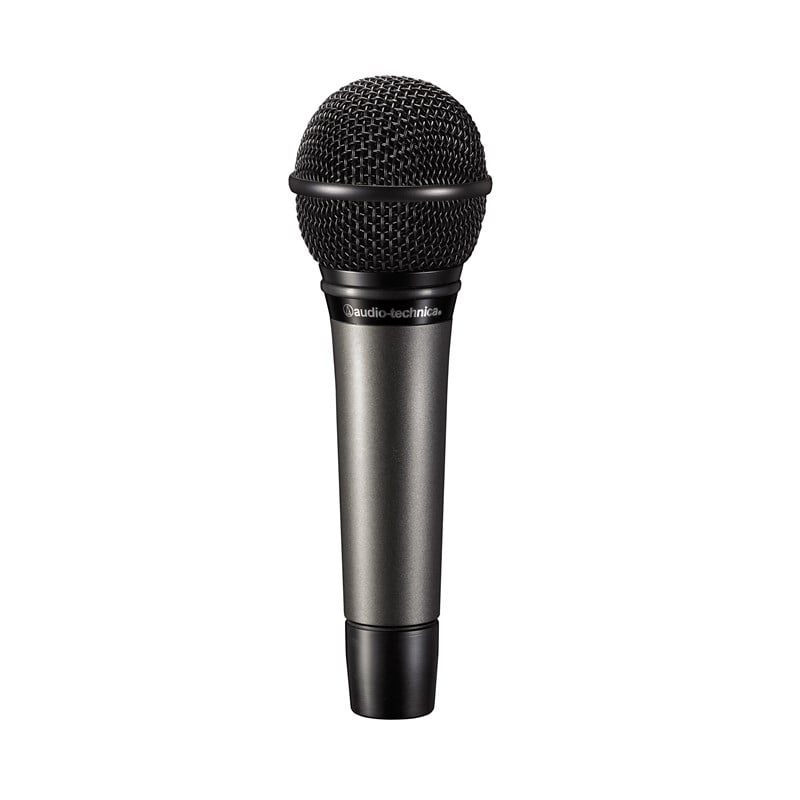

Audio Technica ATM510 Cardioid dynamic vocal microphone
Newly designed superior internal shock mounting reduces handling and stage noise
Tailored for smooth, natural vocal reproduction
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Durable performance for professional applications
Rare-earth magnet for improved output and transient response
Excellent off-axis rejection for minimum feedback
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity

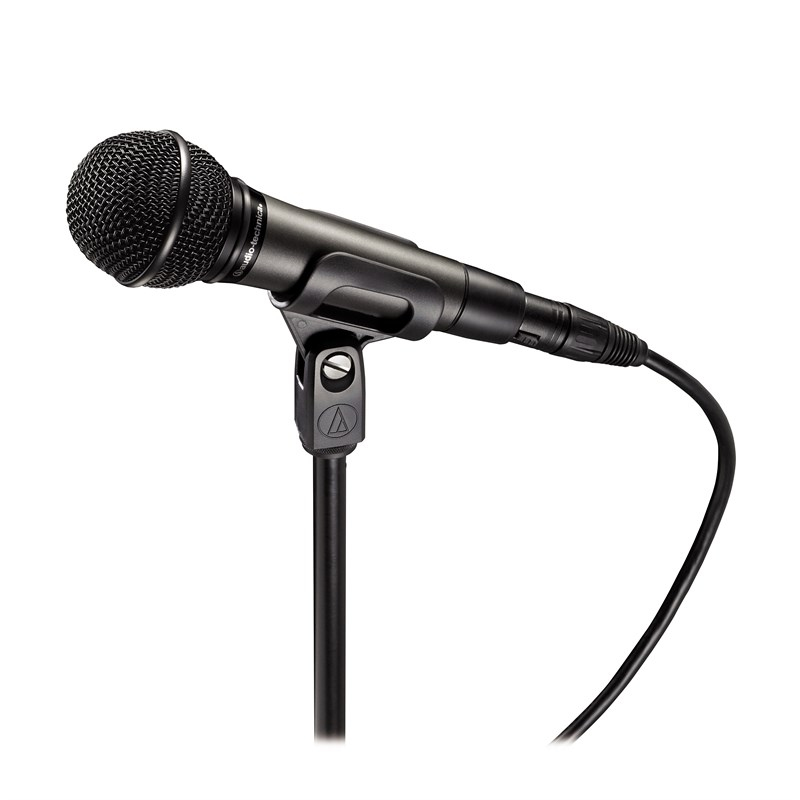

Quiet-Flex™ stand clamp provides silent, flexible microphone positioning
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use
ELEMENT
Dynamic
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
90-16,000 Hz
OPEN CIRCUIT SENSITIVITY
–55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE
300 ohms
WEIGHT
258 g (9.1 oz)
DIMENSIONS
170.0 mm (6.69") long,
53.7 mm (2.11") diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type

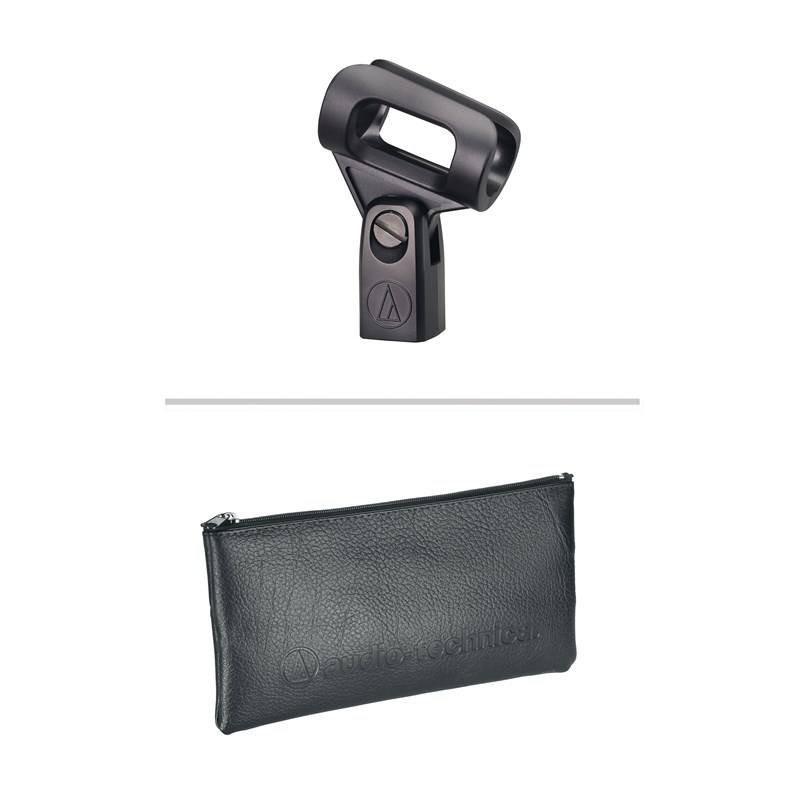

ACCESSORIES FURNISHED
AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
T6
