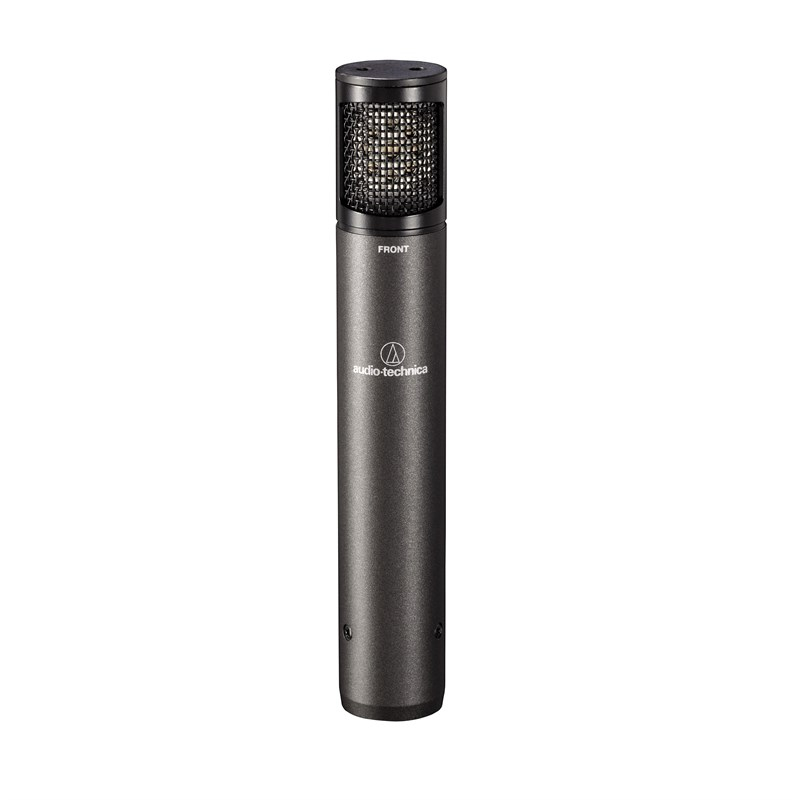

Audio Technica ATM450 Cardioid condenser side address instrument pencil microphone
Unique side-address stick design maximizes placement options with minimal obstructions

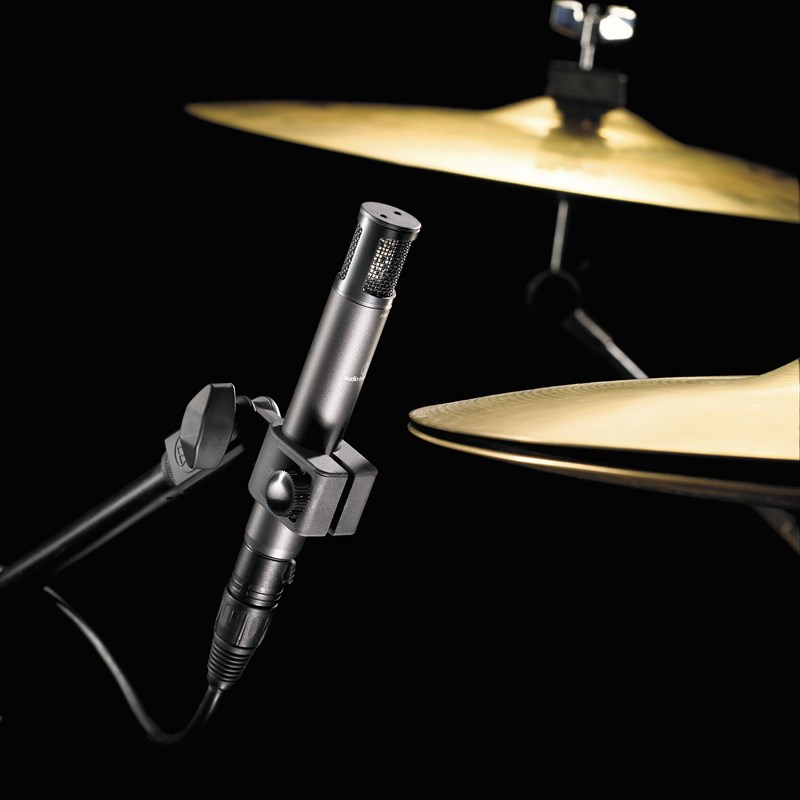

Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
Integral 80 Hz HPF switch and 10 dB pad
Durable performance for professional applications
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Rugged, all-metal design and construction for years of trouble-free use

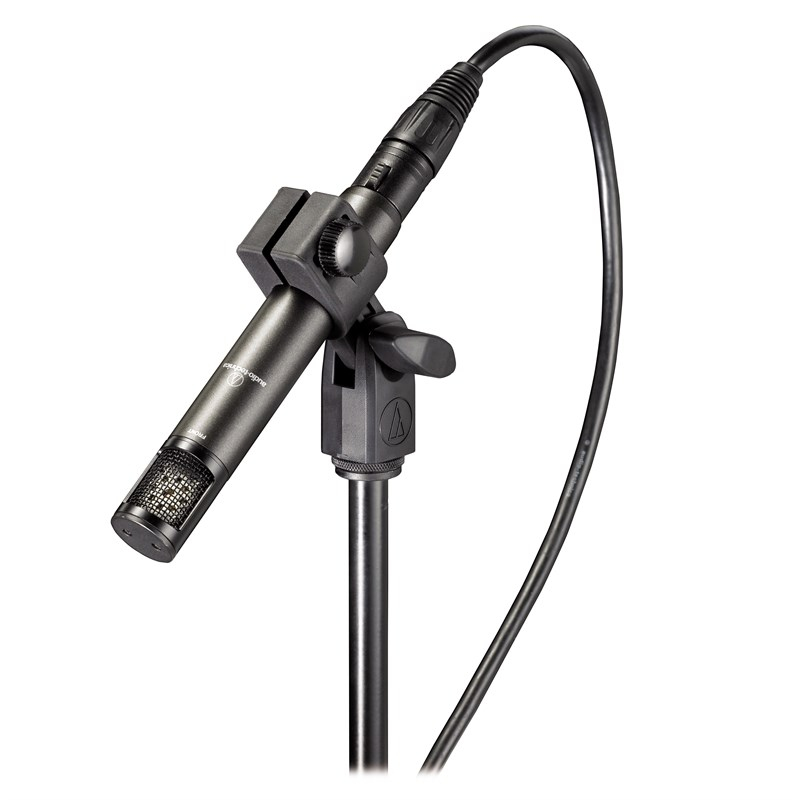

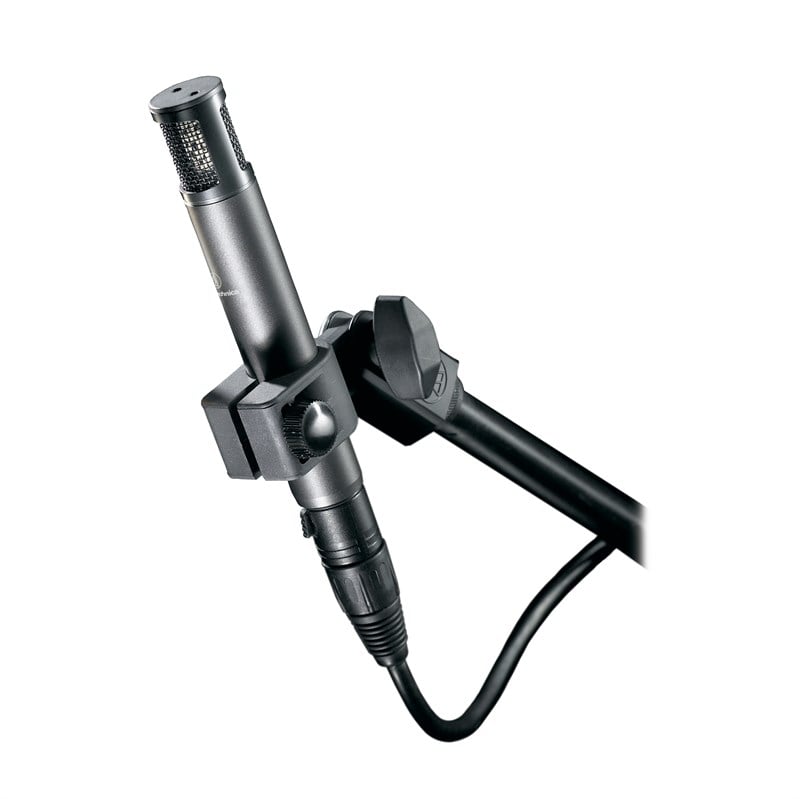

Includes isolation clamp for shock protection, secure mounting and easy positioning
ELEMENT
Fixed-charge back plate permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
–41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE
200 ohms
MAXIMUM INPUT SOUND LEVEL
152 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
127 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
69 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 3.5 mA typical
SWITCHES
Flat, roll-off; 10 dB pad
WEIGHT 98 g (3.5 oz)
DIMENSIONS
126.9 mm (5.00") long,
21.0 mm (0.83") diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type

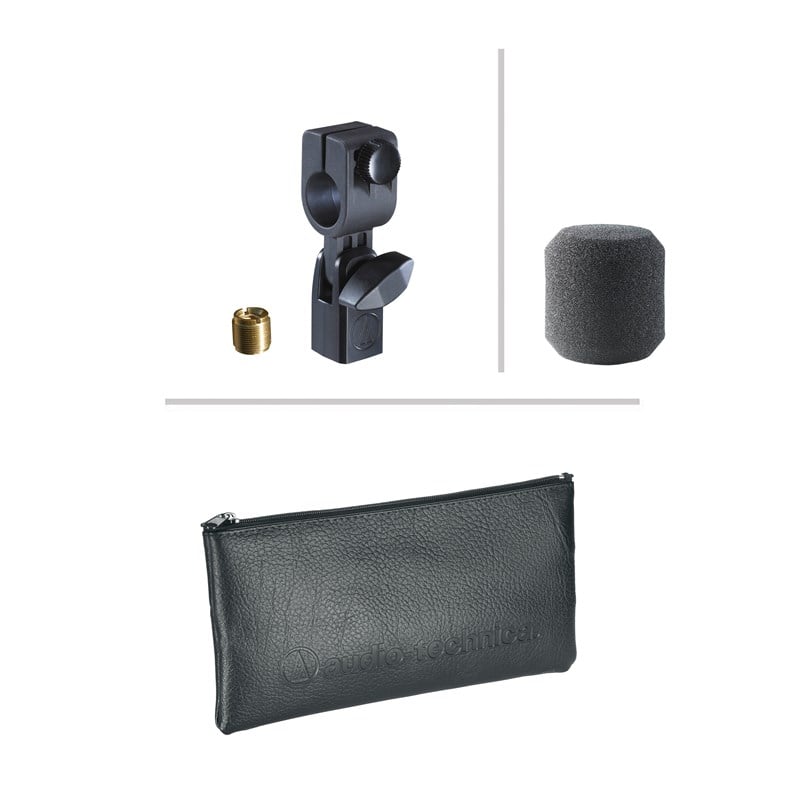

ACCESSORIES FURNISHED
AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; windscreen; soft protective pouch
AUDIO-TECHNICA CASE STYLE
S11
