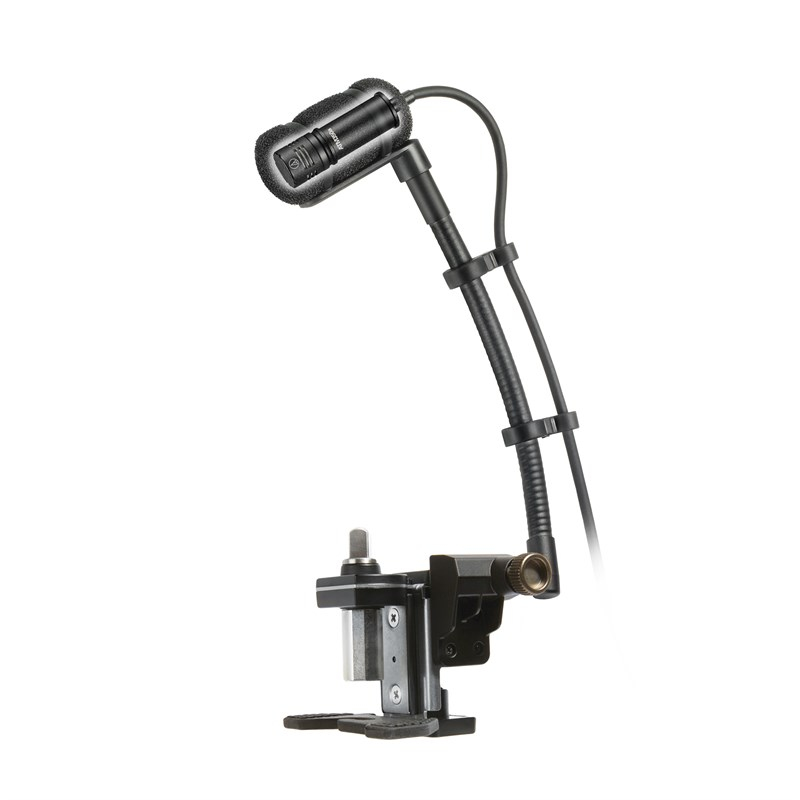

Audio Technica ATM350D Cardioid Condenser Instrument Microphone with Drum Mounting System
Low-profile mic design for minimum visibility
Crisp, clear, well-balanced microphone response, even at high SPLs
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

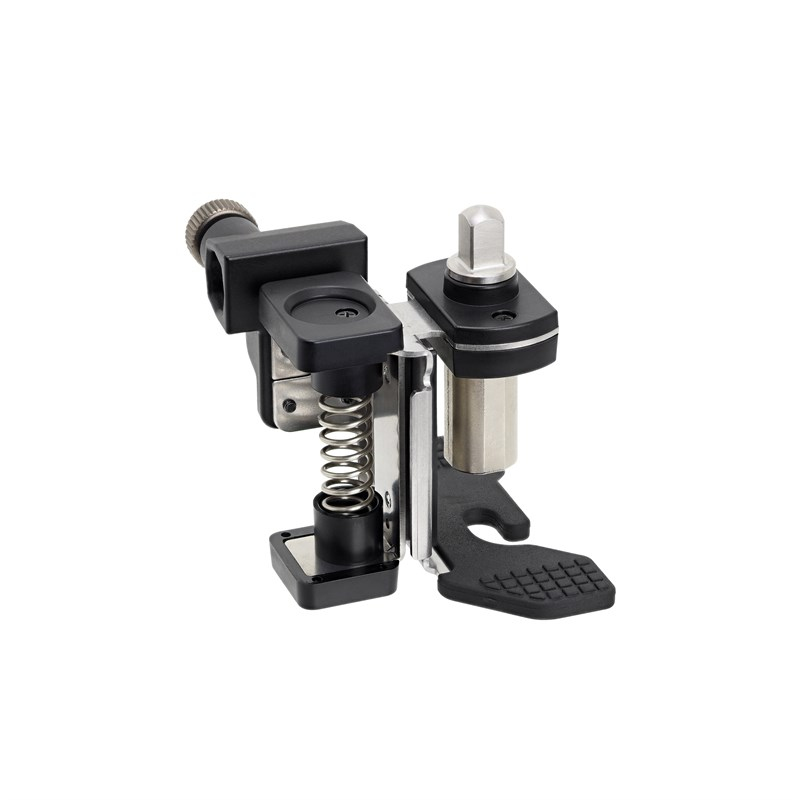

UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphone
Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Included violin mount with hook-and-loop fastener provides an additional mounting option
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE
200 ohms
MAXIMUM INPUT SOUND LEVEL
159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11– 52V DC, 3.5 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
14.5 g (0.5 oz)
WEIGHT (POWER MODULE)
90 g (3.2 oz)
DIMENSIONS (MICROPHONE)
37.8 mm (1.49'') long,
12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE)
92 mm (3.62") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS
UE-H hypercardioid (100°);
UE-O omnidirectional (360°)

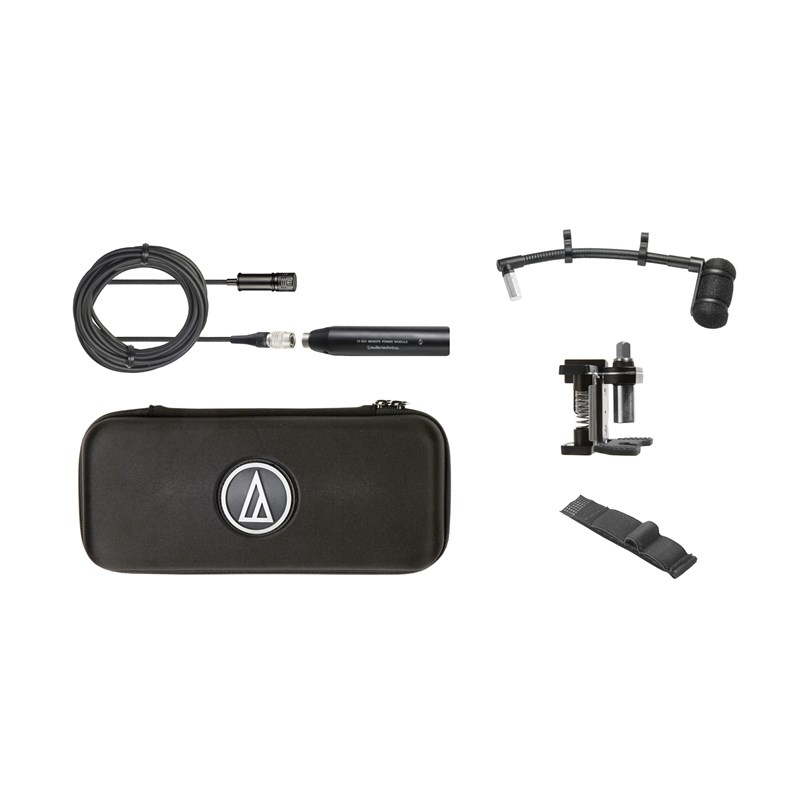

ACCESSORIES FURNISHED
ATM350a cardioid condenser microphone; AT8543 power module; AT8491D UniMount® drum mount; AT8490 UniMount® 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE
M36
