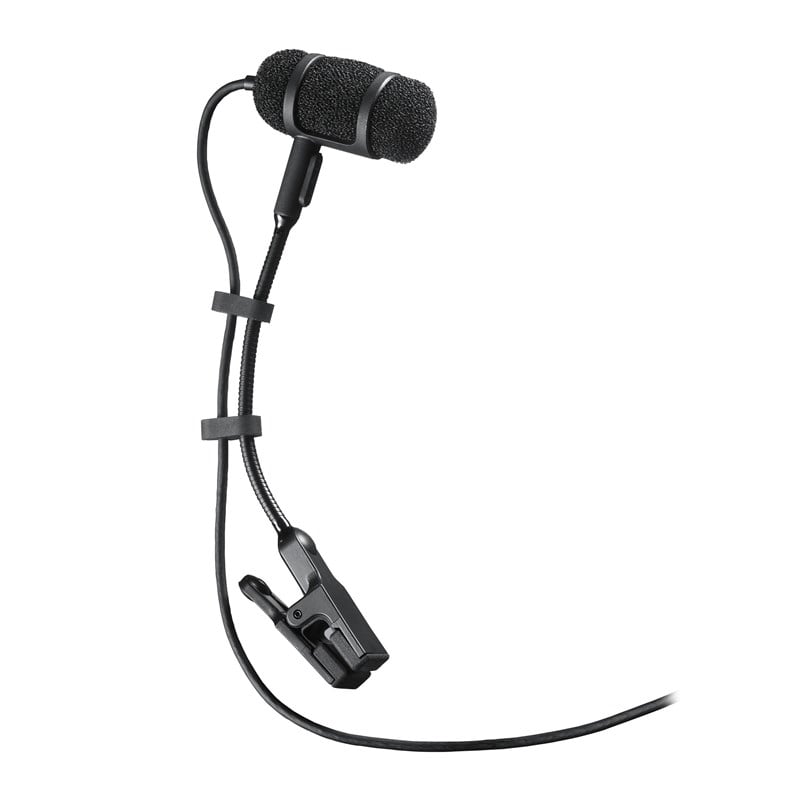

Audio Technica ATM350 Cardioid condenser clip-on microphone
Supplied with Audio-Technica’s versatile UniMount® clip and new violin mount,

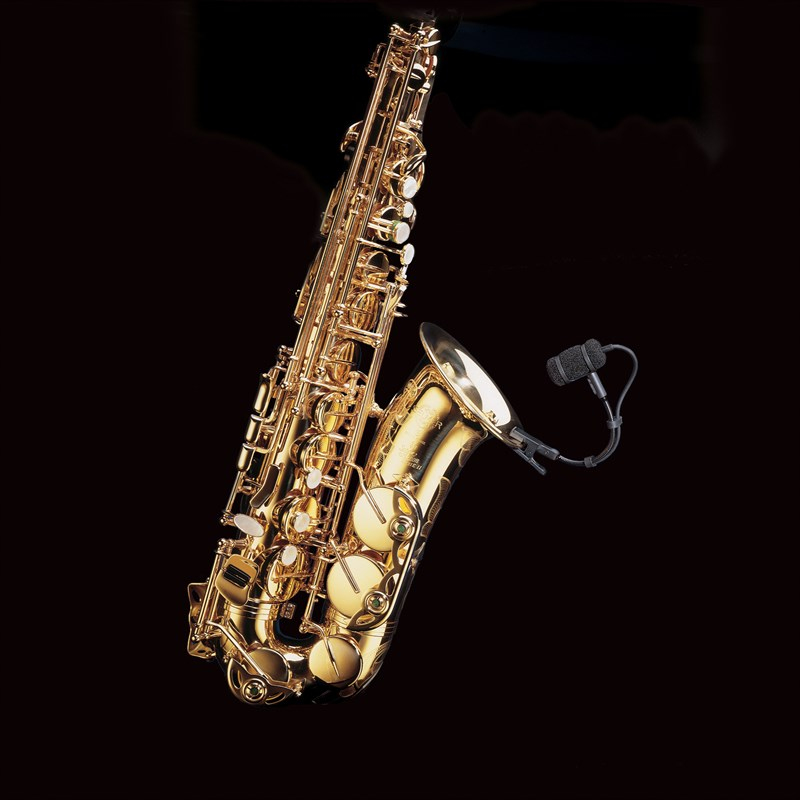

the low-profile ATM350 is an exceptional cardioid condenser microphone designed to clip to brass,

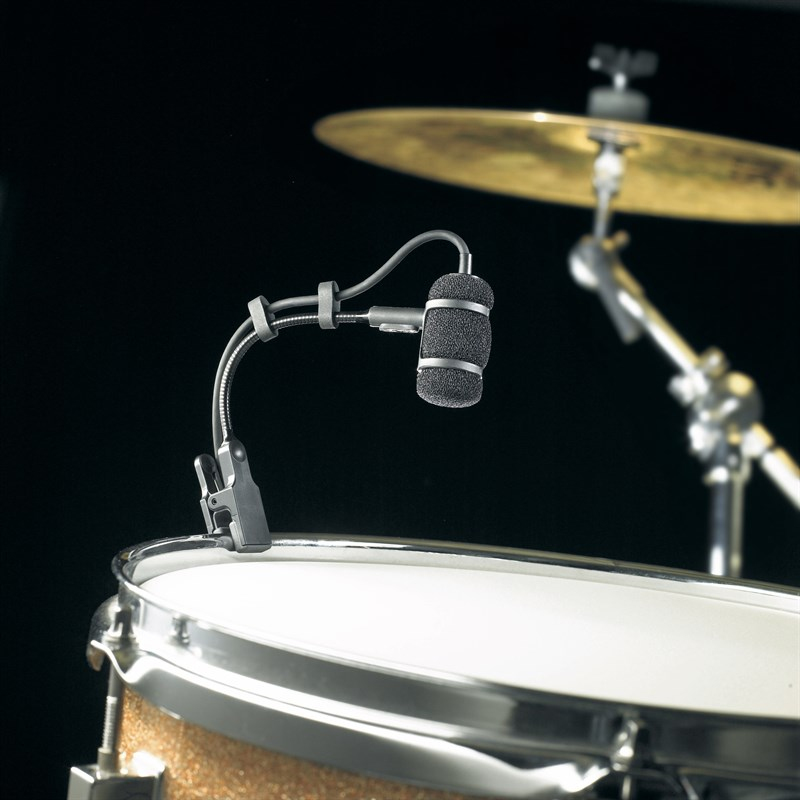

upright bass, reeds, piano, snare, toms, and violin. The microphone offers a crisp, clear,
well-balanced response, even at high SPLs. It features an integral 80 Hz hi-pass filter on the in-line power module.
Its cardioid polar pattern reduces pickup of sounds from the side and rear for effective protection against feedback.
Low-profile design for minimum visibility
UniMount® clip permits accurate positioning, provides shock resistance and protects element
Unique violin mount permits unobtrusive placement of microphone between the instrument’s bridge and tailpiece
Crisp, clear, well-balanced response, even at high SPLs
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use
ELEMENT
Fixed-charge back plate permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE
50 ohms
MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D
.
DYNAMIC RANGE (typical)
122 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 3.5 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
14.5 g (0.5 oz)
WEIGHT (POWER MODULE)
81.2 g (2.9 oz)
DIMENSIONS (MICROPHONE)
37.8 mm (1.49") long,
12.2 mm (0.48") diameter
DIMENSIONS (POWER MODULE)
92.9 mm (3.66") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
4.0 m (13.1') long (permanently attached to microphone),
3.2 mm (0.13") diameter,
2-conductor shielded cable with TA3F-type connector

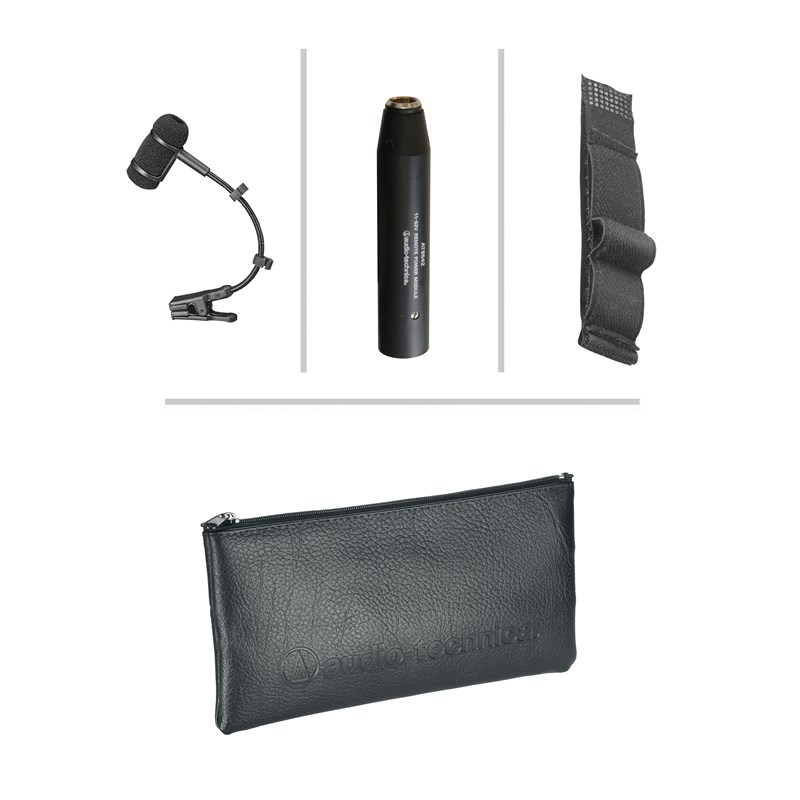

ACCESSORIES FURNISHED
AT8542 power module;
AT8418 UniMount® microphone instrument mount;
AT8468 violin mount; soft protective pouch
AUDIO-TECHNICA CASE STYLE
M36
