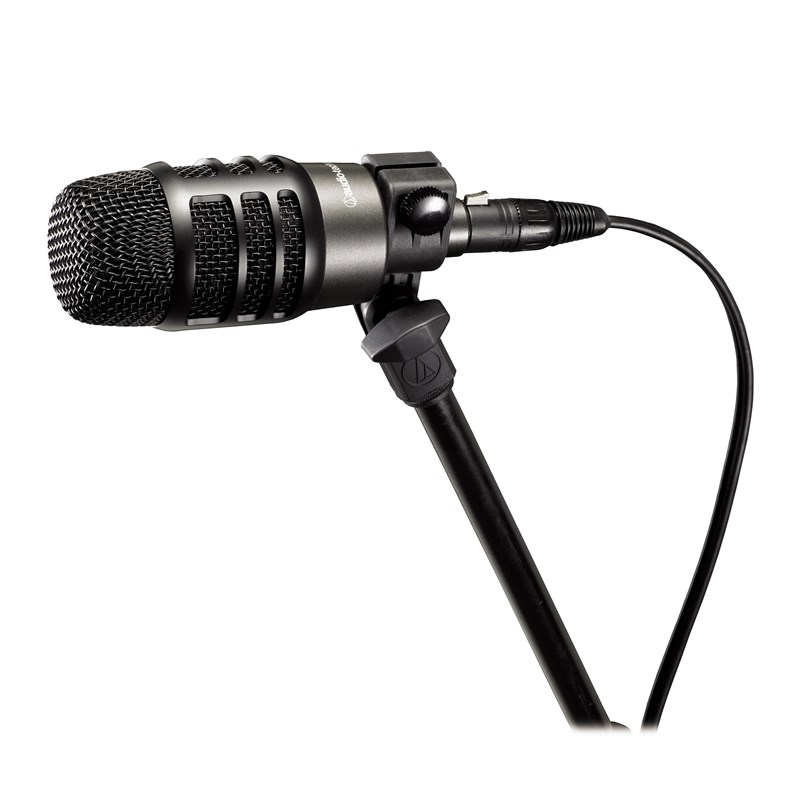

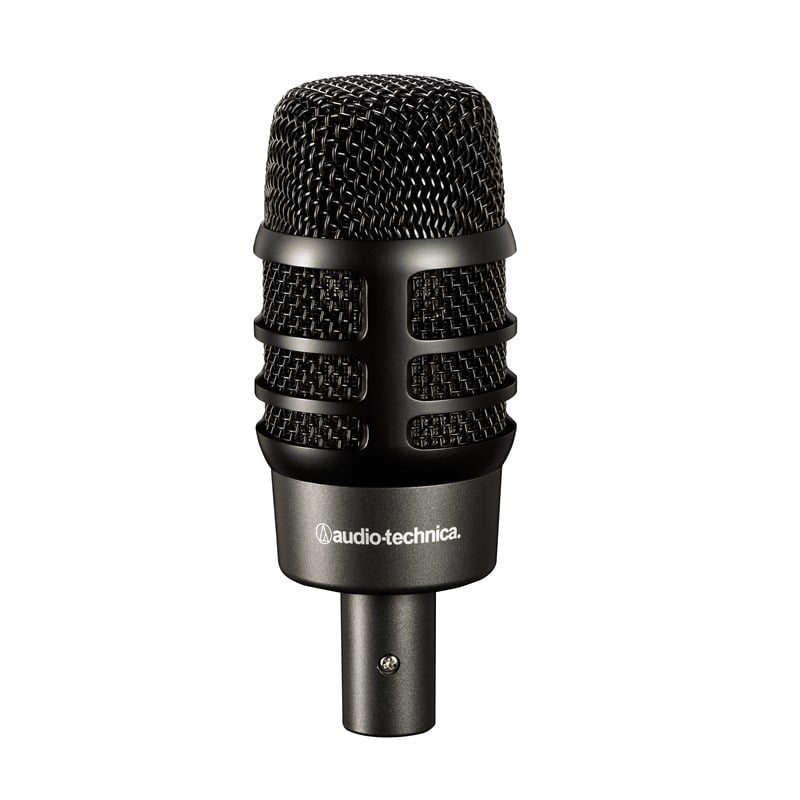

Audio Technica ATM250DE Dual-element (dynamic/condenser) cardioid instrument microphone

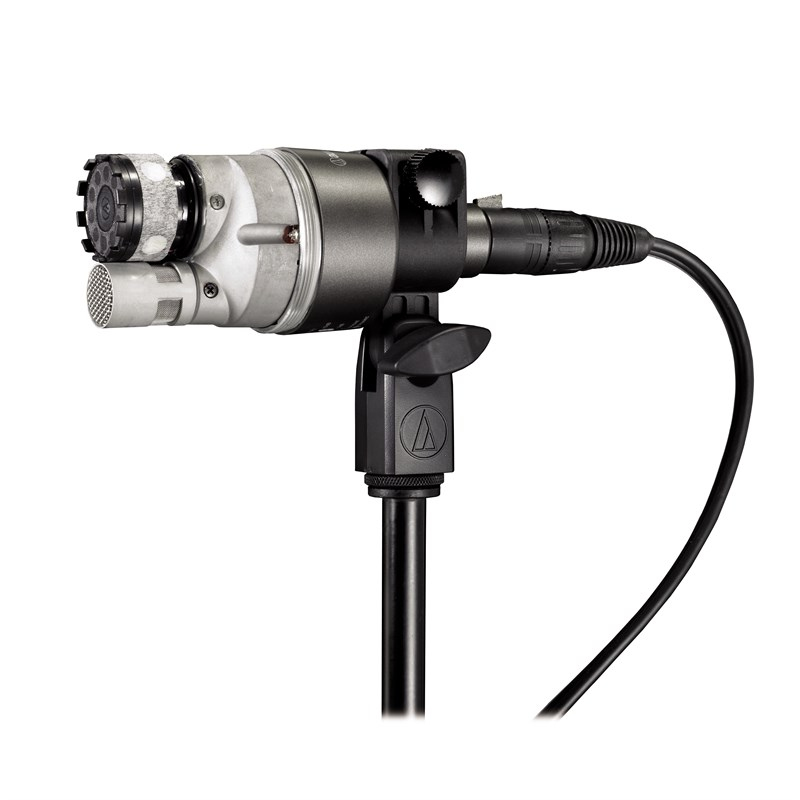

Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones

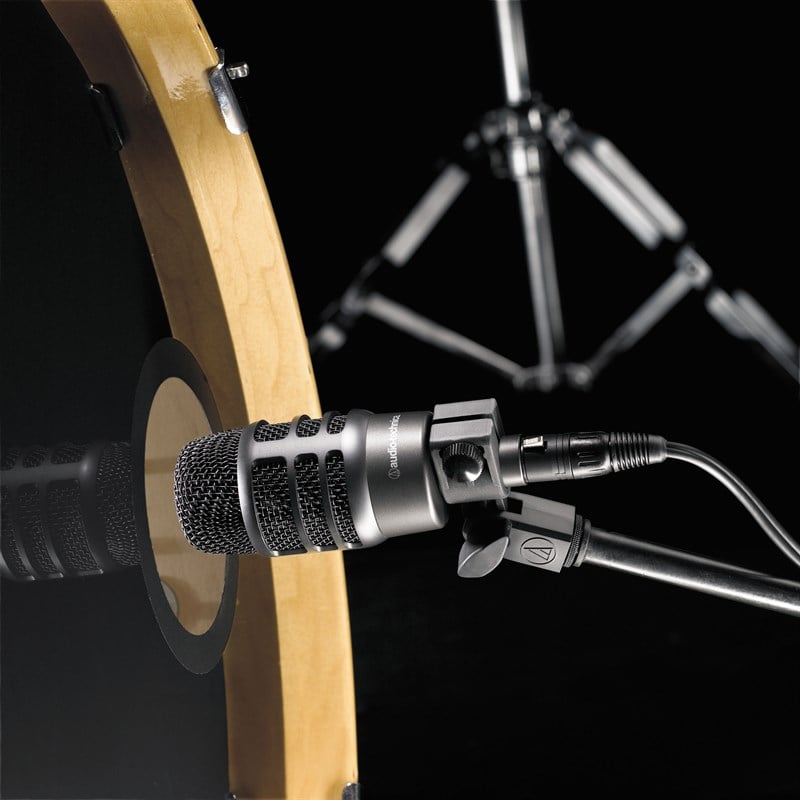

Perfect for kick drum, guitar amps, percussion and other instruments
Integral 80 Hz HPF switch and 10 dB pad (condenser element)
Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
Corrosion-reistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use
ELEMENTS
Condenser, dynamic
POLAR PATTERNS
Cardioid (condenser)
Hypercardioid (dynamic)
FREQUENCY RESPONSE
40-20,000 Hz (condenser)
40-15,000 Hz (dynamic)
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave (condenser)
OPEN CIRCUIT SENSITIVITY
–49 dB (3.5 mV) re 1V at 1 Pa (condenser)
–53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
IMPEDANCE
50 ohms (condenser)
600 ohms (dynamic)
MAXIMUM INPUT SOUND LEVEL
148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
DYNAMIC RANGE (typical)
122 dB, 1 kHz at Max SPL (condenser)
SIGNAL-TO-NOISE RATIO
68 dB, 1 kHz at 1 Pa (condenser)
PHANTOM POWER REQUIREMENTS
11-52V DC, 3.5 mA typical (condenser)
SWITCHES
Flat, roll-off; 10 dB pad (condenser only)
WEIGHT
320 g (11.3 oz)
DIMENSIONS
143.6 mm (5.65") long,
55.0 mm (2.17") diameter
OUTPUT CONNECTOR
Integral 5-pin XLRM-type
CABLE
5.0 m (16.5') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors

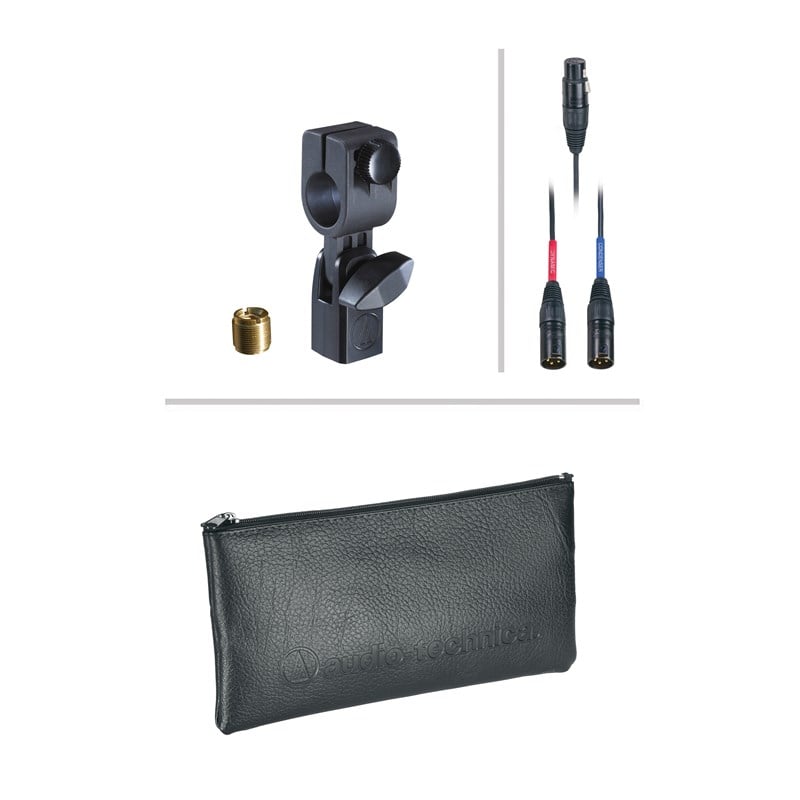

ACCESSORIES FURNISHED
AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
R9
