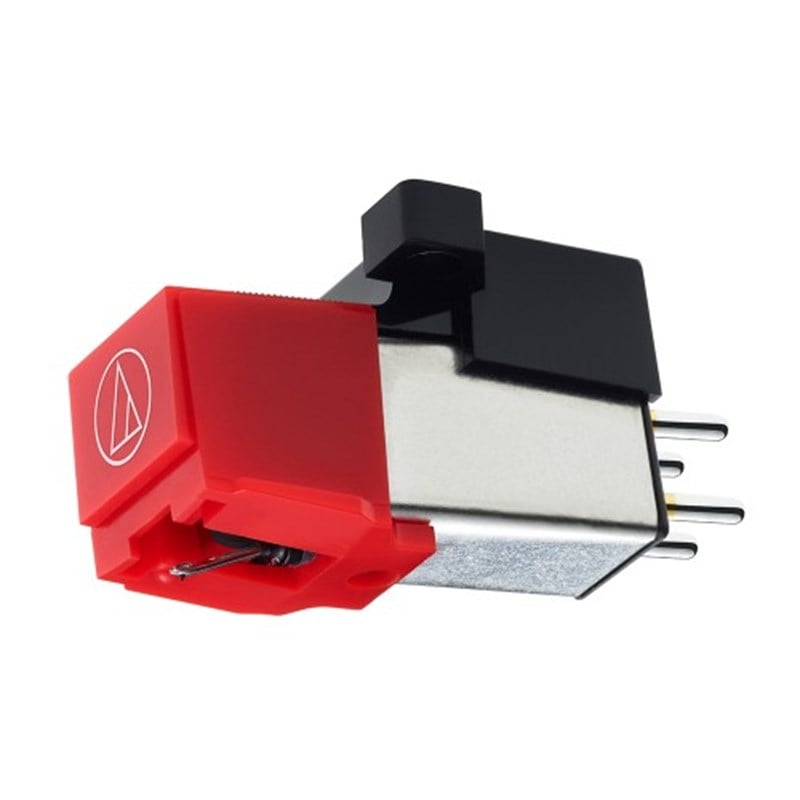

Audio-Technica AT91R Elmas Uçlu Manyetik Stereo Pikap İğnesi
Audio-Technica AT91R Elmas Uçlu Manyetik Stereo Pikap İğnesi

Audio-Technica AT91R Elmas Uçlu Manyetik Stereo Pikap İğnesi

İndirim Oranı : %41 İndirim
Fiyat : $71.12(KDV Dahil)
İndirimli : $41.83(KDV Dahil)

Dual Moving Magnet stereo Phono cartridge with conical Diamond Stylus



Audio-Technica AT91R Elmas Uçlu Manyetik Stereo Pikap İğnesi



The AT91R is a logical improvement of the popular AT91 phono cartridge, featuring an aluminium cantilever used on higher performance cartridges offers a product presenting excellent value for money.

Features include Dual V Mount magnet design and conical diamond stylus. The dual V Mount magnet configuration delivers excellent channel separation and low distortion resulting in outstanding tonal quality. As with all the AT90 Series cartridges the AT91R features ½” geometry and can be mounted on virtually any tonearm or headshell. The AT91R has been chosen by our engineers as the standard cartridge supplied on the Audio-Technica turntable AT-LP3.

Conical diamond stylus
Excellent channel separation
Low distortion for outstanding tonal quality
Excellent value for money
Upgraded version of the AT91 cartridge featuring an aluminium cantilever

Type: VM Stereo Dual Magnet
Mounting: Half inch
Frequency Response: 20 - 20,000 Hz
Channel Separation: 18 dB (1 kHz)
Output Channel Balance: 2.5 dB (1 kHz)
Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 20°
Vertical Tracking Force Range: 1.5 - 2.5 g
Stylus Shape: Conical
Stylus Size: 0.6 mil

Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Inductance: 400 mH (1 kHz)
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 6.5 x 10 – 6 cm / dyne (100 Hz)
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 5.0 g
Dimensions: 17.2 x 16.8 x 31.0 ( H x W x D mm)




Kullanım Kılavuzu
