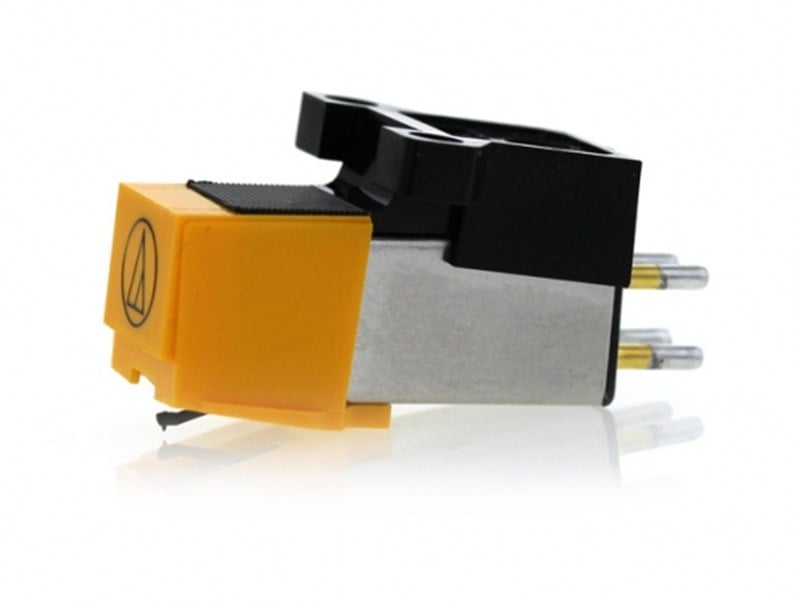

Audio Technica AT91 Replacement Stylus for AT91
Features a conical stylus
Robust housing for reliable, long lasting performance
Recommended by industry professionals
The go-to cartridge for entry level systems and older record players
Type VM Dual Magnet
Mounting Half-inch
Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB at 1kHz
Output Channel Balance 2.5dB
Output Voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20°
Vertical Tracking Force Range 1.5 - 2.5g (standard 2.0g)
Stylus Shape Conical
Stylus Size 0.6 mil
Stylus Construction Bonded Round Shank
Cantilever Carbon Fibre Reinforced ABS
Coil Inductance 400mH (1kHz)
Static Compliance 20x10-6cm/dyne
Dynamic Compliance 6.5x10-6cm/dyne (100Hz)
Recommended Load Impedance 47,000 ohms
Recommended Load Capacitance 100-200 pF
Weight 5.7 g
Replacement Stylus ATN91
Accessories Included Cartridge installation slotted screws 9.0 mm (0.35”) × 2 and 6.0 mm (0.24”) × 2, Washer × 2, Round nut × 2
