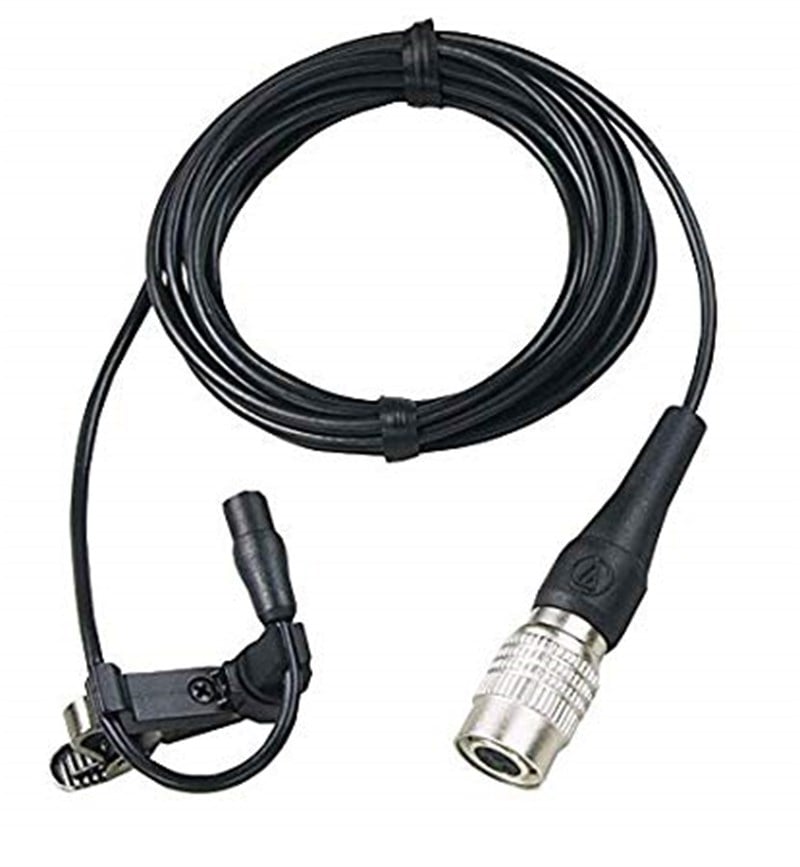

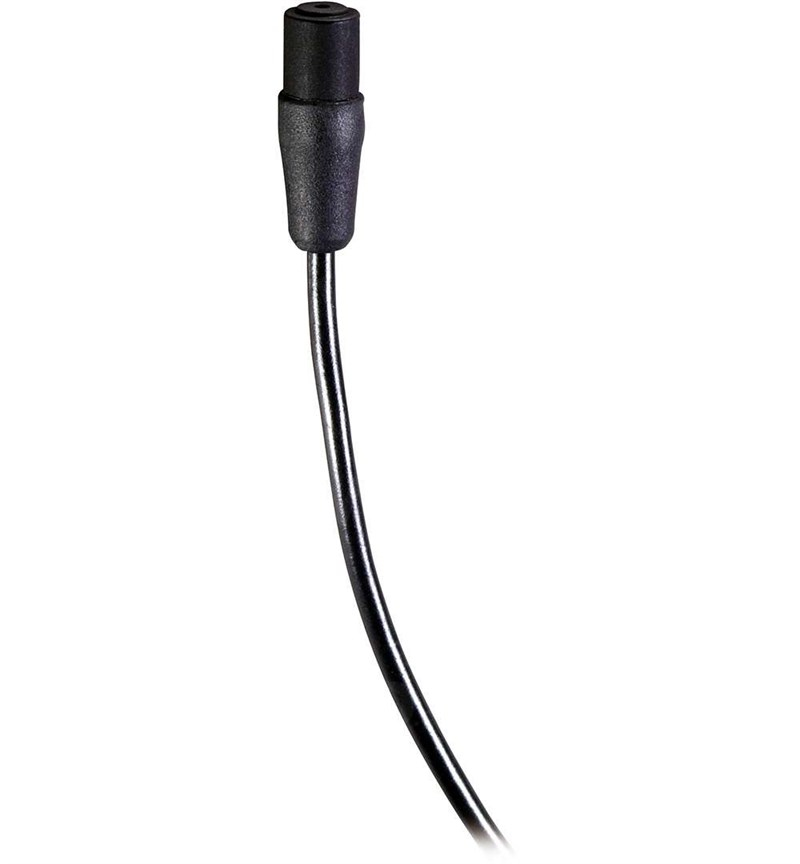

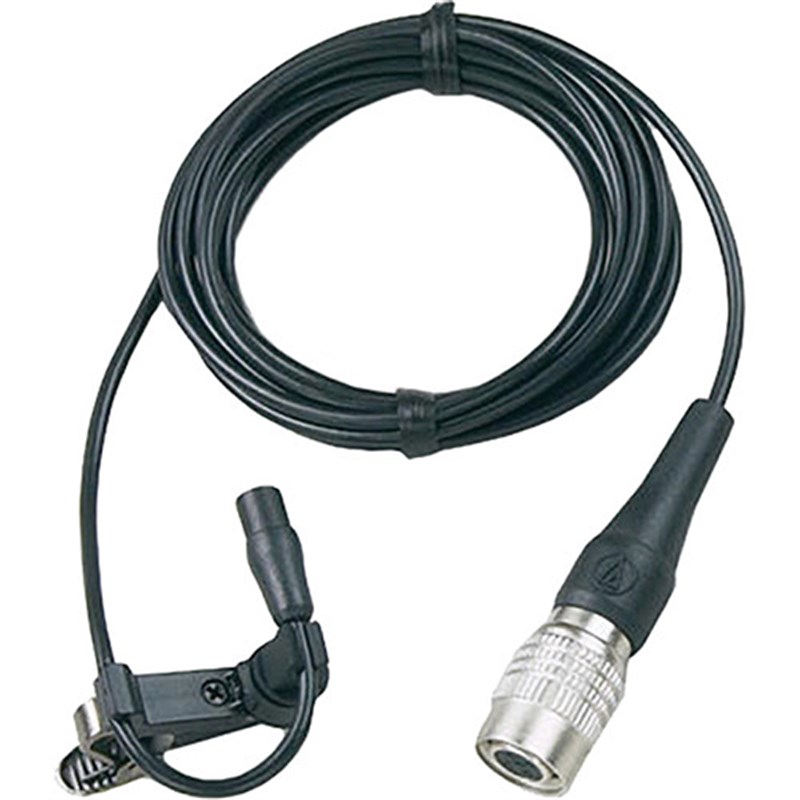

Audio Technica AT899CW Kardioid Kondenser Subminyatür Yaka Mikrofonu
Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and houses of worship
Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
Operates on battery or phantom power
All wireless models available in either low-reflectance black or beige
Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, element covers, interchangeable single and double mic holders
Accessories available separately include complete accessory kits, clothing clips, three-pack element covers and three-pack windscreens
9.8' (3.0 m) cable permanently attached to mic, TA3F connector at power module
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
less power module; 55" (1.4 m) cable terminated with a locking 4-pin connector for use with Audio-Technica wireless systems featuring cW-style connector
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Omnidirectional
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
Phantom: -43 dB (7.0 mV) re 1V at 1 Pa
Battery:
-46 dB (5.0 mV) re 1V at 1 Pa
IMPEDANCE
Phantom: 200 ohms
Battery:
250 ohms
MAXIMUM INPUT SOUND LEVEL
Phantom: 138 dB SPL, 1 kHz at 1% T.H.D.
Battery:
116 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom:
108 dB, 1 kHz at Max SPL
Battery:
86 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
BATTERY TYPE
1.5V AA/UM3
BATTERY CURRENT / LIFE
0.4 mA / 1200 hours typical (alkaline)
SWITCH
Flat, roll-off (recessed)
WEIGHT (MICROPHONE)
0.02 oz (0.5 g)
WEIGHT (POWER MODULE)
3.6 oz (102 g)
DIMENSIONS (MICROPHONE)
0.63" (16.0 mm) long,
0.20" (5.0 mm) diameter
DIMENSIONS (POWER MODULE)
5.71" (145.0 mm) long,
0.83" (21.0 mm) diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
9.8' (3.0 m) long (permanently attached to microphone),
0.08" (2.0 mm) diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module
ACCESSORIES FURNISHED
AT8537 power module; AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two element covers; two windscreens; battery; protective carrying case
AUDIO-TECHNICA CASE STYLE
M29
