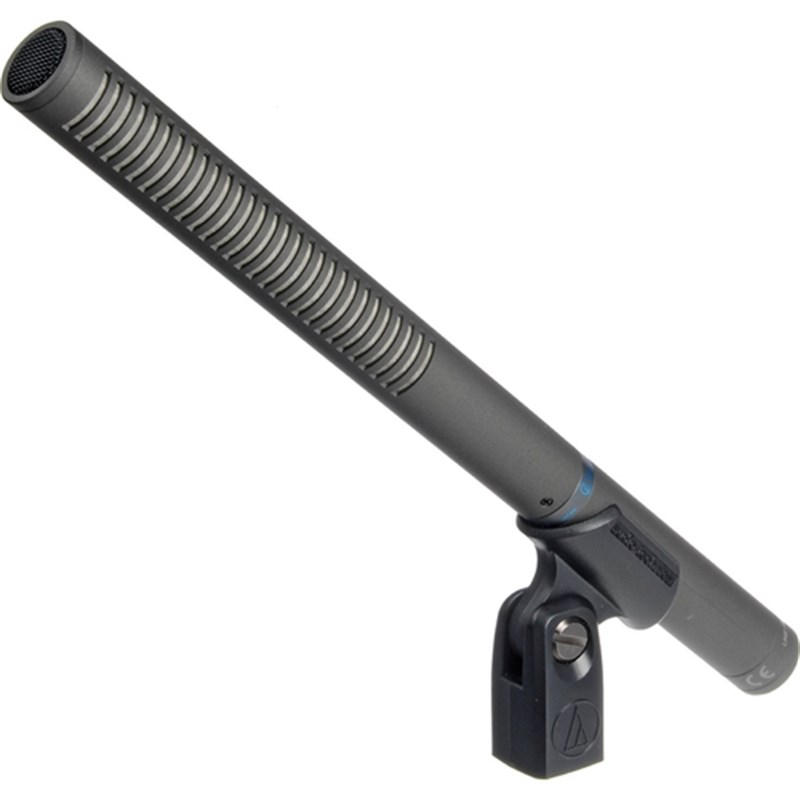

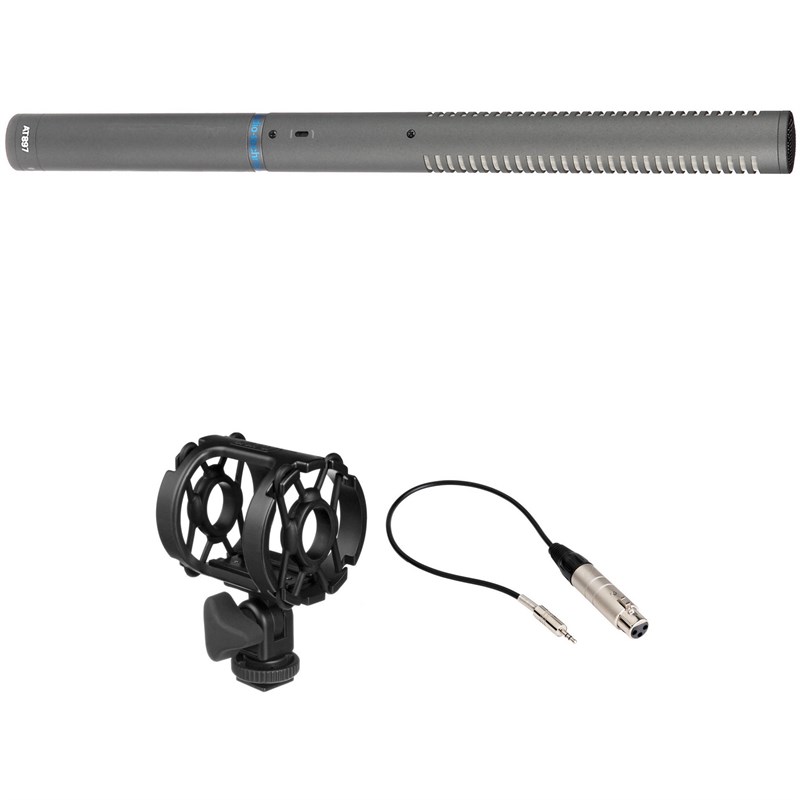

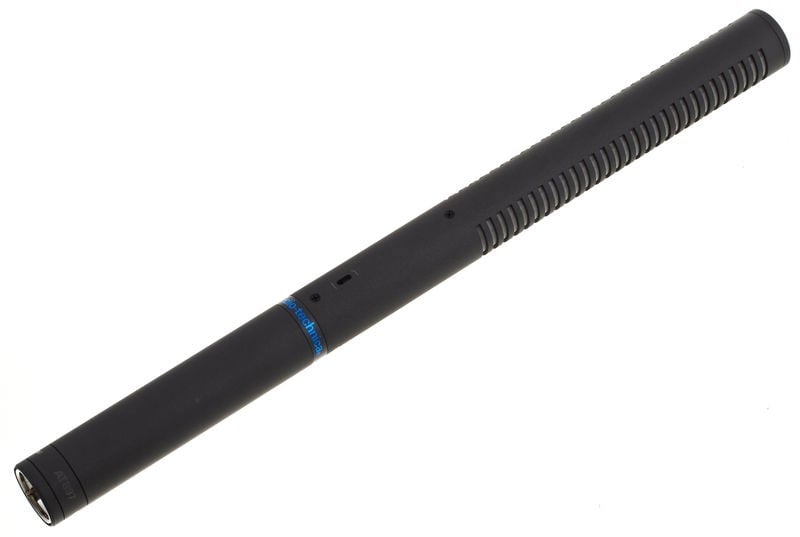

Audio Technica AT897 279mm long shotgun microphone
Designed for video production and broadcast (ENG/EFP) audio acquisition
Short length (11") ensures mic stays out of the shot -- even when used with compact digital cameras
Smooth, natural-sounding on-axis audio quality
Provides the narrow acceptance angle desirable for long-distance sound pickup
Excellent sound rejection from the sides and rear of mic
Switchable low-frequency roll-off
Operates on battery or phantom power
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Line + gradient
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
Phantom: -40 dB (10.0 mV) re 1V at 1 Pa
Battery: -41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE
Phantom: 200 ohms
Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL
Phantom: 129 dB SPL, 1 kHz at 1% T.H.D.
Battery: 115 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
Phantom: 112 dB, 1 kHz at Max SPL
Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
BATTERY TYPE
1.5V AA/UM3
BATTERY CURRENT / LIFE
0.4 mA / 1200 hours typical (alkaline)
SWITCH
Flat, roll-off (recessed)
WEIGHT
5.1 oz (145 g)
DIMENSIONS
10.98" (279.0 mm) long,
0.83" (21.0 mm) diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED
AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 windscreen; battery; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case
AUDIO-TECHNICA CASE STYLE
SG2
