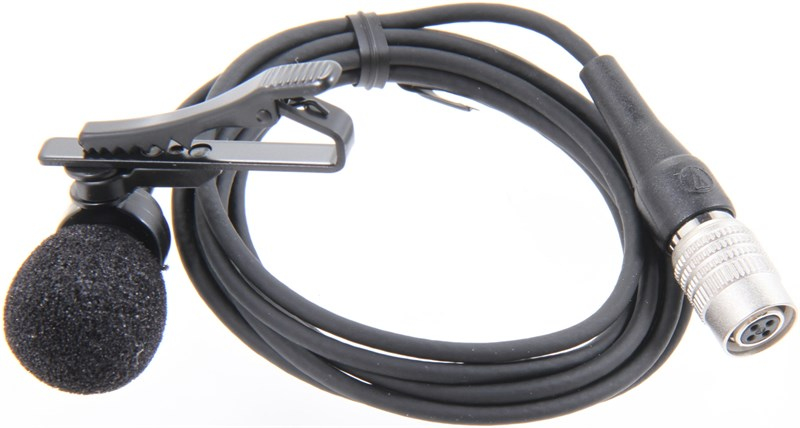

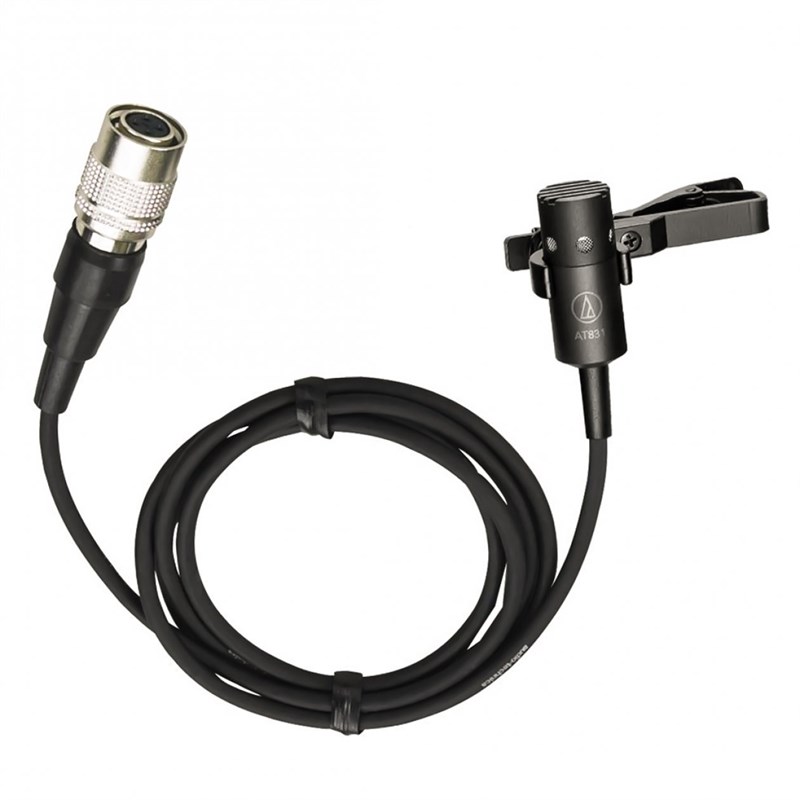

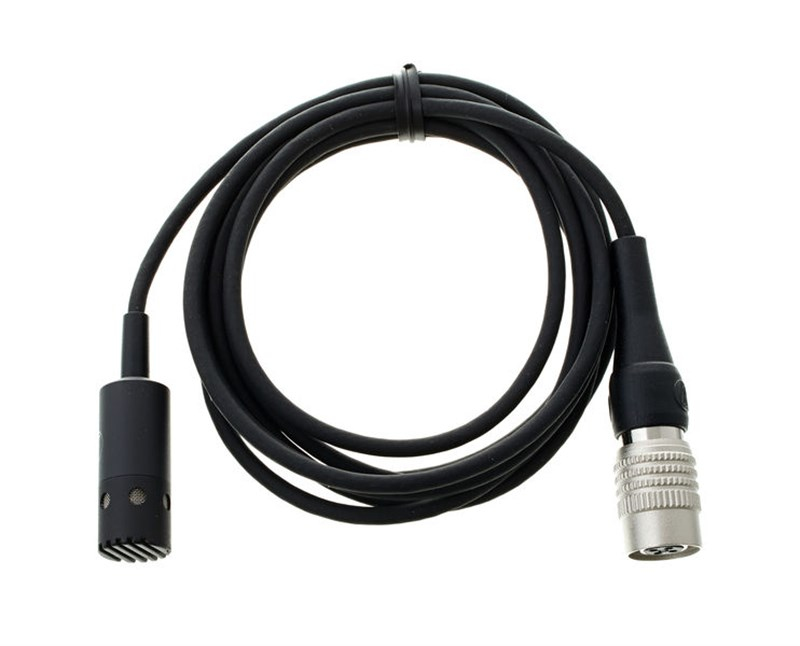

Audio Technica AT831CW Cardioid Condenser Lavalier Microphone
Clip-on lavalier mic also excels in acoustic guitar applications
Provides crisp, full-sounding voice and instrument pickup
Excellent gain before feedback and suppression of background noise
Operates on phantom power only
4.0 m (13.1') cable permanently attached to mic, TA3F connector at power module
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
less power module; includes clothing clip and windscreen only; 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak® wireless systems
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40-16,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
-42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE
250 ohms
MAXIMUM INPUT SOUND LEVEL
141 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
112 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
0.1 oz (2.8 g)
WEIGHT (POWER MODULE)
2.9 oz (81 g)
DIMENSIONS (MICROPHONE)
0.98" (25.0 mm) long
0.40" (10.2 mm) diameter
DIMENSIONS (POWER MODULE)
3.66" (92.9 mm) long,
0.74" (18.9 mm) diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
4.0 m (13.1') long (permanently attached to microphone),
3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type connector
ACCESSORIES FURNISHED
Clothing clip; AT8444 guitar adapter; AT8538 remote power module; AT8116 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE
M1
