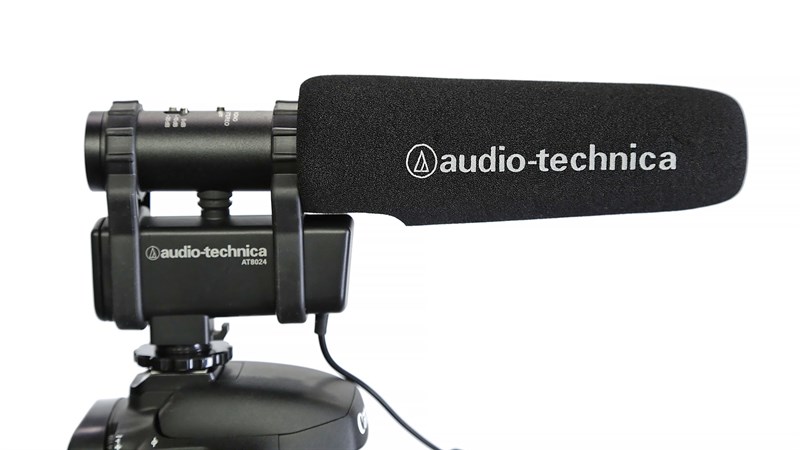

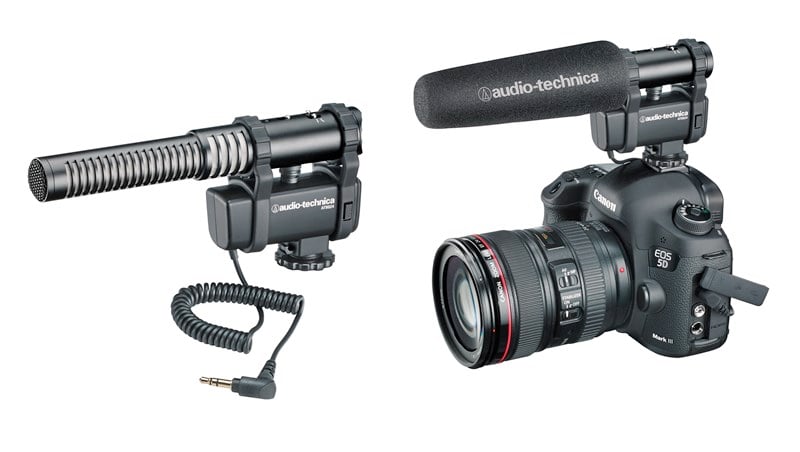

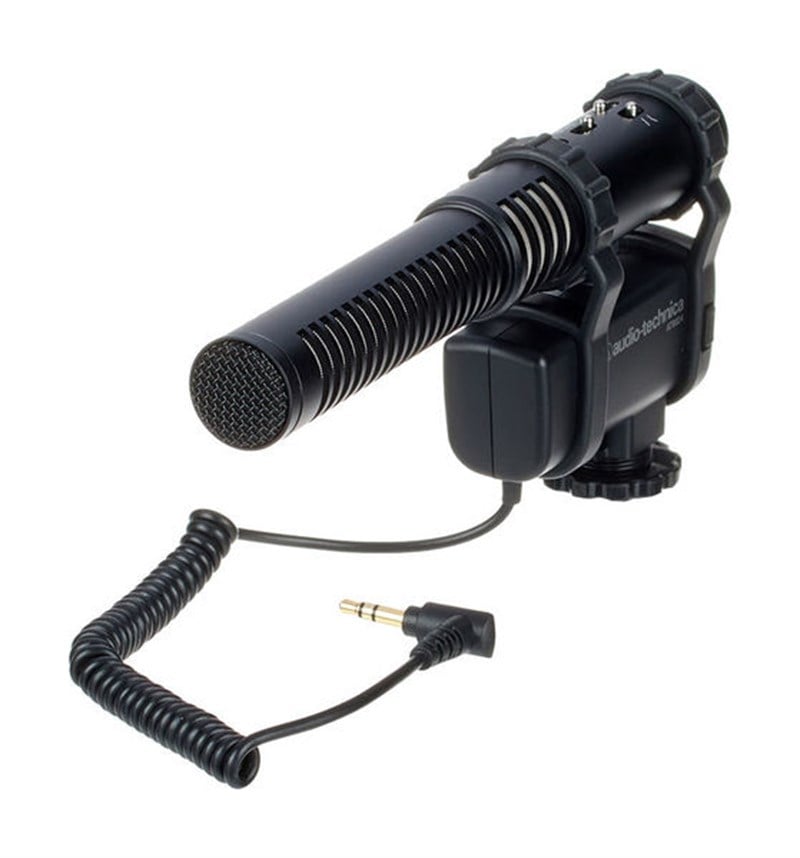

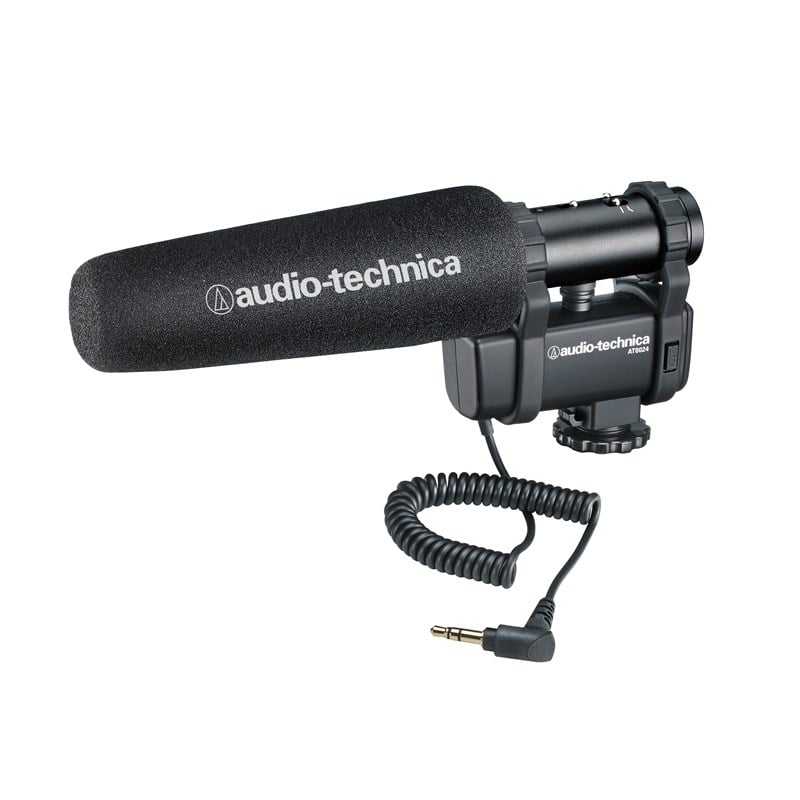

Audio Technica AT8024 Stereo/Mono Camera Mount Condenser Microphone

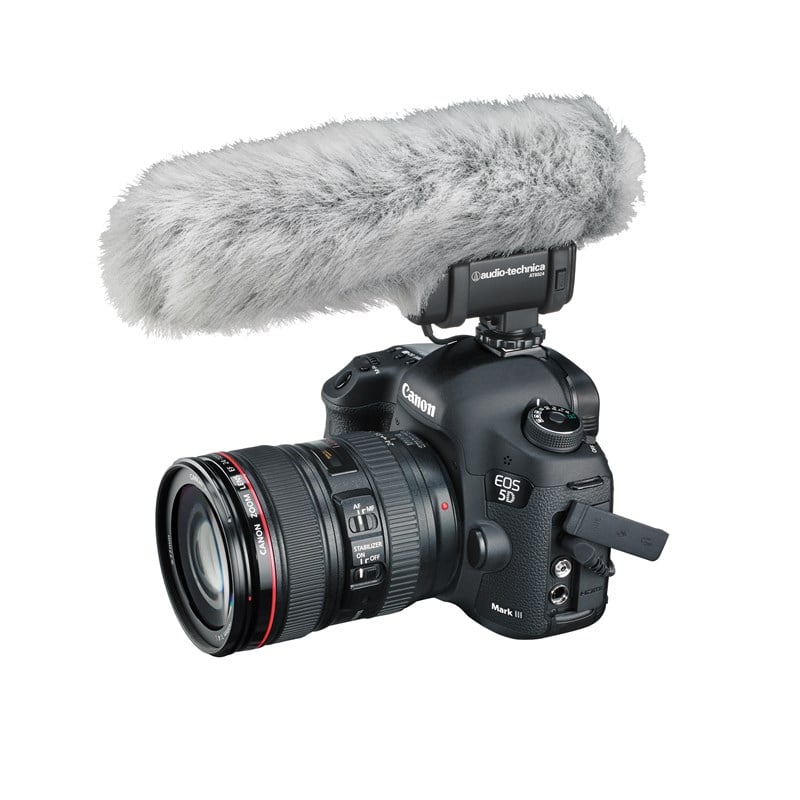

Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera’s internal microphone
Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
Handles loud sound sources without distortion
Three-position adjustable attenuator and switchable low-frequency roll-off
Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
Compact, lightweight design with integral shoe mount
Red/green LED power indicator
Includes windscreen, fuzzy windscreen and AA battery
ELEMENTS
Fixed-charge back plate,
permanently polarized condenser
POLAR PATTERNS
Line-cardioid, LR stereo
FREQUENCY RESPONSE
40-15,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
IMPEDANCE
50 ohms
MAXIMUM INPUT SOUND LEVEL
128 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
Mono: 106 dB, 1 kHz at Max SPL;
Stereo: 104 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
Mono: 72 dB, 1 kHz at 1 Pa;
Stereo: 70 dB, 1 kHz at 1 Pa
BATTERY TYPE
Type: One 1.5V AA (included);
Life: 80 hours, typical
SWITCHES
Mono, M-S Stereo;
Three-position attenuator;
Flat, roll-off
WEIGHT
114 g (4.0 oz)
DIMENSIONS
172.0 mm (6.77") long,
24.0 mm (0.94") maximum body diameter
OUTPUT CONNECTOR
3.5 mm stereo mini-plug on cable
CABLE
Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
ACCESSORIES FURNISHED
Windscreen; fuzzy windscreen; AA battery
AUDIO-TECHNICA CASE STYLE
CM1
