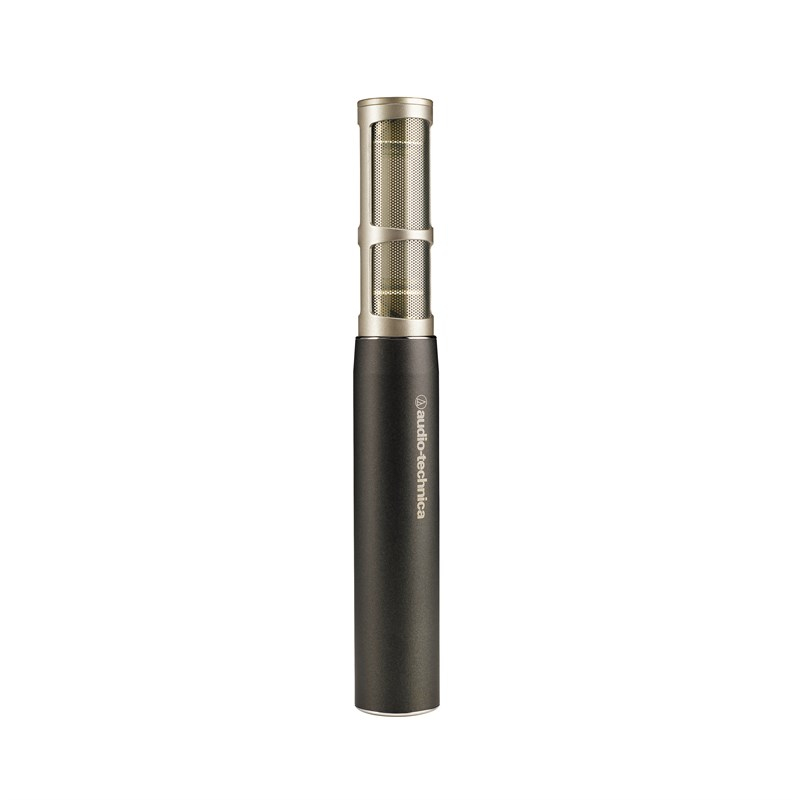

Audio-Technica AT5045 Premier Studio Microphone

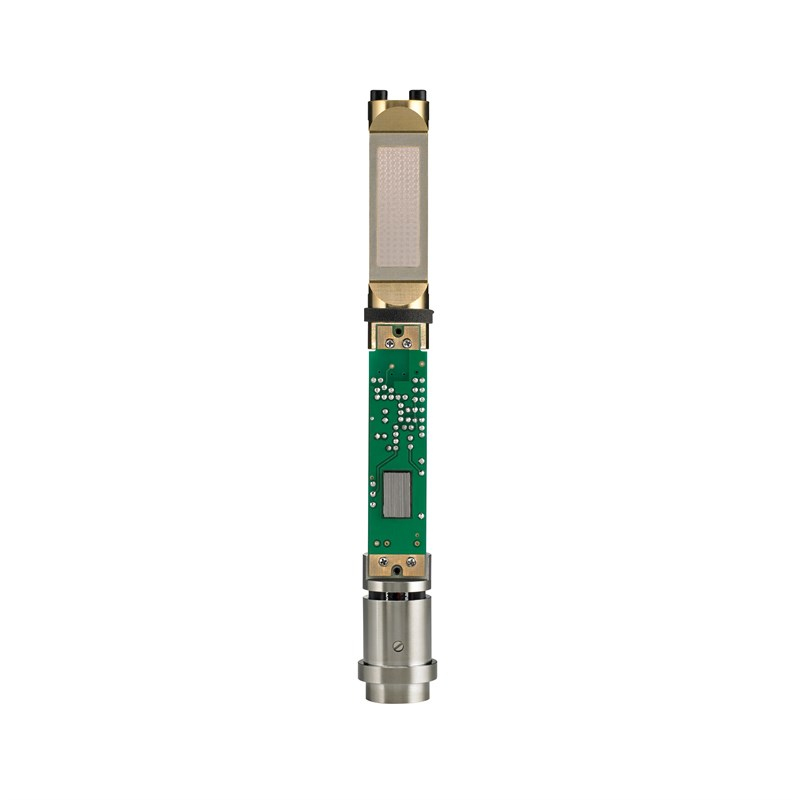

Discrete components carefully selected for optimized performance
Transformer-coupled output is optimized to provide smooth sonic character
Exceptionally low noise with high-SPL capability
Hand built and inspected for 100% quality control
Advanced internal shock mounting decouples the capsule from the microphone body
Elegant, durable housing of aluminum and brass

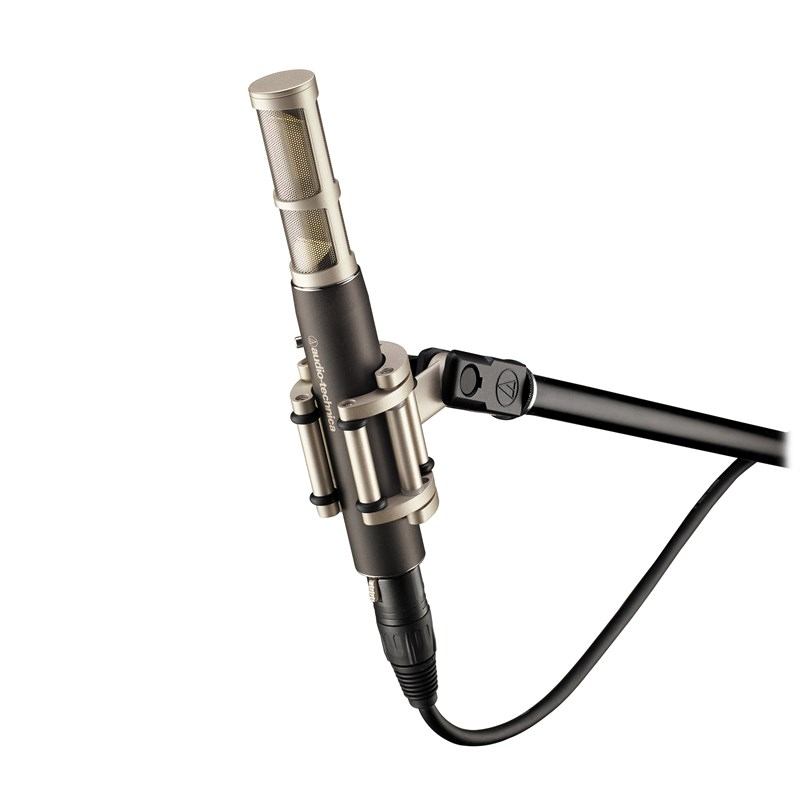

Innovative isolation clamp provides secure mounting, versatile positioning and effective dampening of unwanted mechanical noise
Available as a single microphone (AT5045) or as a stereo pair (AT5045P)

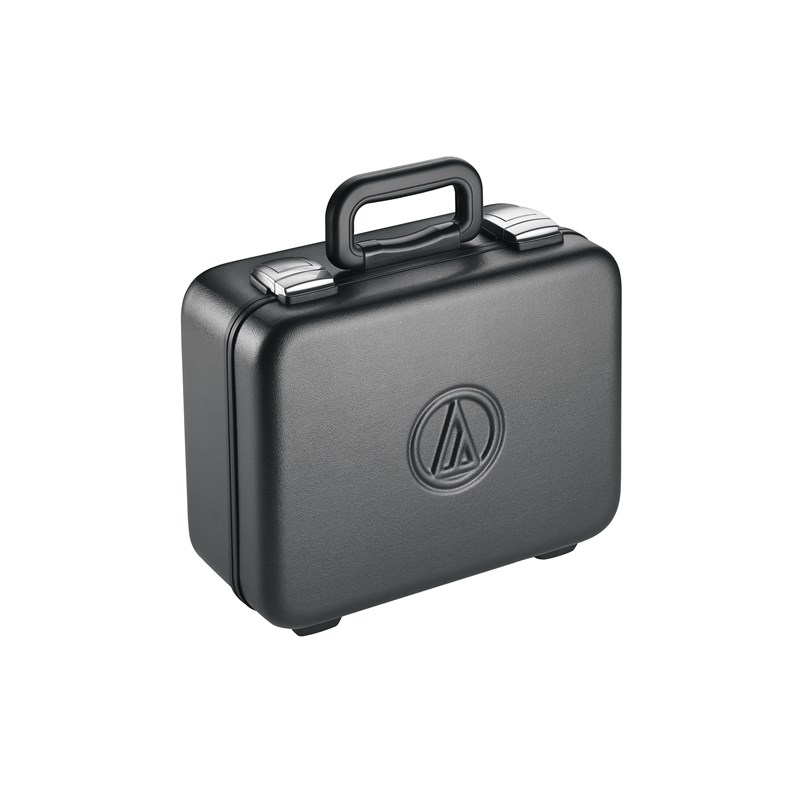

Custom hard-shell carrying case with die-cut foam compartments offers protection for one or two microphones
ELEMENT
Fixed-charge back plate,
permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20 – 20,000 Hz
OPEN CIRCUIT SENSITIVITY
–35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE
100 ohms
MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.
NOISE
8 dB SPL
DYNAMIC RANGE (typical)
141 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
86 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
48V DC, 1.4 mA typical
WEIGHT
197 g (7.0 oz)
DIMENSIONS
177.0 mm (6.97'') long, 25.0 mm (0.98'') maximum body diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED

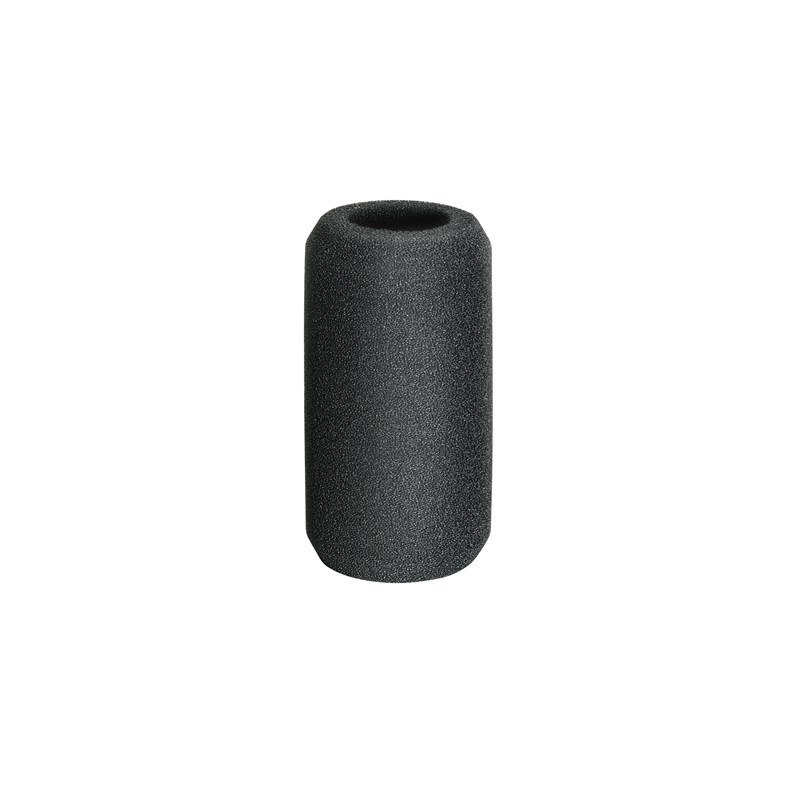

AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE
R11
