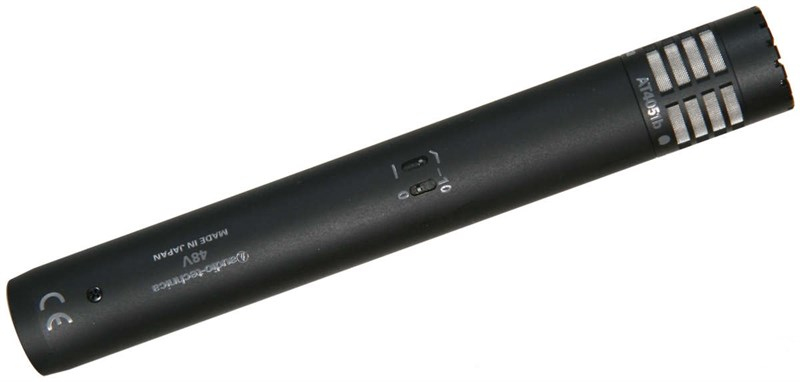

Audio Technica AT4051B Cardioid condenser pencil microphone
Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
High front-to-back rejection ratio—cardioid polar pattern improves isolation of desired sound source
Direct-coupled, balanced output results in a clean signal even under high-output conditions
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
Switchable 80 Hz hi-pass filter and 10 dB pad
Rugged turned-brass microphone housing for enduring dependability
State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards
RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
ELEMENT
Externally polarized (DC bias) capacitor
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
-34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE
50 ohms
MAXIMUM INPUT SOUND LEVEL
145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
NOISE
16 dB SPL
DYNAMIC RANGE (typical)
129 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
78 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
48V DC, 4.8 mA typical
SWITCH
Flat, roll-off; 10 dB pad (nominal)
WEIGHT
126 g (4.4 oz)
DIMENSIONS
155.0 mm (6.10") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTS
AT4049b-EL (omnidirectional);
AT4053b-EL (hypercardioid)
ACCESSORIES FURNISHED
AT8405a stand clamp for 5/8"-27 threaded stands;
windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE
S1
