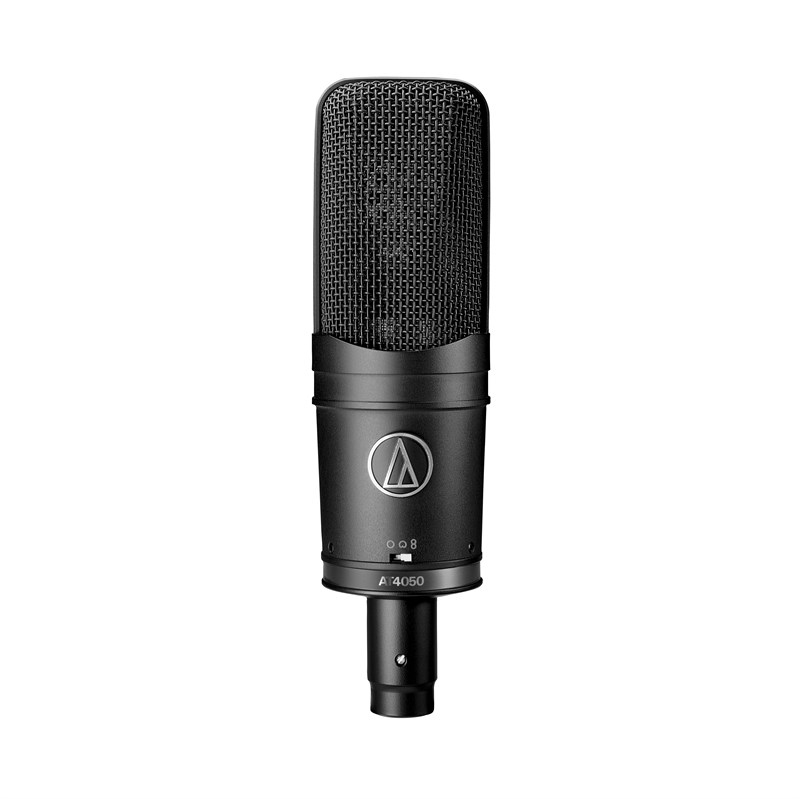

Audio Technica AT4050SM Multi-pattern condenser large diaphragm microphone with AT8449 shock mount
Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Three switchable polar patterns: omni, cardioid, figure-of-eight
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad

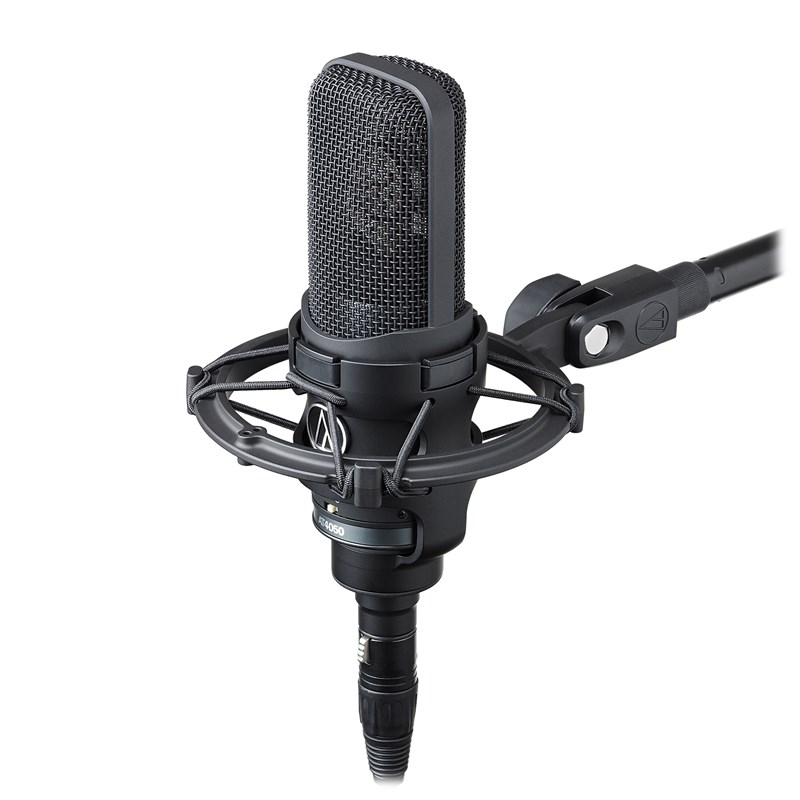

Custom shock mount provides superior isolation
ELEMENT
Externally-polarized (DC bias) condenser
POLAR PATTERNS
Cardioid Omnidirectional Figure-of-eight
FREQUENCY RESPONSE
20-18,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
-36 dB (15.8 mV), re 1V at 1 Pa
IMPEDANCE
100 ohms
MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE
17 dB
DYNAMIC RANGE (typical)
132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
48V DC, 4.2 mA typical
SWITCHES
Polar selection;
Flat, roll-off;
10 dB pad (nominal)
WEIGHT
18.0 oz (510 g)
DIMENSIONS
7.40" (188.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTORS
Integral 3-pin XLRM-type

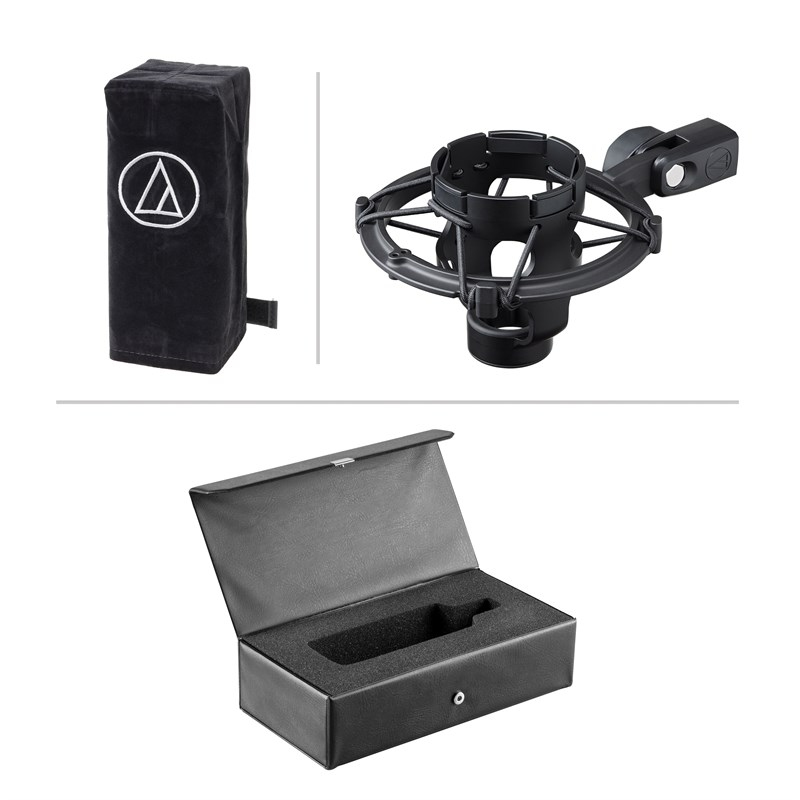

ACCESSORIES FURNISHED
AT8449a shock mount for 5/8"-27 threaded stands;
microphone dust cover;
protective carrying case
AUDIO-TECHNICA CASE STYLE
R1
