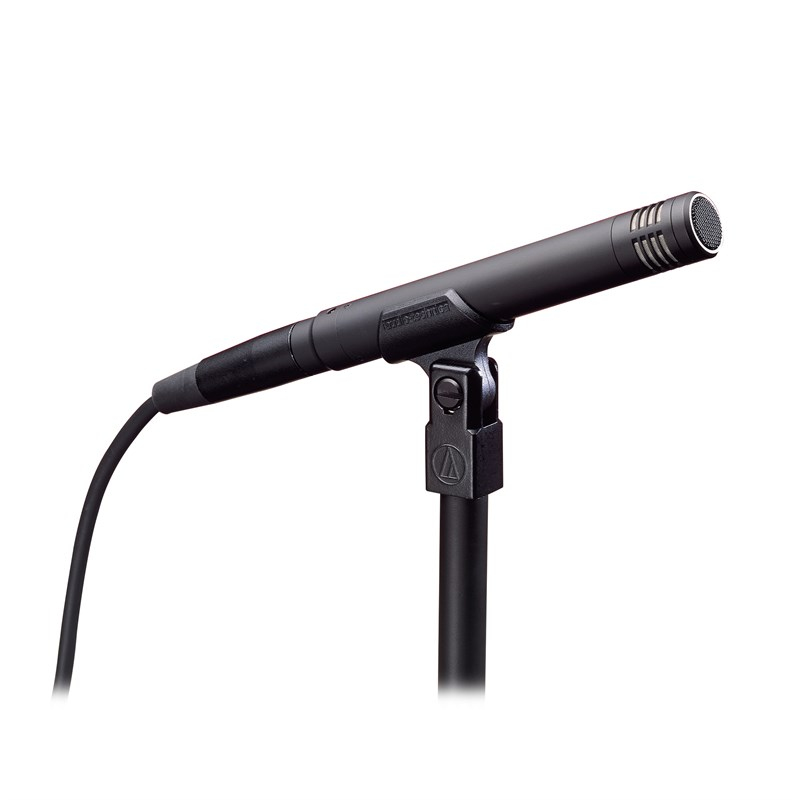

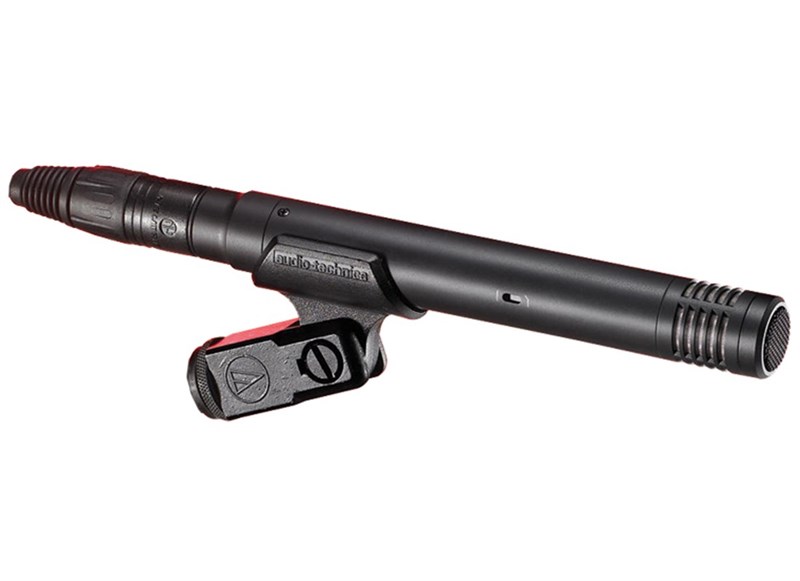

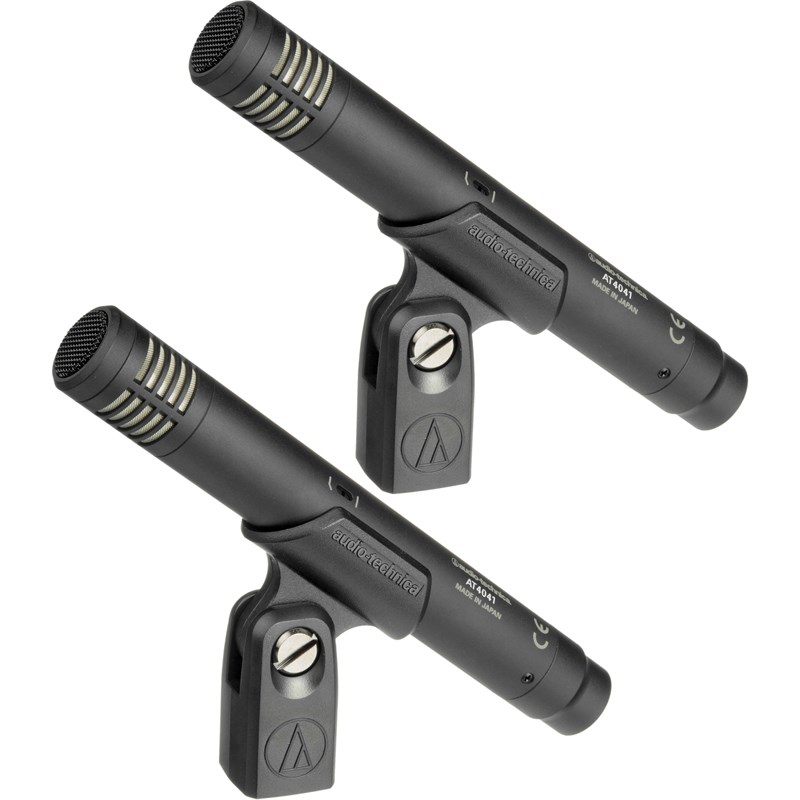

Cardioid Condenser İnstrument Microphone
Smooth, extended frequency response with a slight rise occurring in the high-frequency region
Ideal for drum overheads, acoustic guitar, piano, horns and under snare
Low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
Switchable hi-pass filter and rugged turned-brass microphone housing
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
-36 dB (15.8 mV), re 1V at 1 Pa
IMPEDANCE
100 ohms
MAXIMUM INPUT SOUND LEVEL
145 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
121 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
48V DC, 3.2 mA typical
SWITCH
Flat, roll-off
WEIGHT
4.2 oz (120 g)

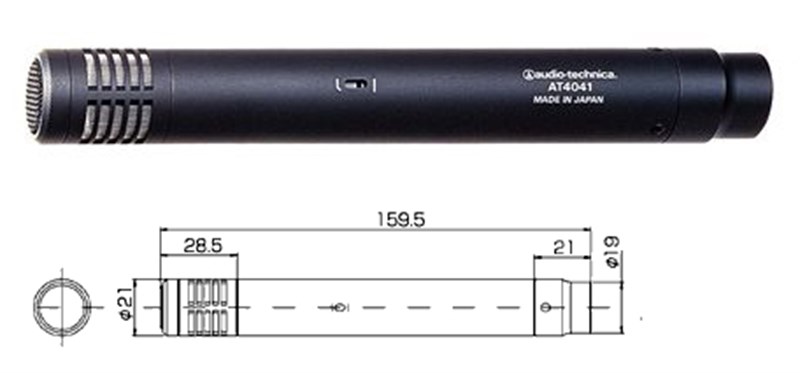

DIMENSIONS
6.28" (159.5 mm) long,
0.83" (21.0 mm) body diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type

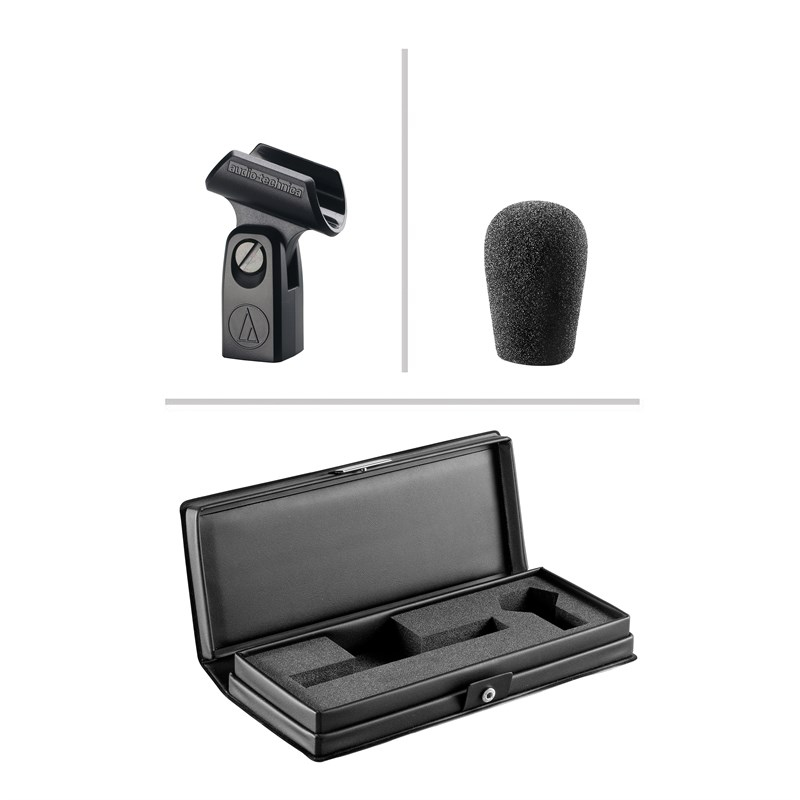

ACCESSORIES FURNISHED
AT8405a stand clamp for 5/8"-27 threaded stands;
AT8159 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE
S1
