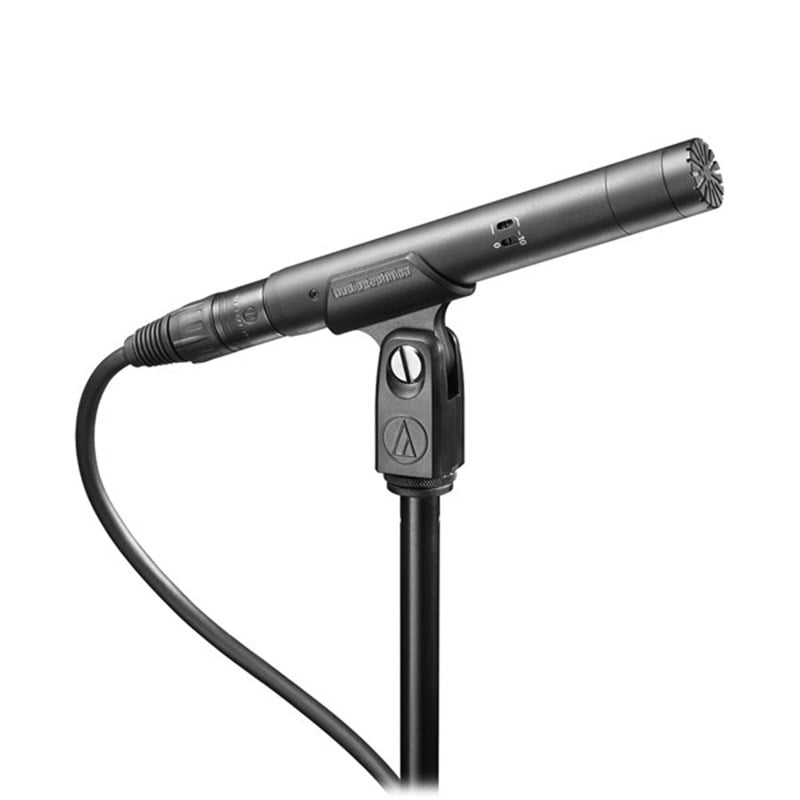

Audio Technica AT4022 Omnidirectional Condenser Microphone
Outstanding performance and rugged construction, ideal for critical studio & live applications
High SPL handling and wide dynamic range
Flat, extended frequency response
Switchable 80 Hz hi-pass filter and 10 dB pad
Omnidirectional polar pattern provides maximum ambient pickup
Low self noise perfectly suited for digital recording equipment
Exceptional reproduction of low frequency sounds
Low-mass element for superb transient response
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Omnidirectional
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
-34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE
250 ohms
MAXIMUM INPUT SOUND LEVEL
146 dB SPL, 1 kHz at 1% T.H.D.;
156 dB SPL, with 10 dB pad (nominal)
NOISE
13 dB SPL
DYNAMIC RANGE (typical)
133 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
81 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
48V DC, 3.0 mA typical
SWITCHES
Flat, roll-off; 10 dB pad
WEIGHT
124 g (4.4 oz)
DIMENSIONS
144.0 mm (5.67") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED
AT8405a stand clamp for 5/8"-27 threaded stands;
windscreen; protective carrying case
