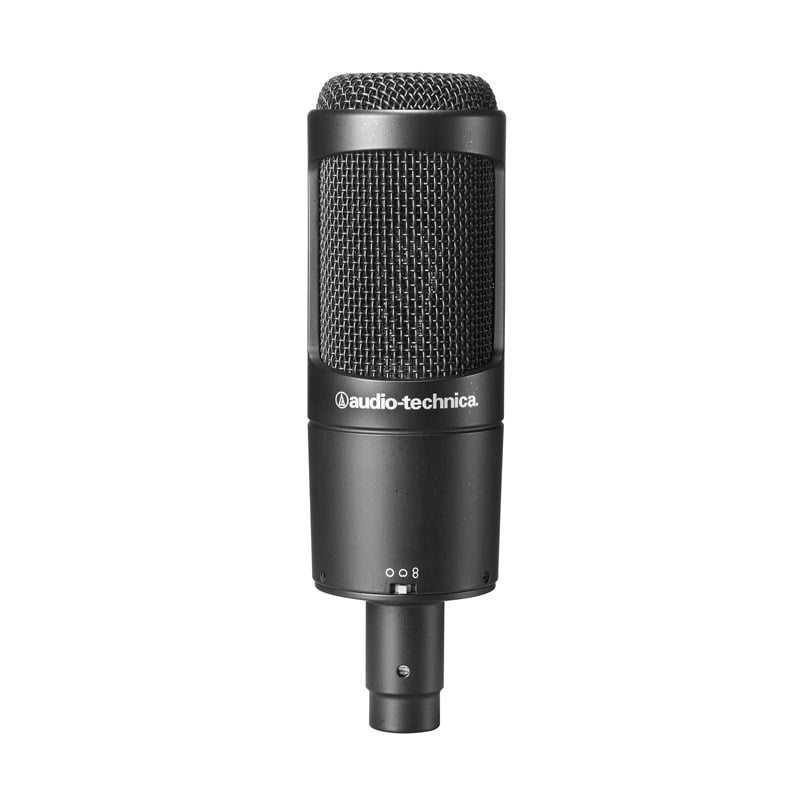

Audio Technica AT2050 Multi-pattern Condenser Microphone
Three switchable polar patterns: omni, cardioid, figure-of-eight
Switchable 80 Hz high-pass filter and 10 dB pad
Large diaphragm for smooth, natural sound and low noise
State-of-the-art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards

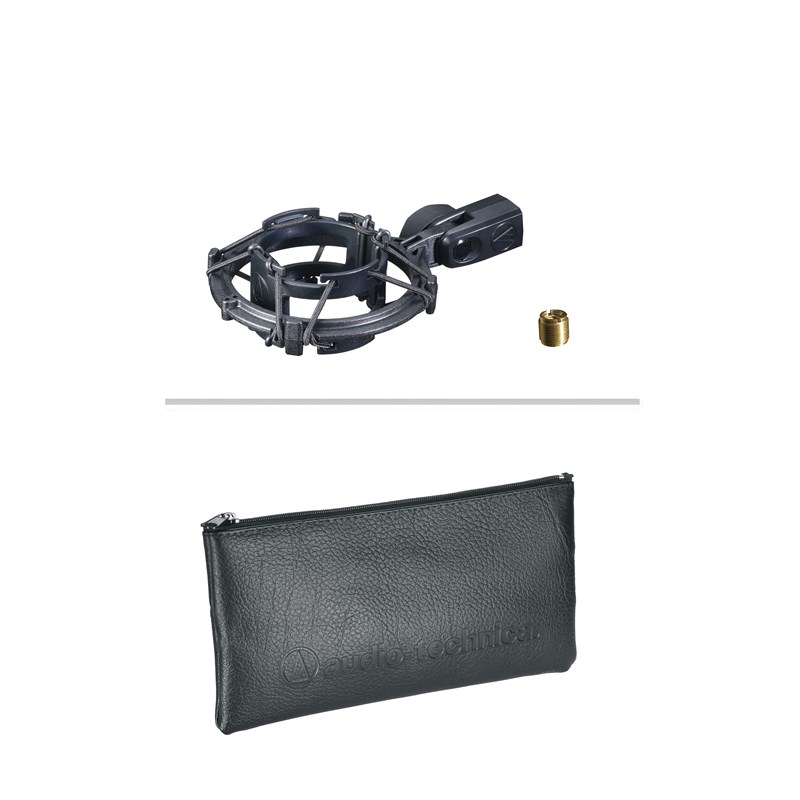

Includes shock mount & protective pouch
Three switchable polar patterns: omni, cardioid, figure-of-eight
Switchable 80 Hz high-pass filter and 10 dB pad
Large diaphragm for smooth, natural sound and low noise
State-of-the-art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards
Includes shock mount & protective pouch
ELEMENT
Externally-polarized (DC bias) condenser
POLAR PATTERNS
Cardioid,
Omnidirectional,
Figure-of-Eight
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE
120 ohms
MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE
17 dB SPL
DYNAMIC RANGE (typical)
132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 4.7 mA typical
SWITCHES
Polar selection;
Flat, roll-off;
10 dB pad (nominal)
WEIGHT
412 g (14.5 oz)
DIMENSIONS
170.0 mm (6.69") long,
52.0 mm (2.05") maximum body diameter
OUTPUT CONNECTORS
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED
AT8458 shock mount for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
R5
