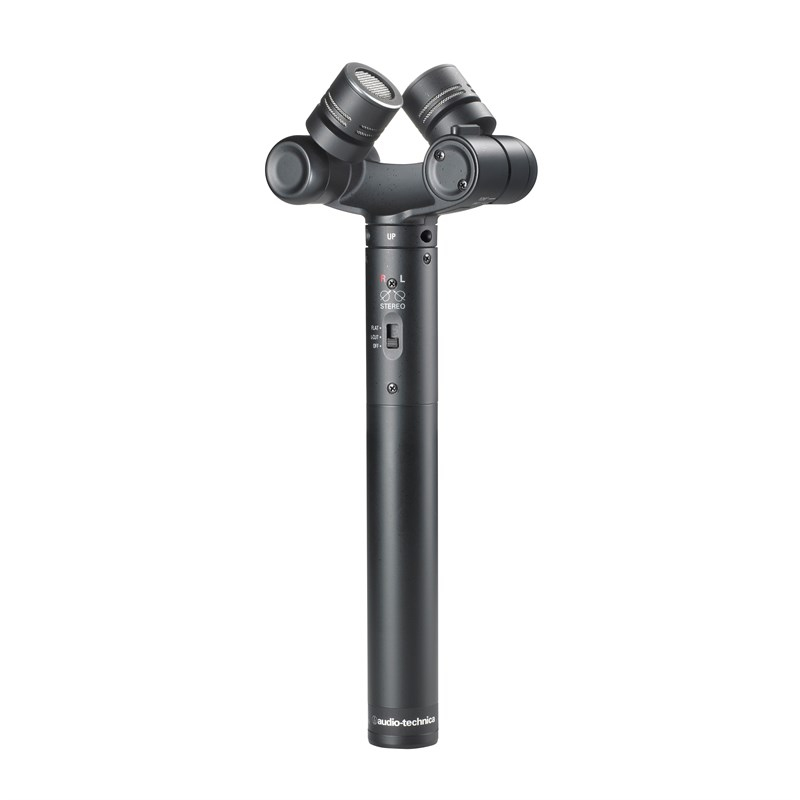

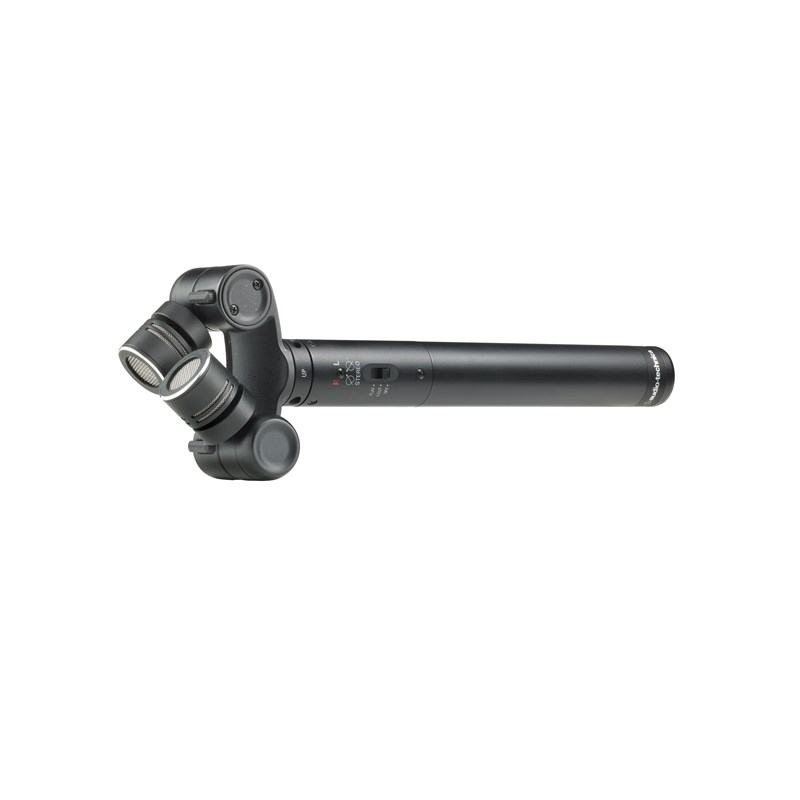

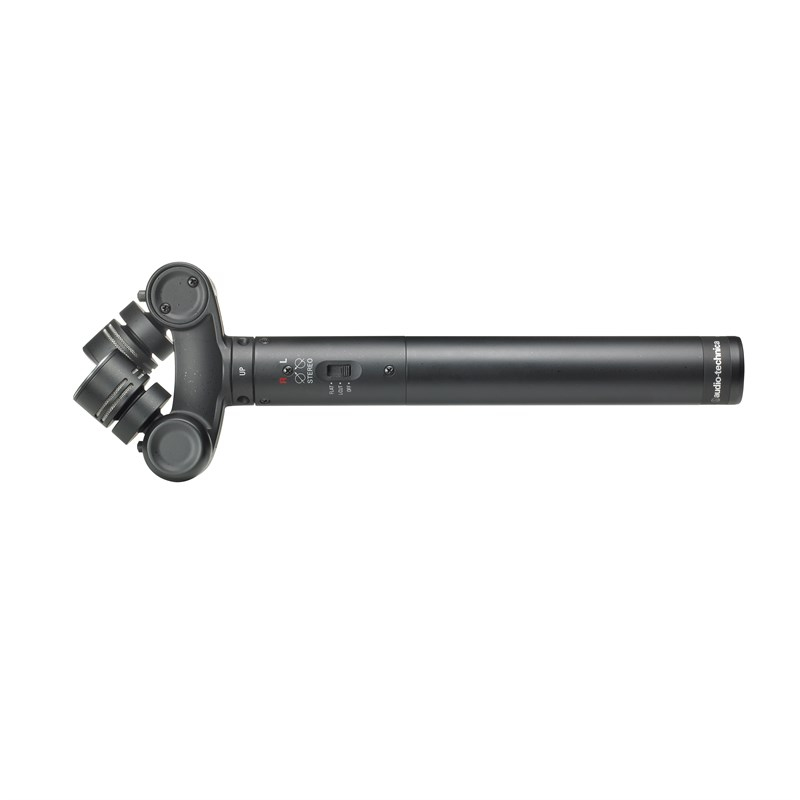

Audio Technica AT2022 X/Y Stereo Stüdyo Mikrofonu
X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
Provides the spatial impact and realism of a live sound field
Battery operation allows use with most recording devices
Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
Ideal for general stereo recording and field sound capture
Excellent channel separation
Included fuzzy windscreen offers excellent wind protection
ELEMENTS Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN X/Y Stereo
FREQUENCY RESPONSE 20–20,000 Hz
LOW FREQUENCY ROLL-OFF 150 Hz, 6 dB/octave
OPEN CIRCUIT SENSITIVITY -41 dB (8.9 mV) re 1V at 1 Pa
CHANNEL BALANCE <2.5 dB
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 122 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 103 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 75 dB, 1 kHz at 1 Pa
BATTERY TYPE 1.5V AA/UM3
WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
BATTERY CURRENT / LIFE 1.2 mA / 500 hours typical (alkaline)
SWITCH Off, on/flat, on/roll-off
WEIGHT 270 g (9.5 oz)
DIMENSIONS 192.0 mm (7.56") long,
65.0 mm (2.56") maximum head diameter,
21.0 mm (0.83") body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
CABLE 0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end

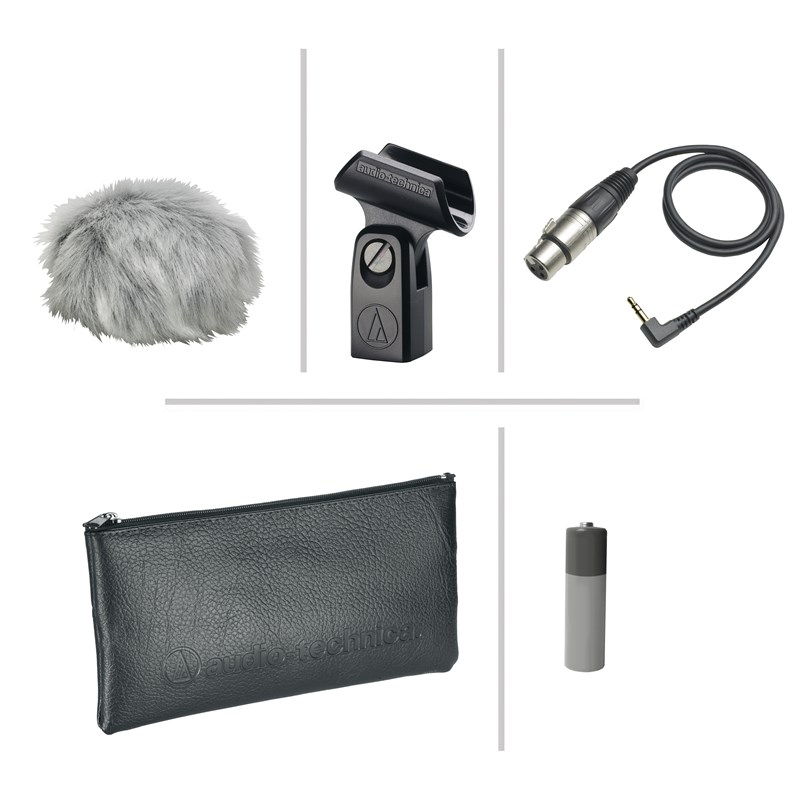

ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; fuzzy windscreen; battery; soft protective pouch
Click on the chart to view the larger image
POLAR PATTERN
1 kHz in 90-degree position
