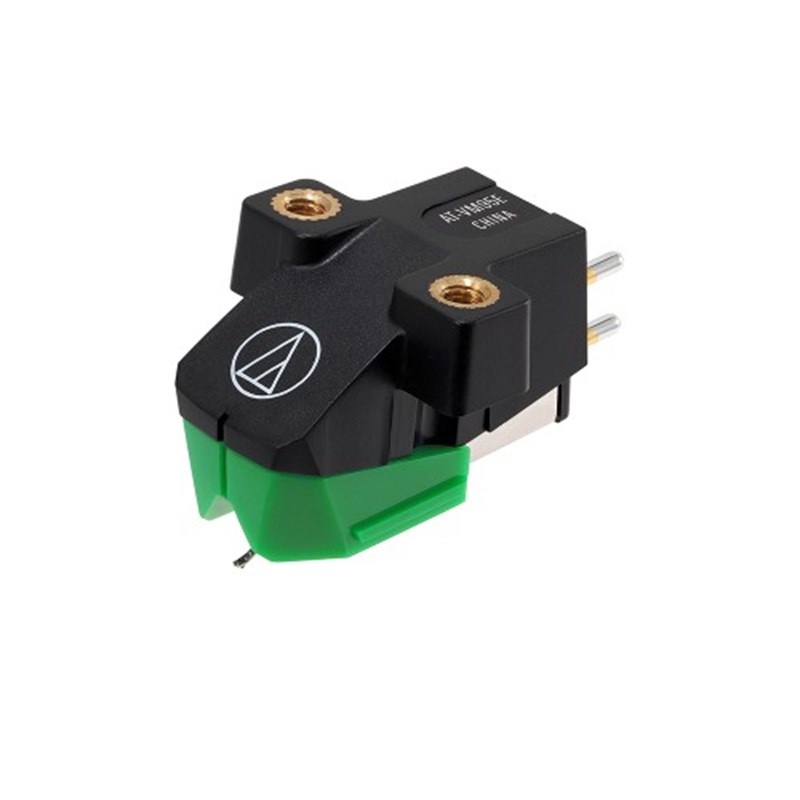

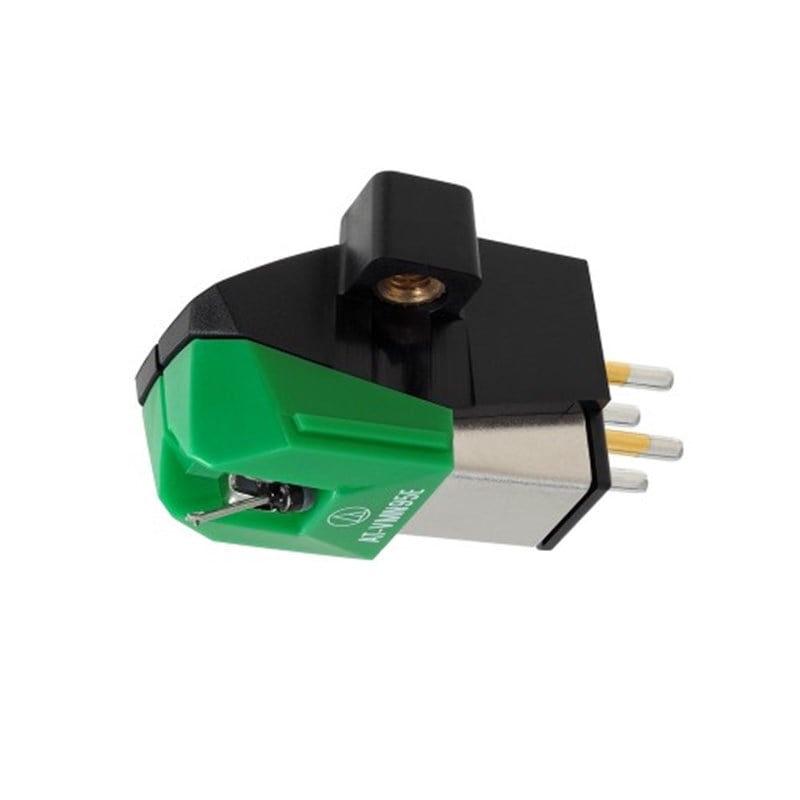

Audio-Technica AT-VM95E Eliptik Stereo Pikap İğnesi
Audio-Technica AT-VM95E Eliptik Stereo Pikap İğnesi
Audio-Technica AT-VM95E Eliptik Stereo Pikap İğnesi

Audio-Technica AT-VM95E Eliptik Stereo Pikap İğnesi

İndirim Oranı : %40 İndirim
Fiyat : $145.67(KDV Dahil)
İndirimli : $87.40(KDV Dahil)

VM95 series Elliptical stereo cartridge



Audio-Technica AT-VM95E Eliptik Stereo Pikap İğnesi



The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015. The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.

Aluminium cantilever
4.0mV output voltage
Compatible body with all VM95 Series stylus assemblies
Replacement for AT95E and AT95EX
20 to 22,000Hz frequency response







Type: VM Stereo Dual Magnet
Mounting: 1/2” centres
Frequency Response: 20 - 20,000 Hz
Channel Separation: 20 dB (1 kHz)
Output Channel Balance: 2.0 dB (1 kHz)
Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)
Stylus Shape: Elliptical
Stylus Size: 0.3x0.7 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 kΩ (1 kHz)

Coil Inductance: 550 mH (1 kHz)
DC Resistance: 485 Ω
Static Compliance: 17 x 10 – 6 cm / dyne
Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil: T.P. Copper
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 6.1g
Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus: AT-VMN95C
Accessories Included: Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
