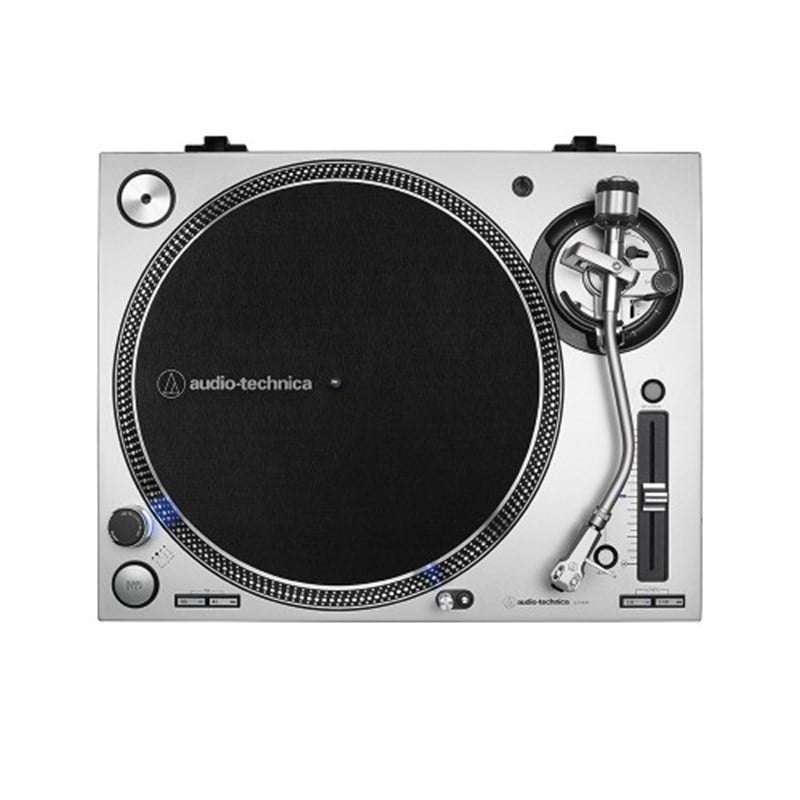

Audio-Technica AT-LP140XSV Gümüş Profesyonel Pikap Turntable
The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor
and anti-resonant, mass-damped, die-cast aluminium platter to ensure stable, on-axis rotation
at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment,
adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that
expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded
stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal ½"-mount headshell.
Designed to connect to components with a dedicated phono input, the turntable comes with a
detachable dual RCA output cable which supplies a strong 5.5 mV phono output.
Additional professional features include a start/stop button; forward and reverse play;
selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with
+/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a
retractable plug-type stylus target light; and a removable hinged dust cover.
Experience high-fidelity audio and professional DJ performance
Direct-drive, high-torque motor
Fully manual operation
Adjustable dynamic anti-skate control
Professional anti-resonance, mass-damped, die-cast aluminium platter
Including AT-XP3 cartridge with AT-HS6 universal half inch-mount headshell
Turntable
Drive Method: Direct drive
Type: 3-speed, fully manual operation
Motor: High-torque DC motor
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Pitch Variation: +/-8% or +/-16% or +/-24%
Turntable Platter: Die-cast aluminium
Starting Torque: 2.2 kgf-cm
Wow and Flutter: <0.2% WRMS (33 RPM)
Signal-to-Noise Ratio: >50 dB
Output Level: 5.5 mV nominal at 1 kHz, 5 cm/sec
Power Supply Requirements: 115/230V AC, 60/50 Hz
Power Consumption: 4.3 W
Weight: 10.0 kg
Cartridge & Stylus
Model: AT-XP3
Type: VM Dual Magnet
Output Voltage: 5.5 mV (@ 1.0 kHz, 5cm/sec)
Vertical Tracking Force Range: 2.0 to 4.0 g (standard 3.0 g)
Stylus Shape: Conical
Stylus Size: 0.6 mil
Recommended Load Impedance: 47,000 ohms
Weight: 6.2 g
Headshell
Model: AT-HS6
Weight: 9 g
Tone arm
Type: Balanced S-shaped tonearm with detachable headshell
Effective Length: 230.5mm
Overhang: 16mm
Maximum Tracking Error Angle: Less than 3 degree
Applicable Cartridge Weight: 3.5 - 8.5 g
Anti-skating Range: 0-4 g
Experience high-fidelity audio and professional DJ performance
Direct-drive, high-torque servo motor with speed stabilization
Fully manual operation
Adjustable dynamic anti-skate control
Selectable 33/45/78 RPM speeds
Professional anti-resonance, mass-damped, die-cast aluminium platter with felt mat
AT-HS6 universal ½"-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
Dedicated phono-level output (5.5 mV)
Stroboscopic platter with speed indicator
Forward/reverse operation and variable pitch control with quartz speed lock
Retractable plug-type target light for easier cueing in low light
Damped base construction for reduced low-frequency feedback coloration
Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable,
45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Available in black (AT-LP140XPBK) and silver (AT-LP140XPSV)
