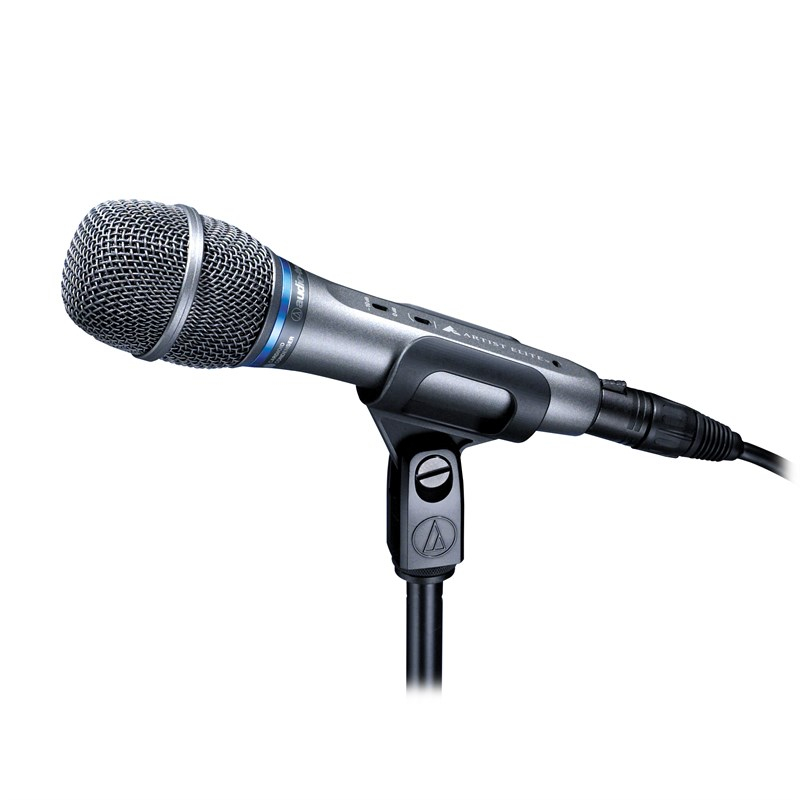

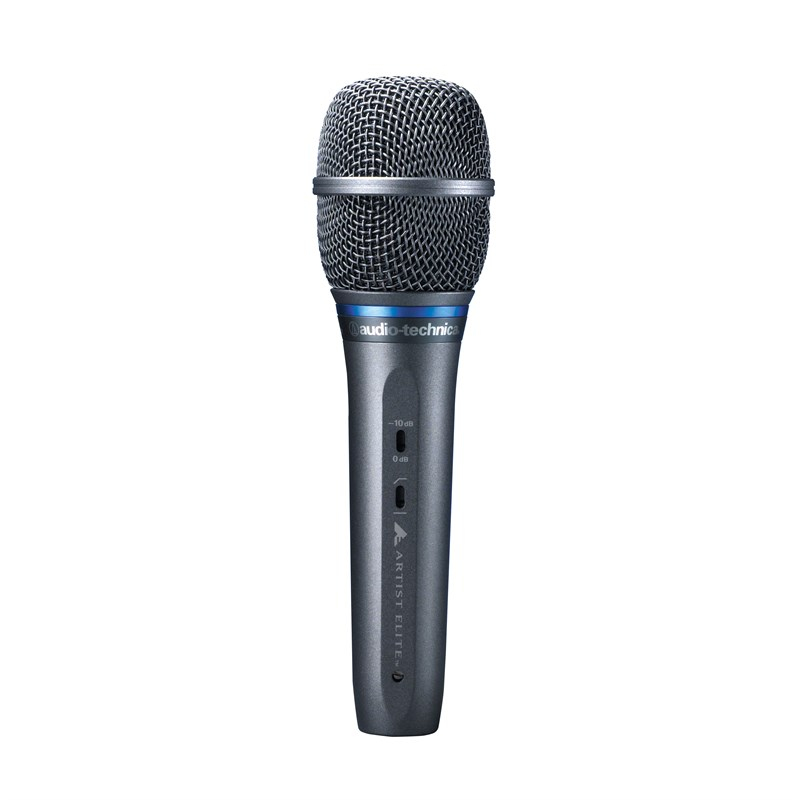

Audio Technica AE5400 Cardioid Condenser Mikrofonu
The ultimate vocal performance instrument
Pristine sound quality demanded by the most discriminating microphone user
Same large-diaphragm element as the renowned AT4050 studio microphone; true condenser design

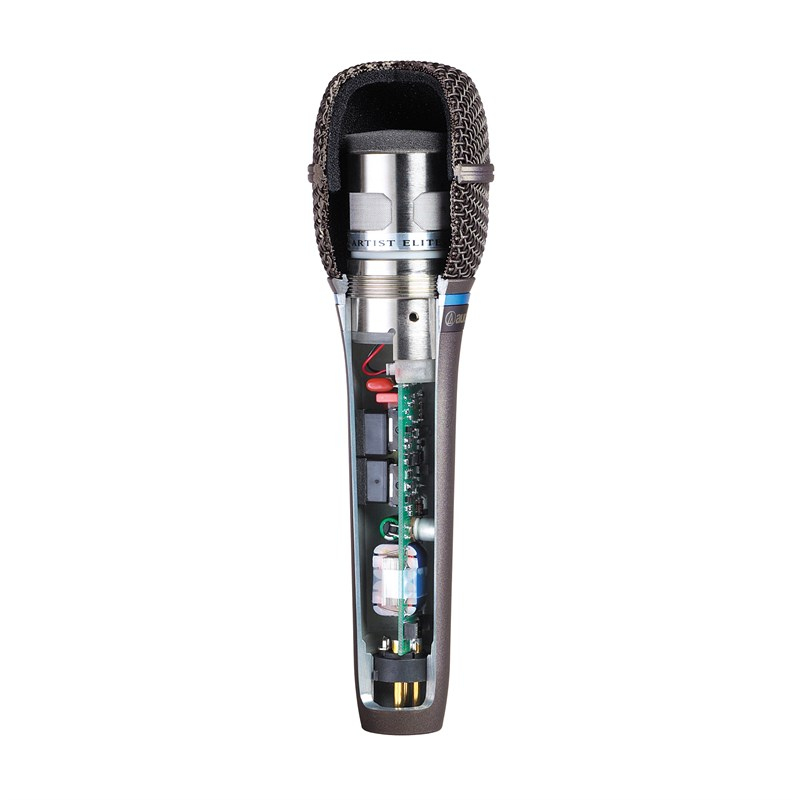

Superior anti-shock engineering ensures low handling noise and quiet performance
High-quality double-sided PCB uses surface-mount components. Extensive grounding plane and attention to best-practice grounding methods minimize electrical noise
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Custom transformer improves performance specifications by isolating against noise and RF interference, and providing excellent saturation characteristics that contribute to smooth linear sound quality
Robust design for enduring dependability on the road
Quiet-Flex™ stand clamp provides silent, flexible microphone positioning
Integral 80 Hz HPF switch and 10 dB pad
ELEMENT
Externally polarized (DC Bias) condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
-40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE
150 ohms
MAXIMUM INPUT SOUND LEVEL
147 dB SPL, 1 kHz at 1% T.H.D.;
157 dB SPL, with 10 dB pad (nominal)
NOISE
14 dB SPL
DYNAMIC RANGE (typical)
133 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
80 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 4 mA typical
SWITCHES
High-pass filter
10 dB pad (nominal)
WEIGHT
11.6 oz (330 g)
DIMENSIONS
7.05" (179.0 mm) long,
1.97" (50.0 mm) head diameter,
1.30" to 0.87" (33.0 mm to 22.0 mm) tapered body diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type

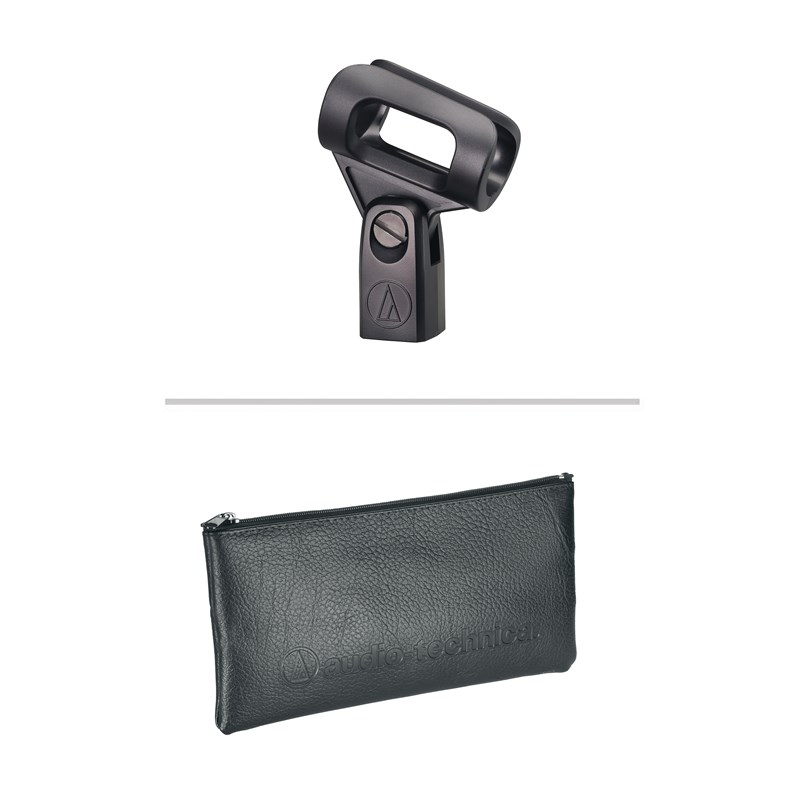

ACCESSORIES FURNISHED
AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
T4
