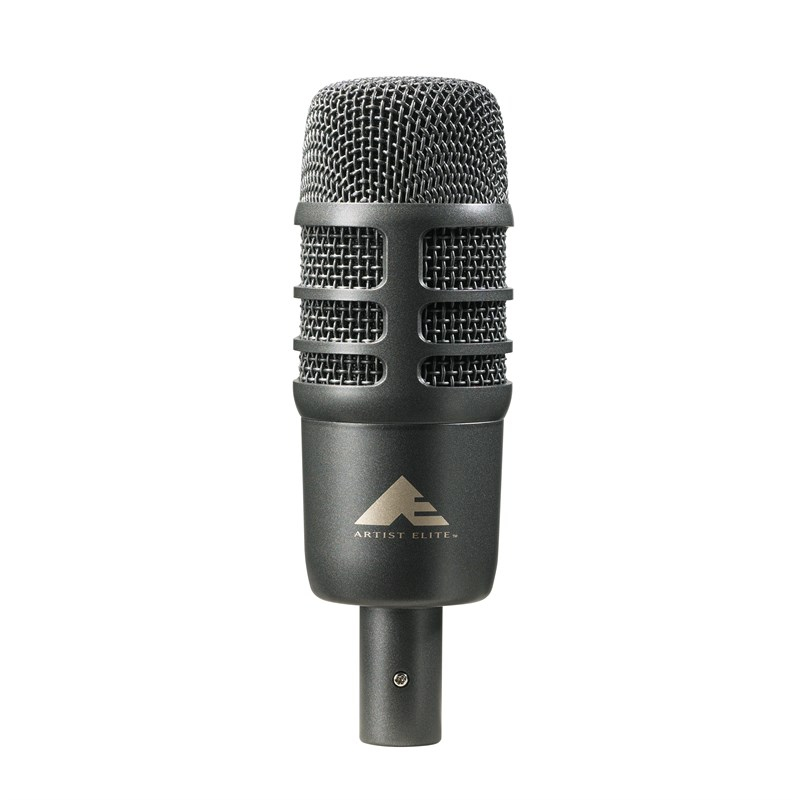

Audio Technica AE2500 Dual-element (dynamic/condenser) cardioid instrument microphone
Revolutionary dual-element design represents a ground-breaking transducer achievement

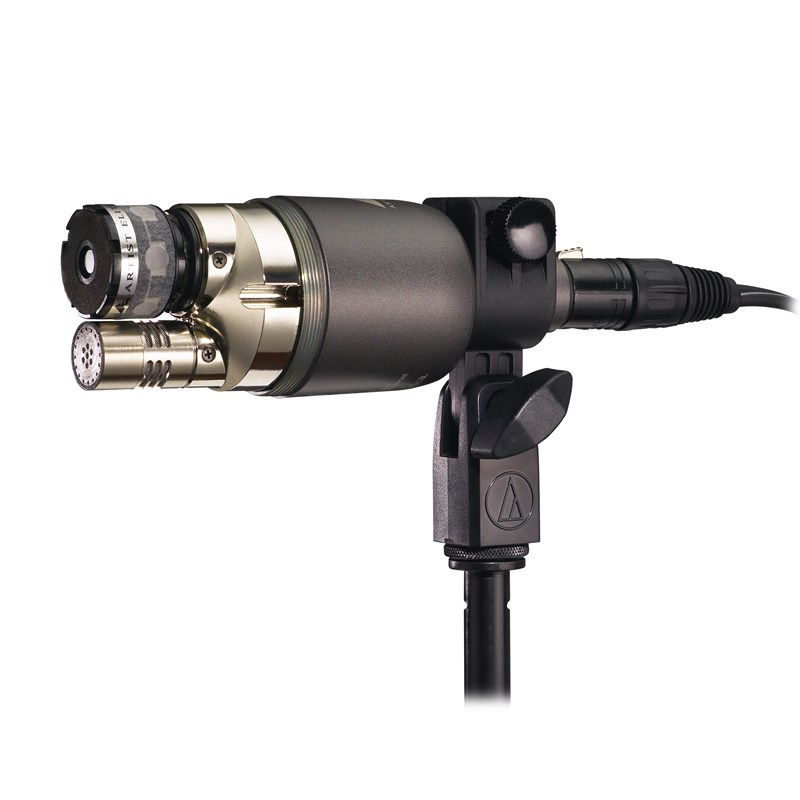

Two elements (condenser and dynamic) are enclosed in a single housing
Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell
Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
Robust design for enduring dependability on the road
Integral 80 Hz HPF switch and 10 dB pad on condenser element

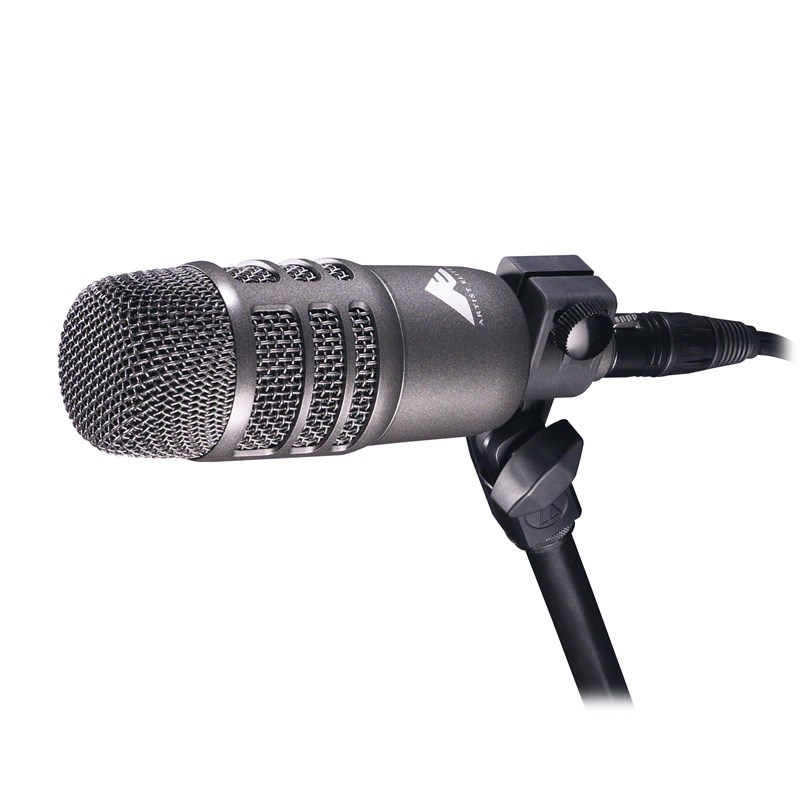

Includes isolation clamp for shock protection, secure mounting and easy positioning
Includes a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors) for separate control over each element
ELEMENTS
Condenser, dynamic
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20-17,000 Hz (condenser)
30-10,000 Hz (dynamic)
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave (condenser)
OPEN CIRCUIT SENSITIVITY
-51 dB (2.8 mV) re 1V at 1 Pa (condenser)
-54 dB (1.9 mV) re 1V at 1 Pa (dynamic)
IMPEDANCE
100 ohms (condenser)
600 ohms (dynamic)
MAXIMUM INPUT SOUND LEVEL
148 dB SPL, 1 kHz at 1% T.H.D. (condenser);
158 dB SPL, with 10 dB pad (nominal)
DYNAMIC RANGE (typical)
124 dB, 1 kHz at Max SPL (condenser)
SIGNAL-TO-NOISE RATIO
70 dB, 1 kHz at 1 Pa (condenser)
PHANTOM POWER REQUIREMENTS
11-52V DC, 3 mA typical (condenser)
SWITCHES
(Condenser Only) High-pass filter;
10 dB pad (nominal)
WEIGHT
13.8 oz (390 g)
DIMENSIONS
6.50" (165.0 mm) long,
2.17" (55.0 mm) maximum diameter
OUTPUT CONNECTOR
Integral 5-pin XLRM-type
CABLE
16.5' (5 m) dual shielded,
8-conductor cable,
5-pin XLRF-type connector at microphone,
two 3-pin XLRM-type output connectors

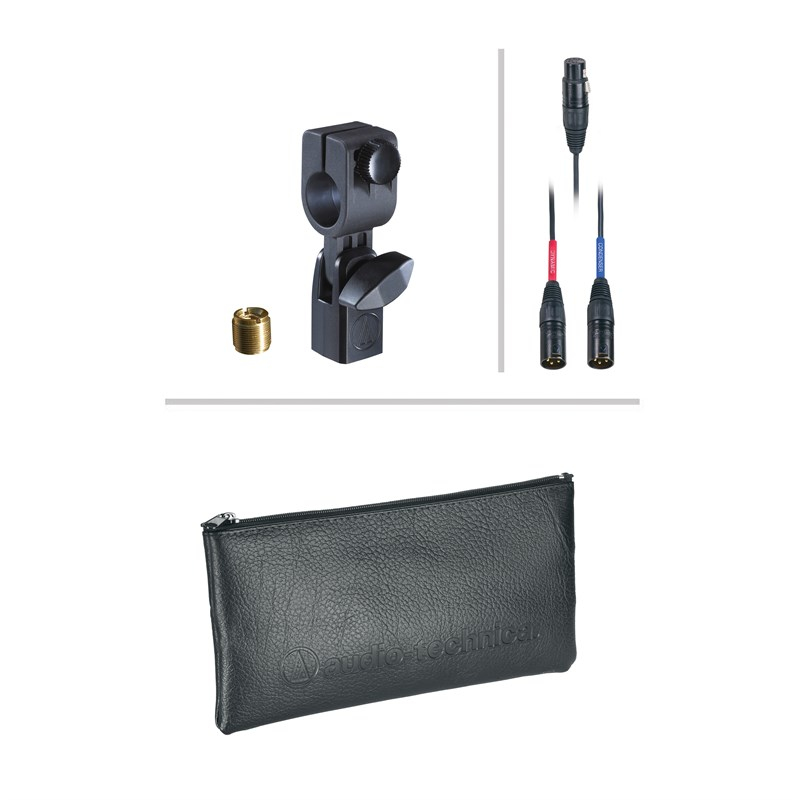

ACCESSORIES FURNISHED
AT8471 isolation clamp for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
R8
