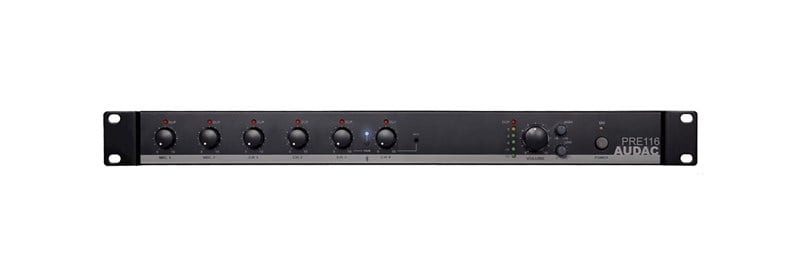

Audac PRE116 6 Kanal Stereo Preamfi
The PRE116 is a 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line level audio signals, offering a possibility for a wide range of small to medium sized audio installations in various kinds of applications. It features two balanced mono inputs with phantom power and three band tone control allowing connection of microphones or line level signal sources. The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements. The four stereo line level inputs are implemented as a balanced one fitted with XLR connectors and three unbalanced ones fitted with RCA connectors. Hereby, connection possibilities for a wide variety of line level sources is guaranteed. Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilties for portable and handheld devices including laptops, smartphones and tablets. A priority mute contact suppresses all (nonpriority) music sources in case of contact closure, allowing to link autonomous alarm systems. Input volume control is done using the corresponding rotary dials on the front panel, while the output section features a 6-segment LED VU bar, a master volume control and 2-band tone control. Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.
Inputs Bluetooth receiver (mixed with Ch 3)
Front 3.5mm Jack (mixed with Ch )
Priority mute contact
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.05%
Crosstalk (@ 1 kHz) > 70 dB
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 12 W
Inputs Balanced Microphone Type 2 x Balanced Microphone
Balanced Stereo Type 2 x Stereo Balanced Line
Unbalanced Stereo Type 3 x Stereo Unbalanced Line
Outputs Balanced Stereo Type 1 x Balanced Stereo outputs
Inputs Microphone Sensitivity (1W/1m) -6 dB ~ -50 dB
Line Sensitivity (1W/1m) -20 dB ~ +4 dB
Balanced Microphone Phantom Power 15 V DC
Outputs EQ Treble 15 dB (2.5~20 kHz)
Bass 15 dB (100 Hz)
Inputs Balanced Microphone EQ High 15 dB (12.5 kHz)
Mid 15 dB (2.5 kHz)
Low 15 dB (80 Hz)
Dimensions 482 x 44 x 335 mm (W x H x D)
Weight 4,10 kg
Unit height 1 HE
