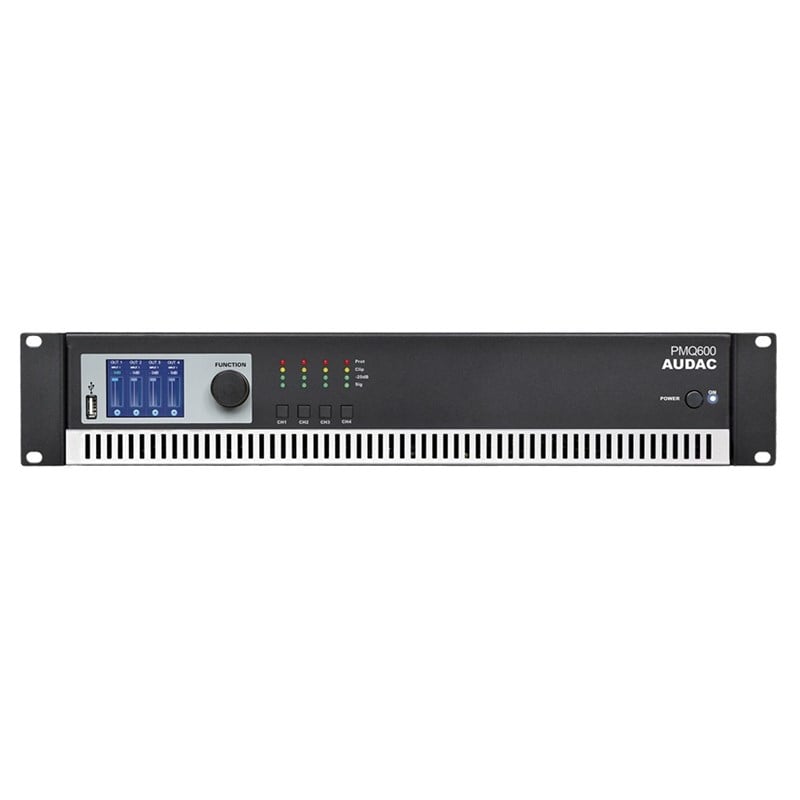

Audac PMQ600 4 x 600 Watt Class-D 100V Güç Amplifikatörü
SYSTEM SPECIFICATIONS
RMS Power 4 x 600 W
Signal / Noise < 0.05 dB
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Common mode rejection ratio 70 dB
Damping factor > 200
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz - 20 kHz
Power Supply Switching mode
Inputs Sensitivity (1W/1m) -30 dB ~ +5 dB
Impedance 10 kΩ balanced
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Access User & Administrator level (Through password and USB-key protection)
Inputs Connector XLR & 3-pin Euro Terminal Block (3.81 mm)
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Supply Operating 230 ~ 240 V AC / 50 ~ 60 Hz
PRODUCT FEATURES
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 8.6 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
The PMQ series are professional 100V quad channel power amplifiers, providing a new standard for premium sound 100V amplification in public address applications. Their advanced features and availability in different output powers provide an enormous flexibility for numerous applications.
The PMQ240 is a four channel Class-D 100V power amplifier with an output power of 240 Watt for each channel. The WaveDynamics™ DSP processor combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.
Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection.
Configuration is made simple by the loudspeaker presets and full system configurations which can be selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with a ‘bullet-proof’ loudspeaker protection.
A great input flexibility and source compatibility is offered by the input selection matrix and the XLR and terminal block signal connections. System integration is made easy using the RS-232 control port. Optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.
