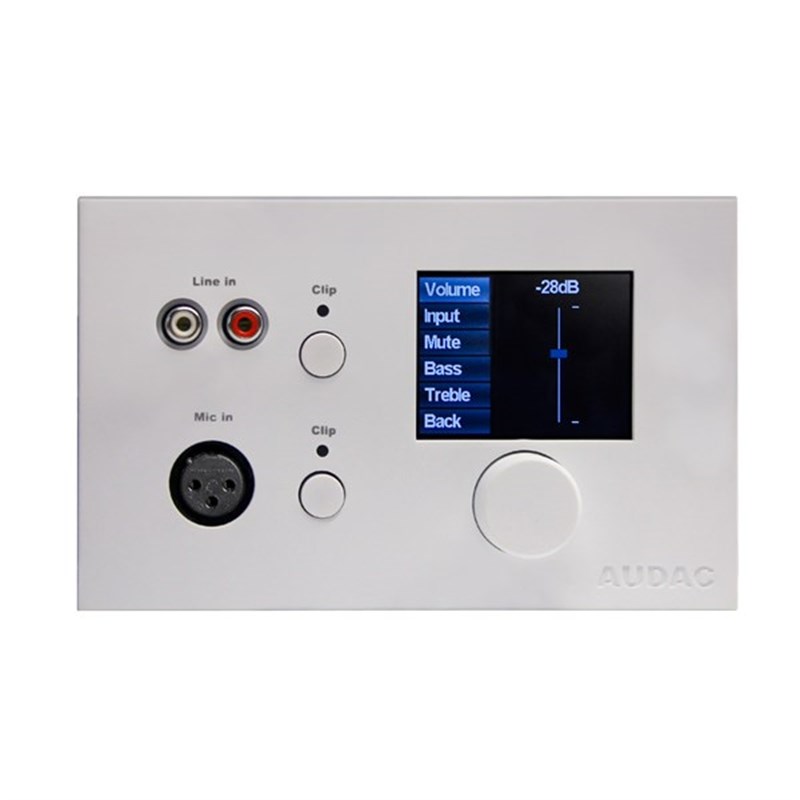

Audac MWX65 W (Beyaz) MTX Serisi, AMP/RM523 için Duvar Panel Kontrolör
Audac MWX65 W (Beyaz) MTX Serisi, AMP/RM523 için Duvar Panel Kontrolör

Audac MWX65/W - AMP/RM523 için Duvar Smart Mikser (Beyaz) - MTX Serisi

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Audac MWX65/W - AMP/RM523 için Duvar Smart Mikser (Beyaz) - MTX Serisi



Control RS-485

Audio transfer Analogue differential (Dual mono)

Phantom Power 12 V DC (software enabling)

Cabling CAT5 (up to 500 meter)

Connectors 8-pin Euro Terminal Block

Display Type 2.5” Graphical Full colour

Power Consumption 1.8 W - 75 mA / 24 V

Inputs Unbalanced Stereo Connector RCA

Sensitivity (1W/1m) -50 dBV ~ -15 dBV

THD+N (@ 1 kHz) < 0.1 %

Signal / Noise 75 dB

Balanced Microphone Connector XLR female

Sensitivity (1W/1m) -12 dBV ~ +12 dBV

THD+N (@ 1 kHz) < 0.05%

Signal / Noise 85 dB



Dimensions 153 x 94 x 45 mm (W x H x D)

Built-in depth 37 mm

Weight 0.210 kg

Construction ABS

Colours Black (RAL9005) (MWX65/B)

White (RAL9010) (WMX65/W)

Accessories Optional Flush mount Installation boxes WB5065/FS: Concrete & Brick walls

WB5065/FG: Wooden & Gypsum walls

Surface mount Installation boxes

WB5065/SW: White version

WB5065/SB: Black version
