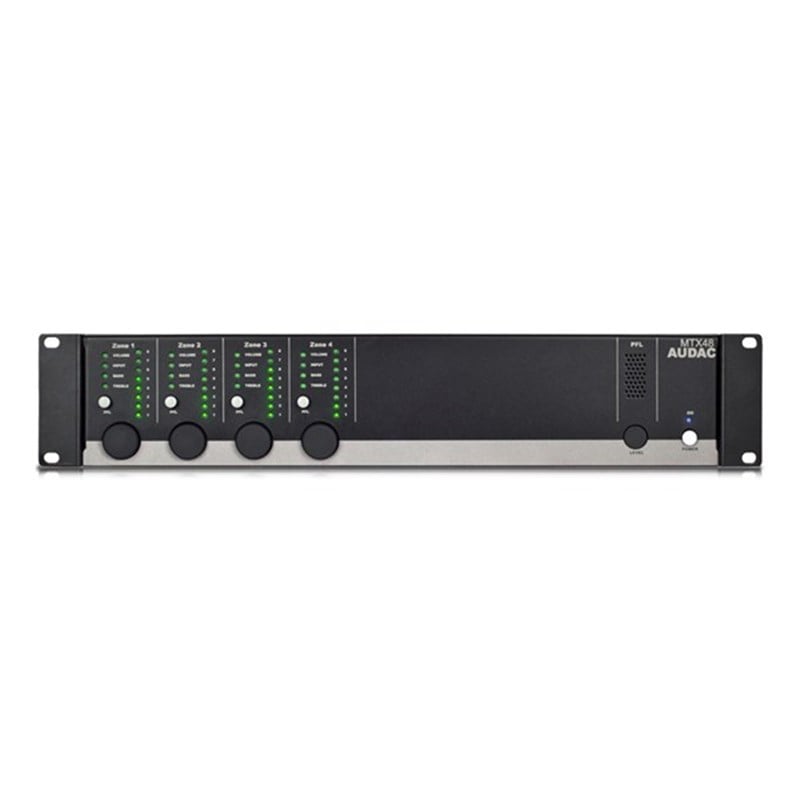

Audac MTX48 4 Zone Audio Matrix

Audac MTX48 4 Zone Audio Matrix

Marka : Audac
Fiyat : $2,089.28(KDV Dahil)



 Audac MTX48 4 Zone Audio Matrix



Crosstalk (@ 1 kHz) -85 dB

Control Front panel

RS-232

TCP/IP (RJ45)

Wall panel (RS-485)

Audac Touch™

Web (HTML5)

Web (Flash)

Outputs Impedance 51 Ω

Level -70 dB ~ 0 dB

Frequency Response (± 3 dB) 20 Hz - 20 kHz

Power Consumption 12 W

Supply 100 ~ 240 V AC / 50 ~ 60 Hz

24 V DC (emergency Power)

Inputs Balanced Microphone Type 2 x Balanced Microphone

Connector XLR

Sensitivity (1W/1m) 0 dBV ~ 50 dBV

Phantom Power 15 V DC

Signal / Noise > 80 dB

THD+N (@ 1 kHz) < 0.05 dB

Unbalanced Stereo Type 4 x Stereo Unbalanced Line

Connector RCA

Sensitivity (1W/1m) -14 dB ~ +9 dB

Signal / Noise > 100 dB

THD+N (@ 1 kHz) < 0.01 dB

Wall Panel Type 4 x Wall panel input

Connector RJ45

Other Type Priority mute contact

Outputs Balanced Stereo Type 3-pin Euro Terminal Block (Pitch - 3.81 mm)

EQ Treble ± 14 dB (2.5~20 kHz)

Bass ± 14 dB (100 Hz)

Inputs Balanced Microphone EQ High ± 15 dB (12.5 kHz)

Mid ± 15 dB (2.5 kHz)

Low ± 15 dB (80 Hz)



Dimensions 482 x 88 x 335 mm (W x H x D)

Weight 4.750 kg

Unit height 2 HE
