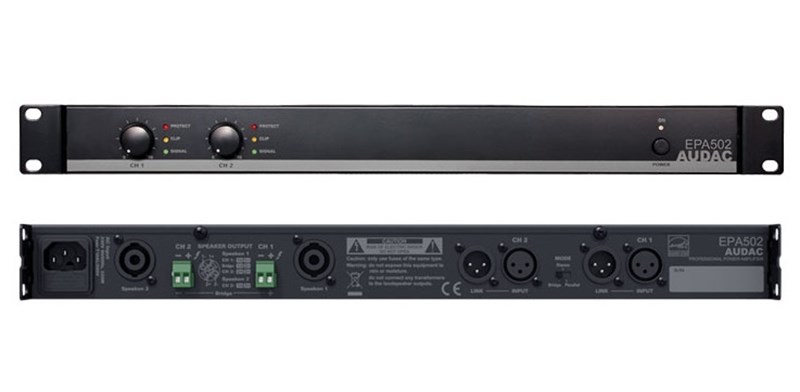

Audac EPA502 Dual - Channel Class - D Amplifier 2x500W
Audac EPA502 Dual - Channel Class - D Amplifier 2x500W

Audac EPA502 Dual - Channel Class - D Amplifier 2x500W

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Less than 1Watt power consumption in standby mode




Audac EPA502 Dual - Channel Class - D Amplifier 2x500 W



SYSTEM SPECIFICATIONS

Signal / Noise > 90 dB

THD+N (@ 1 kHz) < 0.1%

Crosstalk (@ 1 kHz) > 70 dB

Technology Class-D

Protection DC Short circuit

Over heating

Over load

Signal limiting

Cooling Convection cooled

Operating temperature 0° ~ 40° @ 95% Humidity

Frequency Response (± 3 dB) 20 Hz - 20 kHz

Power Supply Switching mode

230 ~ 240 V AC / 50 ~ 60 Hz

Consumption 426 W

Inputs Sensitivity (1W/1m) 0 dB (1V RMS)

Impedance 12 kΩ balanced

Connector XLR female with Male Linkthrough

Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)

Power Consumption Standby 0.7 Watt (30 min standby time)

RMS Power @ 4 Ω Stereo 2 x 500 W

@ 8 Ω Bridge 1000 W

@ 8 Ω Stereo 2 x 300 W



PRODUCT FEATURES

Dimensions 482 x 44 x 330 mm (W x H x D)

Weight 4.700 kg

Mounting 19”

Unit height 1 HE

Construction Steel

Colours Black
