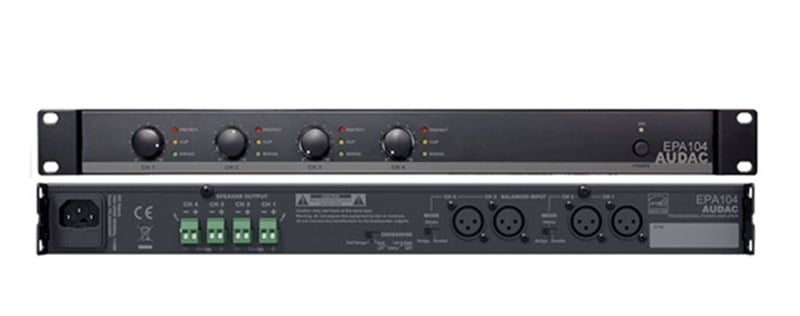

Audac EPA104 Quad Channel Class D Amplifier 4 X 100W 4 OHM + CROSSOVER
Audac EPA104 Quad Channel Class D Amplifier 4 X 100W 4 OHM + CROSSOVER

Audac EPA104 Quad Channel Class D Amplifier 4 X 100W 4 OHM + CROSSOVER

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Ses Sinyali Algılanmadığında Otomatik Olarak Bekleme Moduna Geçen Teknoloji



Audac EPA104 Quad Channel Class D Amplifier 4 X 100W 4 OHM + CROSSOVER




SYSTEM SPECIFICATIONS

Signal / Noise > 90 dB

THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)

Crosstalk (@ 1 kHz) > 70 dB

Technology Class-D

Protection DC Short circuit

Over heating

Over load

Signal limiting

Cooling Convection cooled

Operating temperature 0° ~ 40° @ 95% Humidity

Frequency Response (± 3 dB) 20 Hz - 20 kHz

Power Supply Switching mode

100 ~ 240 V AC / 50 ~ 60 Hz

Consumption 188 W

Inputs Sensitivity (1W/1m) 0 dB (1V RMS)

Impedance 12 kΩ balanced

Connector 3-pin XLR female

Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)

Power Consumption Standby 0.8 Watt (30 min standby time)

RMS Power @ 4 Ω Stereo 4 x 100 W

@ 8 Ω Bridge 2 x 200 W

@ 8 Ω Stereo 4 x 50 W



PRODUCT FEATURES

Dimensions 482 x 44 x 330 mm (W x H x D)

Weight 4.500 kg

Mounting 19”

Unit height 1 HE

Construction Steel

Colours Black
