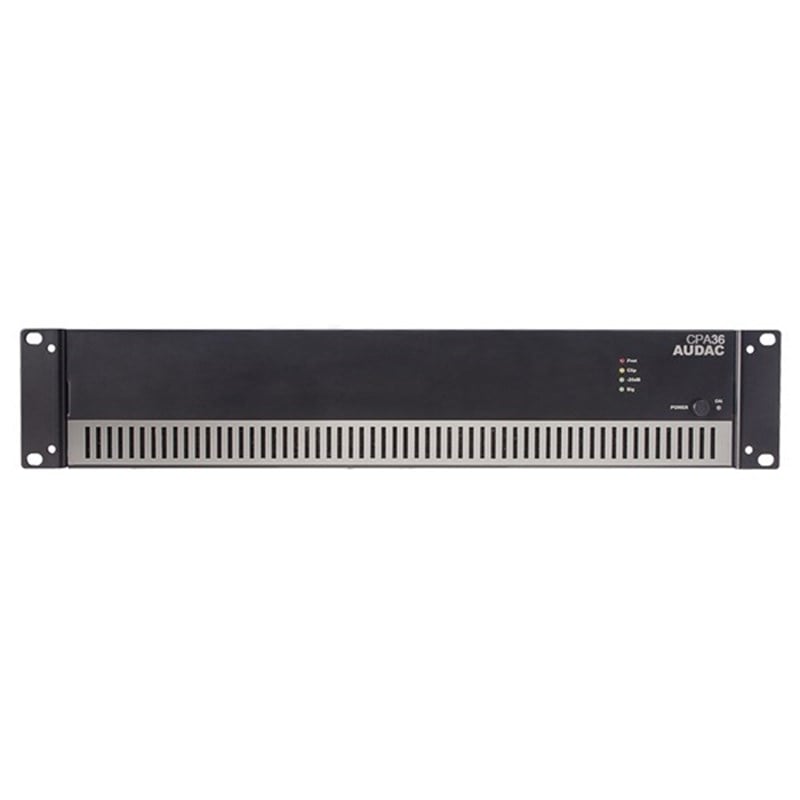

Audac CPA36 - 360W 100V, Dahili Limitör, Güç Amplifikatörü
Audac CPA36 - 360W 100V, Dahili Limitör, Güç Amplifikatörü
Audac CPA36 Tek Kanal 360W 100V Dahili Limitör Power Amfi

Audac CPA36 Tek Kanal 360W 100V Dahili Limitör Power Amfi

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Audac CPA36 Tek Kanal 360W 100V Dahili Limitör Power Amfi



RMS Power 360 W

Signal / Noise > 90 dB

THD+N (@ 1 kHz) < 1%

Technology Class A/B

Protection DC Short circuit

Over heating

Over load

Signal limiting

Cooling Dual speed controlled FAN

Operating temperature 0° ~ 40° @ 95% Humidity

Frequency Response (± 3 dB) 70 Hz - 18 kHz

Power Supply Conventional (Transformer)

Source 230 ~ 240 V AC / 50 ~ 60 Hz (110~115 V AC / 50~60 Hz after connection change)

Inputs Sensitivity (1W/1m) -12 dB ~ 0 dB

Impedance 10 kΩ balanced

Connector XLR female with Male Linkthrough

Outputs Voltage / Impedance 100 V / 28 Ω

70 V / 14 Ω

38 V / 4 Ω

Connector 4-pin Euro Terminal block (Pitch - 5.08 mm with locking)



Dimensions 482 x 88 x 330 mm (W x H x D)

Weight 15.100 kg

Mounting 19”

Unit height 2 HE

Construction Steel

Colours Black

Accessories Included 4-pin Euro Terminal Block outputs connector

2-pin Euro Terminal Block 24V Power connector

Optional CPE100 Rack mount handles
