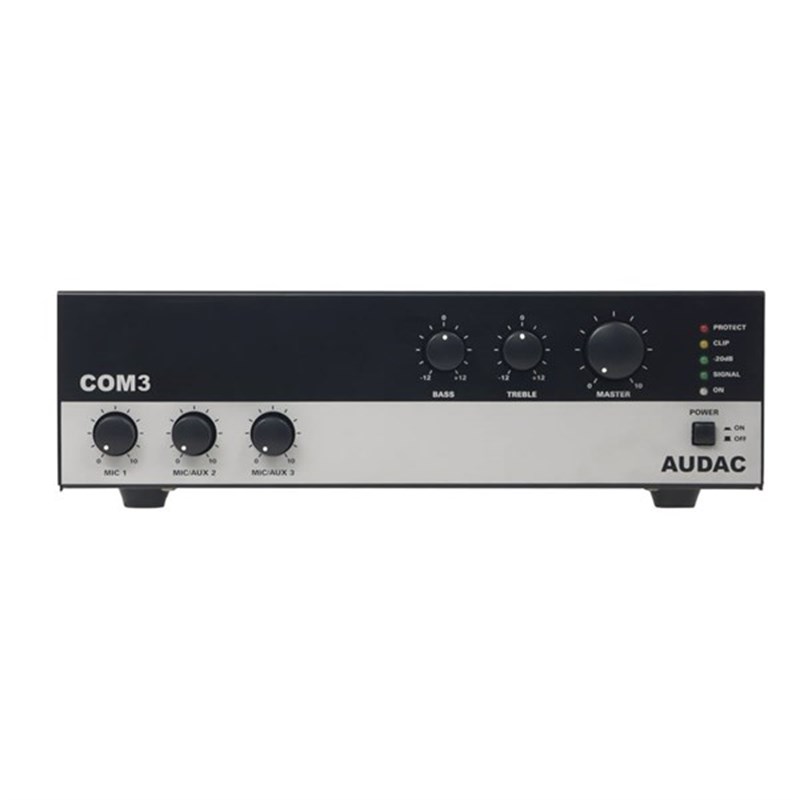

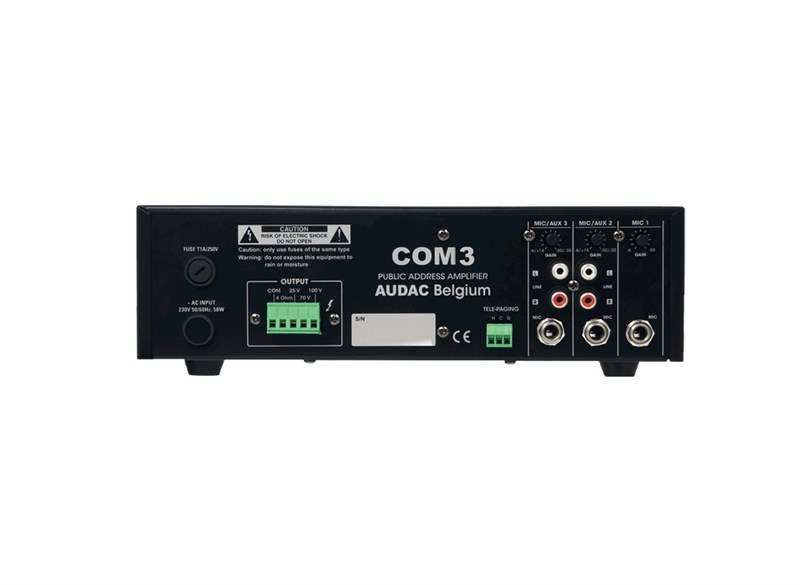

Audac COM3 - 1 Mikrofon Giriş 30W 100V Amfili Mikser
RMS Power 30 W
THD+N (@ 1 kHz) < 1%
Signal / Noise > 100 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Frequency Response (± 3 dB) 50 Hz - 15 kHz
Power Supply 230 V AC / 50 - 60 Hz
Outputs Level 100 V - 333 Ω
70 V - 163 Ω
25 V - 21 Ω
11 V - 4 Ω
Inputs Balanced Microphone 1 Impedance 20 kΩ balanced
Sensitivity (1W/1m) -50 dB ~ -6 dB
Connector 6.3 mm Jack
Balanced Microphone 2 - 3 Impedance 20 kΩ balanced
Sensitivity (1W/1m) -50 dB ~ -6 dB
Connector Stereo RCA & 6.3 mm Jack
Aux 2 - 3 Impedance 10 kΩ Unbalanced
Sensitivity (1W/1m) -30 dB ~ +14 dB
Connector Stereo RCA & 6.3 mm Jack
Tele-Paging Sensitivity (1W/1m) 0 dB - 600 Ω balanced
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Dimensions 270 x 76 x 230 mm (W x H x D)
Weight 4.500 kg
Colours Black
Accessories Optional COM6MB2 Mounting bracket
