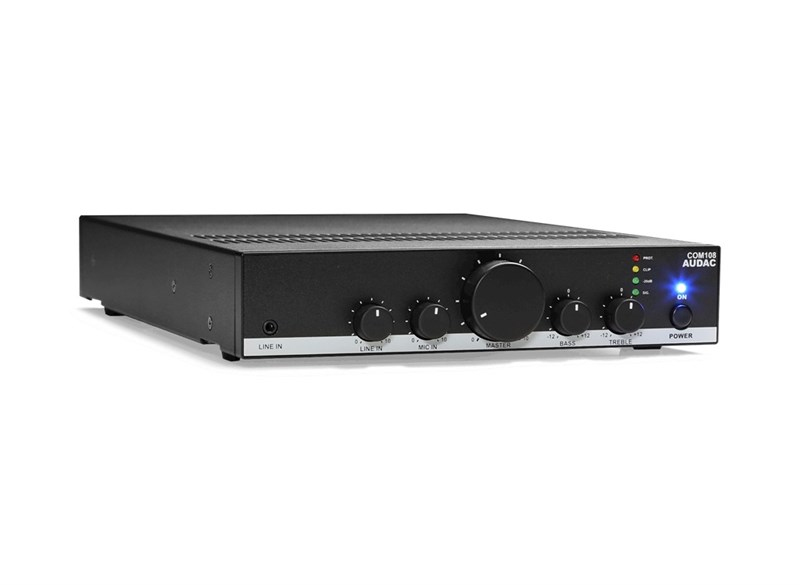

Audac COM108 80W 100V 70V 4 ohm Amfili Mikser
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Inputs Priority mute contact
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω 1 x 80 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Switching mode
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100/ 70 V / 4 Ω
Protection Amplifier DC Short circuit
Over heating
Signal limiting
Inputs Balanced Microphone Sensitivity (1W/1m) -0 dB ~ +50 dB
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Type 1 x Balanced Microphone
Unbalanced Stereo Connector RCA
Sensitivity (1W/1m) -4 dB ~ 20 dB
Power Supply Operating 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Balanced Microphone Phantom Power 15 V DC
Dimensions 217.5 x 43.7 x 300 mm (W x H x D)
Weight 3 kg
Mounting 1/2 19” / 1 HE or tabletop
Construction Steel
Colours Black
Accessories Optional 19” Rackmount adapter
