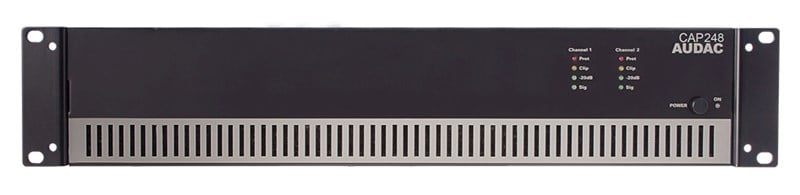

Audac CAP248 2x480W 100V D-Class Güç Amplifikatörü
Audac CAP248 2x480W 100V D-Class Güç Amplifikatörü
Audac CAP248 2x480W 100V D-Class Güç Amplifikatörü

Audac CAP248 2x480W 100V D-Class Güç Amplifikatörü

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Audac CAP248 2x480W 100V D-Class Güç Amplifikatörü



RMS Power 2 x 480 W

Signal / Noise > 100 dB

THD+N (@ 1 kHz) < 0.3% (1/2 Rated Power)

Crosstalk (@ 1 kHz) < 80 dB

Technology Class-D

Common mode rejection ratio 70 dB

Protection DC Short circuit

Over heating

Over load

Signal limiting

Cooling Temperature controlled FAN

Operating temperature 0° ~ 40° @ 95% Humidity

Frequency Response (± 3 dB) 50 Hz - 22 kHz

Power Supply Switching mode

Source 230 ~ 240 V AC / 50 Hz

Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB

Impedance 10 kΩ balanced

Connector XLR female with Male Linkthrough

Outputs Voltage / Impedance 100 V / 21 Ω

Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)



Dimensions 482 x 88 x 420 mm (W x H x D)

Weight 7.500 kg

Mounting 19”

Unit height 2 HE

Construction Steel

Colours Black

Accessories Included 2 x 4-pin Euro Terminal Block outputs connector

Optional CPE100 Rack mount handles
