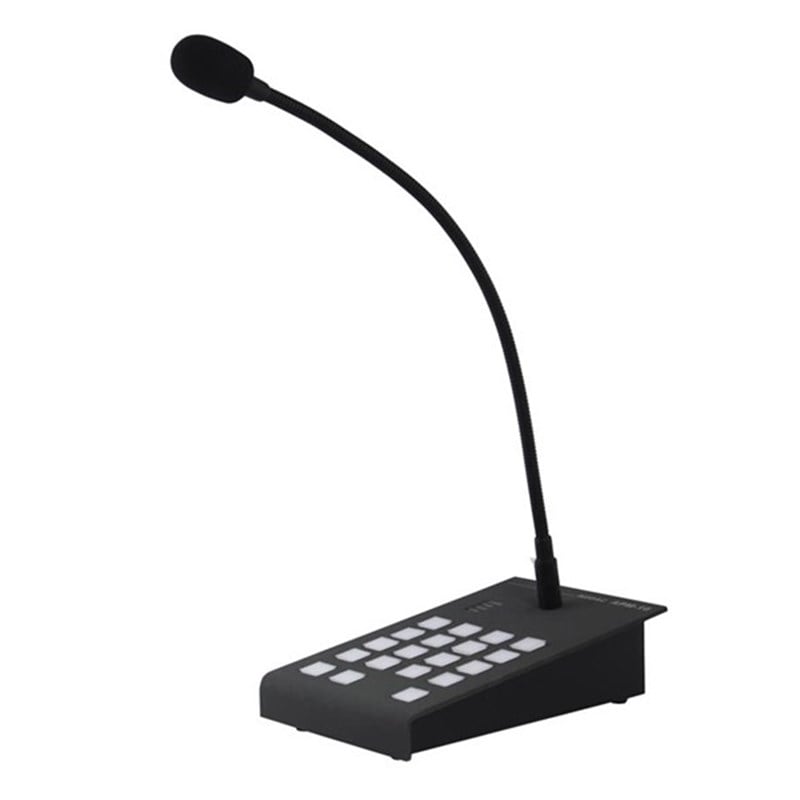

Audac APM116MK2 16 Bölge 30 cm Anons Mikrofonu
Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB ± 3 dB / Pa
Buttons 16 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Indicators 3 Colours illuminated push button
Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Microphone Type Back electret condenser
Frequency Response (± 3 dB) 100 Hz - 20 kHz
Power Supply 24 V DC (min. 16V DC)
Consumption 4.8 W
Microphone Gooseneck length 350 mm
Max. cable length With external PSU 300 m
Without external PSU 133 m
Dimensions 120 x 55 x 190 mm (W x H x D)
Weight 1.350 kg
Data protocol RS-485
Audio protocol Analogue
Digital (configurable)
Colours Grey metallic front panel
Construction Steel
Required cabling Analog UTP CAT5E
Digital UTP CAT6
Accessories Included Windscreen (MWS05/B)
Optional ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
