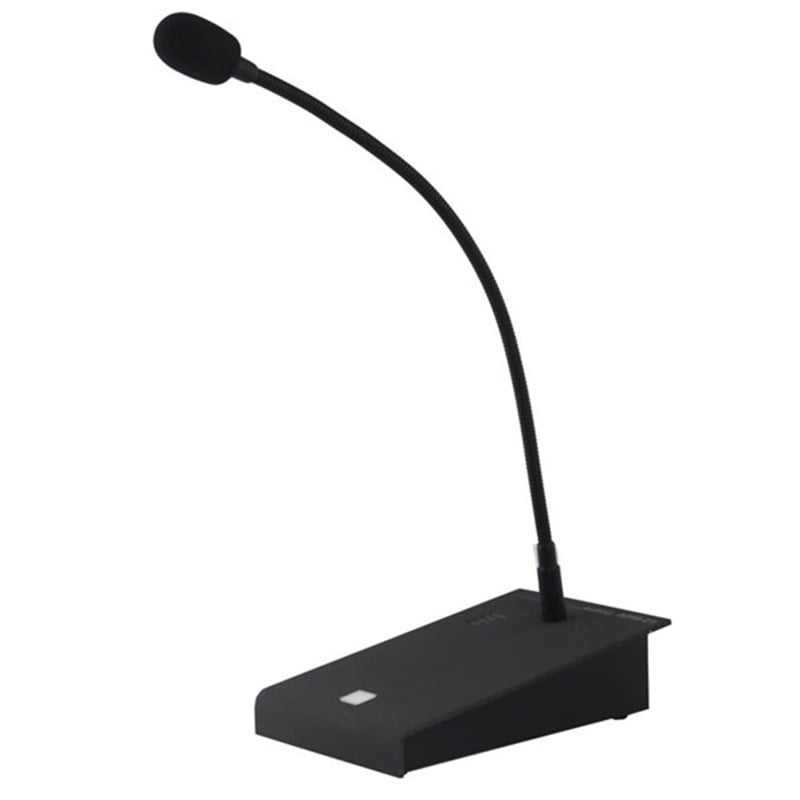

Audac APM101MK2 Tek Bölge 30 cm Kuğu Boynu Anons Mikrofonu
The APM101MK2 is a digital paging microphone for 1 zone which is equipped with a condenser element with cardiologic characteristics, mounted on a 30 cm gooseneck. By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel to ensure the speaker that the message is clear and audible in all situations. The console has a Push To Talk button.
Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB
Buttons 1 x programmable PTT (push-to-talk)
Indicators 3 Colours illuminated push button
Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Microphone Type Back electret condenser
Gooseneck length 350 mm
Frequency Response (± 3 dB) 100 Hz - 20 kHz
Power Consumption 4.8 W (max.)
Supply 24 V DC (min. 16V DC)
Max. cable length Without external PSU 113 m
With external PSU 300 m
Dimensions 120 x 55 x 190 mm (W x H x D)
Weight 1.350 kg
Data protocol RS-485
Audio protocol Analogue
Digital (configurable)
Colours Grey metallic front panel
Construction Steel
Required cabling Analog UTP CAT5E
Digital UTP CAT6
Accessories Included Windscreen (MWS05/B)
Optional ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
