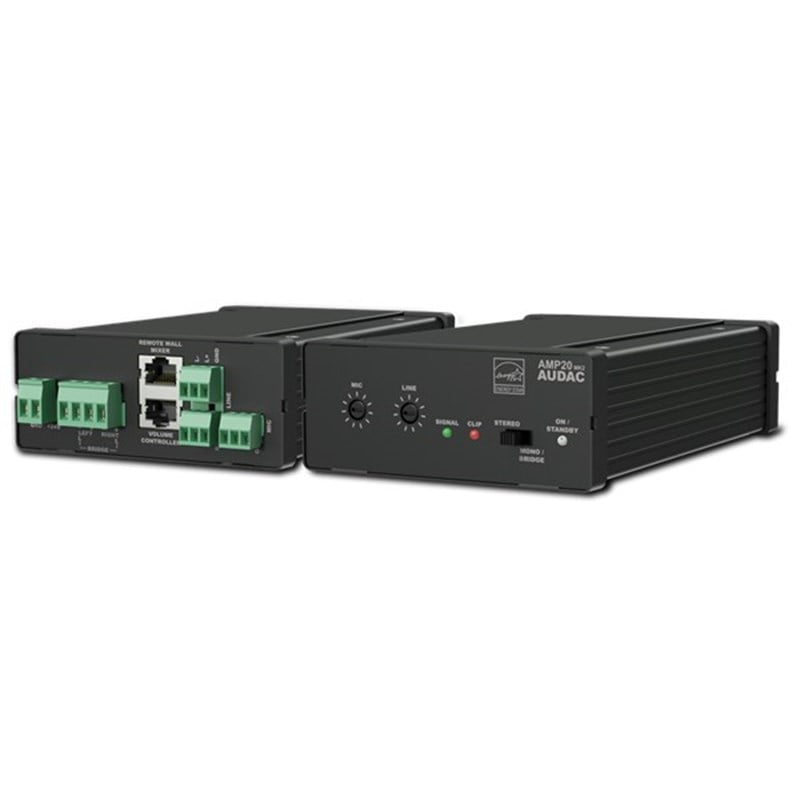

Audac AMP20MK2 - 2x15W/4 ohm Mini Stereo Amplifikatör
Audac AMP20MK2 - 2x15W/4 ohm Mini Stereo Amplifikatör

Audac AMP20MK2 Mini Stereo Amplifikatör 2x15W 4 ohm

Marka : Audac
Fiyat : $0.00(KDV Dahil)



Audac AMP20MK2 Mini Stereo Amplifikatör 2x15W 4 ohm



THD+N (@ 1 kHz) < 0.1%

Crosstalk (@ 1 kHz) < -75 dB

Signal / Noise > 95 dB

Efficiency 87%

Cooling Convection cooled

Protection Over heating

Over load

DC Short circuit

Signal limiting

Energy certification Energy Star 3.0

RMS Power @ 4 Ω Stereo 2 x 15 W

@ 8 Ω Stereo 2 x 7.5 W

@ 8 Ω Bridge 30 W

Outputs Type 1 x Stereo Loudspeaker

Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)

Power Supply 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)

Inputs Balanced Stereo Type 1 x Stereo Balanced Line

Connector 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)

Impedance 20 kΩ

Sensitivity (1W/1m) -12 dBV ~ +12 dBV

Balanced Microphone Type 1 x Balanced Microphone

Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)

Impedance 47 kΩ

Sensitivity (1W/1m) -50 dBV ~ -18 dBV

Other Connector RJ45

Type 1 x Remote Volume controller

Connector RJ45

Power Consumption Standby 0.8 W (PSD241 included)



Dimensions 108 x 44 x 165 mm (W x H x D)

Weight 0.800 kg

Accessories Included PSD241 - Power supply 24V / 1.67 A (Efficiency Level V)

Optional VC3208 Remote volume controller

WP523 Remote wall mixer

MBS1xx Optional Wall mounting brackets

TR3030 100V Transformer 30 W
