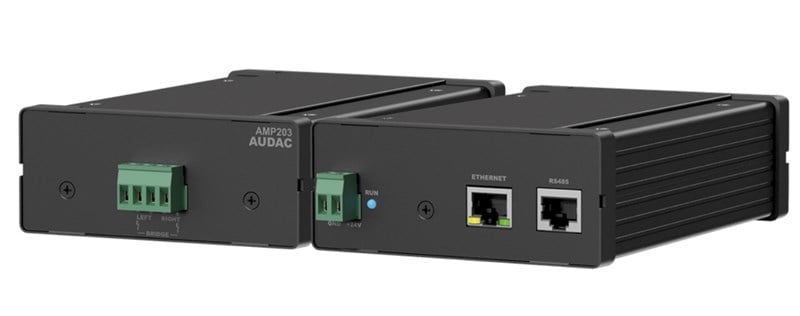

Audac AMP203 Dante Mini Stereo Amplifier
Audac AMP203 Dante Mini Stereo Amplifier

Audac AMP203 Dante Mini Stereo Amplifier

Marka : Audac
Fiyat : $1,583.33(KDV Dahil)

Dante Mini Stereo Amplifier



Audac AMP203 Dante Mini Stereo Amplifier



Etkili performansı ve en uygun fiyatıyla Audac AMP203'ü medumuzikmarket.com adresinden satın alabilirsiniz.



The AMP203 is a revolutionary mini stereo amplifier, featuring network input through Dante or AES67 providing a complete media networking solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency, while allowing all other data to be connected on the same network.

The output connector has been implemented using a 4-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged.

Using PoE (Power over Ethernet) this extremely power-efficient amplifier receives both power and signal through a single networking cable, this way flexibility is maximized while needed cabling is kept at a minimum.

The compact convection cooled enclosure eliminates any humm or buzz otherwise caused by a fan. Various optional mounting brackets are available like the MBS1xx series, which allow it to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or to a 19" equipment rack. This proves that the AMP203 is the perfect solution for compact to medium-sized applications in corporate, hospitality or retail environments.



Sistem Özellikleri

THD+N (@ 1 kHz)    < 0.015%
Crosstalk (@ 1 kHz)    < -98 dB
Efficiency    > 70%
Cooling    Convection cooled
Control    RS-485
TCP/IP
Power    PoE 802.3bt
Protection    Over heating
Over load
DC Short circuit
Signal limiting
RMS Power    @ 2 Ω Bridge    1 x 60 W
Power    Supply    24 V DC
Outputs    Type    1 x Stereo Loudspeaker
Connector    4-pin Euro Terminal Block (Pitch - 5.08 mm)
Power    Consumption    80 W (max.)
Inputs    Other    Type    1 x Ethernet
RS-485
Dante/AES67 (4 channels)
Connector    RJ45
Power    Consumption    Nominal (1/8 MUP)    10.6 W
RMS Power    @ 4 Ω Stereo    2 x 30 W
@ 8 Ω Bridge    1 x 30 W
@ 8 Ω Stereo    2 x 30 W
@ 4 Ω Bridge    1 x 60 W
