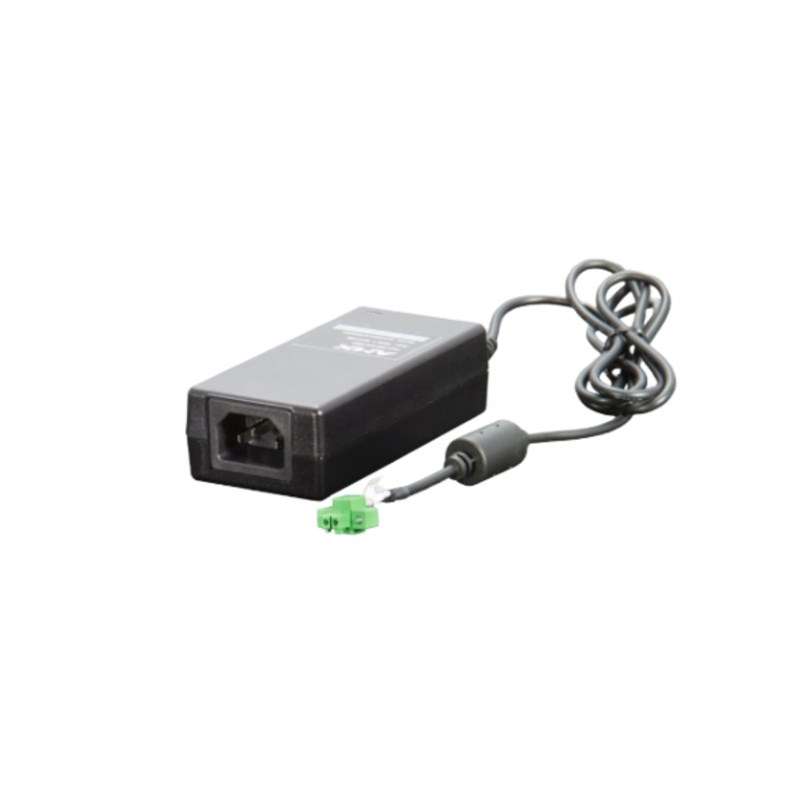

AMX PSR5.4 Power Supply with 3.5 mm Phoenix Connector with Retention Screws
AMX PSR5.4 Power Supply with 3.5 mm Phoenix Connector with Retention Screws

AMX PSR5.4 Power Supply with 3.5 mm Phoenix Connector with Retention Screws

Marka : AMX
Fiyat : $0.00(KDV Dahil)



AMX PSR5.4 Power Supply with 3.5 mm Phoenix Connector with Retention Screws



AMX PSR5.4, en uygun fiyatıyla medumuzikmarket.com'da
The PSR5.4 power supply provides 5.4 A of DC power and is an optional power supply for Modero X Touch Panels, and ships as an included accessory with the NMX-ENC H.264 Encoders. It includes a 3.5 mm Phoenix Connector with retention screws.



Specifications
Dimensions (HWD)    4 1/2" x 2" x 1 1/4" (11.5 cm x 5.15 cm x 3.05 cm)
Weight    1.1 lb (499 g)
Input Voltage    100-240 +10% VAC
Input Frequency    47-63 Hz
Input Current    <2A MAX at 100 VAC + full load
                         <1A MAX at 230 VAC + full load
Output Voltage    12 VDC
Output Current    5.4A MAX
Ripple and Noise    200 mV peak-to-peak @ full load
Protection    Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected
Power Indicator    Green LED indicates the presence of DC on the output
Connectors    Mini 2-pin captive wire connector (3.5 mm)
Power cables    50 mm IEC power cord terminated with a grounded Edison plug for AC input
Enclosure Material    Molded black matte plastic
Environmental    Operating Temperature: 32°F to 104°F (0°C to 40°C)
