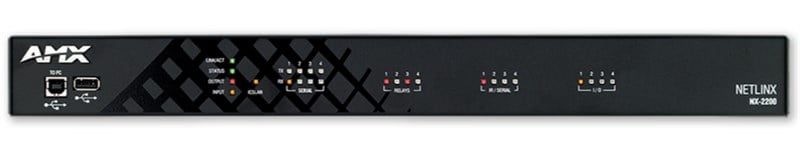

AMX NX-2200 Integrated Controller
Yüksek kalitesi, etkili performansı ve en uygun fiyatıyla NX-1200 medumuzikmatket.com'da
The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications, as it includes more ports and security capabilities than the NX-1200.
Features
Dual NIC The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
IPv6 Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
IEEE 802.1X Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
X.509 Certificate Services NX supports customer-provided certificates for access to protected networks
Full LDAP Integration Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) Easily scalable to support a wide range of applications for today and tomorrow
Full Line Compatible (Backwards and Cross-Compatibility) Standardized port numbers and new configuration import/export tools mean fewer coding changes
TLS / SSH Client Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
Cryptographic Support In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
Network Syslog Supports standard device logging to a syslog server
Enhanced Diagnostics On Serial and IR Ports Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
File Import / Export From USB Drive Backup and restore configuration and program data and update firmware from a standard USB flash drive
Hardware / Software Built for 24/7/365 Operation Provides outstanding reliability and improved diagnostics
Ultra-Fast 1600 MIPS processor
512 MB Onboard RAM
1 M Non-Volatile Memory
8 GB SDHC FLASH Memory
1 RU
1 AXLink Interface
1 10/100 LAN Interface
4 Digital I/O Ports
1 RS232/422/485 Port
3 RS232-Only Ports
4 IR/Serial Output Ports
4 Relay Ports
Specifications
Dimensions (HWD) 1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight 6.08 lb. (2.758 Kg)
Memory Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption Active Power Consumption: 4.2 W
AxLink Port (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator (1) AxLink LED (green) indicates the state of the AxLink port
RS-232/422/485 Ports (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port (3) 2-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator (4) sets of LEDs (red/yellow) indicate when serial Ports 1 - 4 are transmitting and receiving data
IR/Serial (4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14, Support high-frequency carriers up to 1.142 MHz, 4 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators (2) LEDs (red) indicate when each of the IR/Serial ports (11-14) are transmitting control data
I/O Channels (4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
Relays (4) One 8-position 3.5 mm Screw Terminal, (4) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled
Relay Indicators (4) LEDs (red) indicate when each of the relay channels (1-4) are active (closed)
