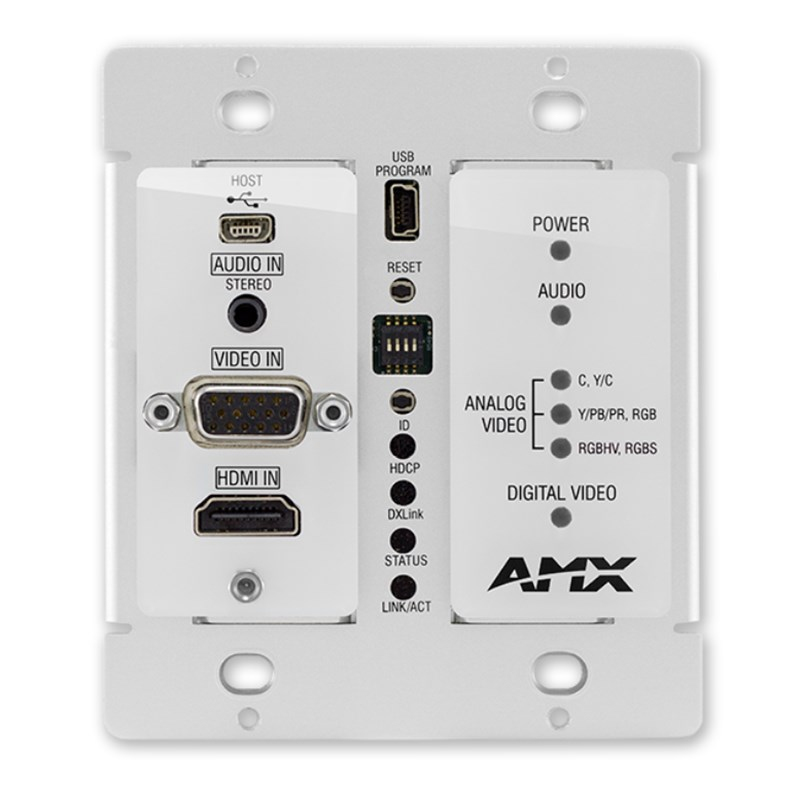

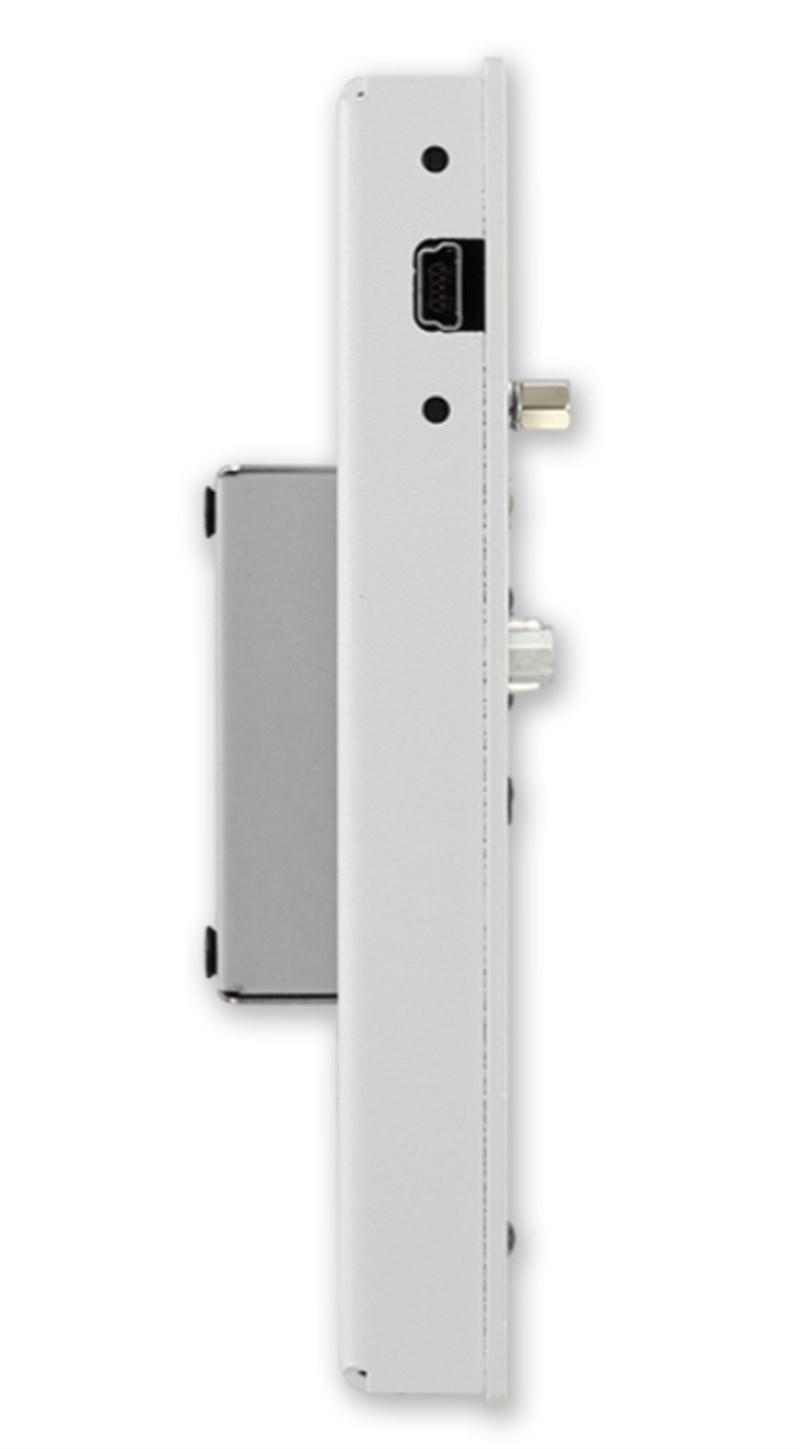

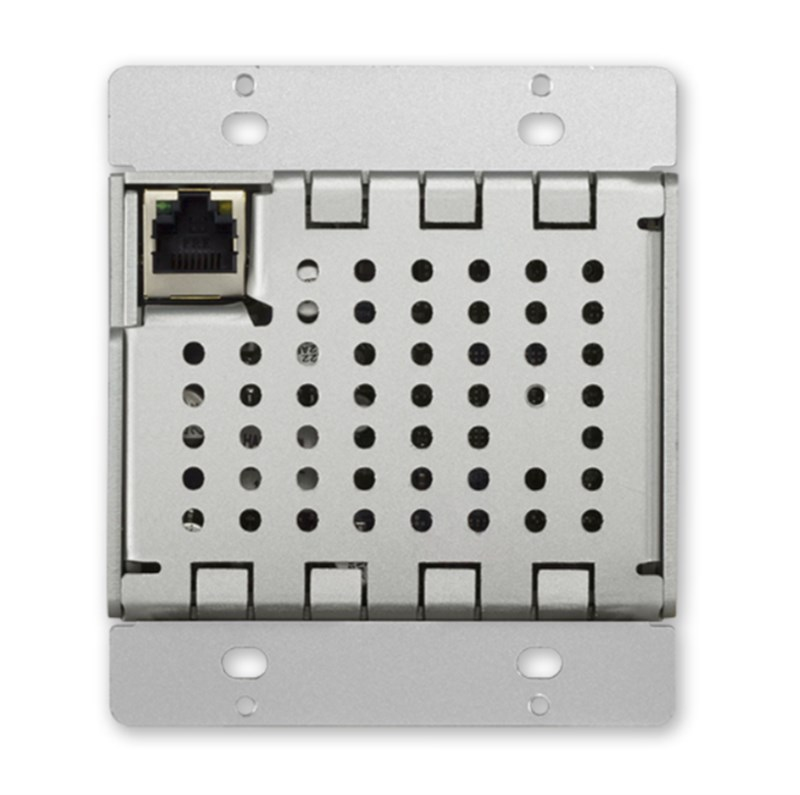

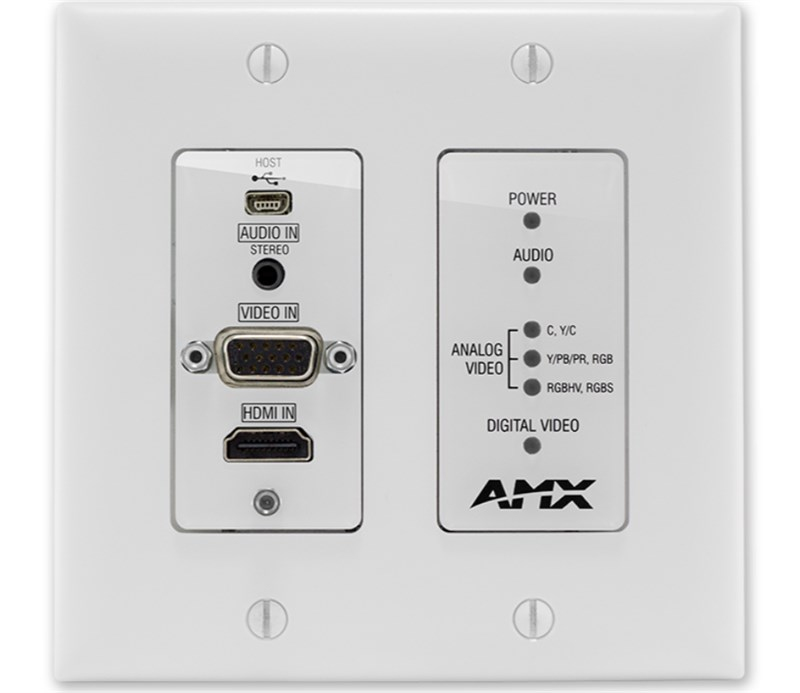

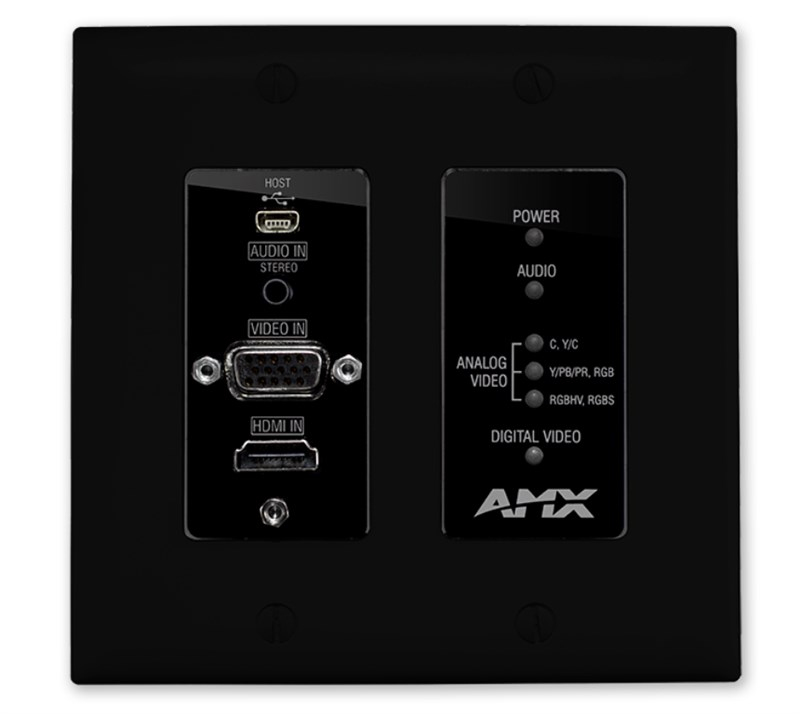

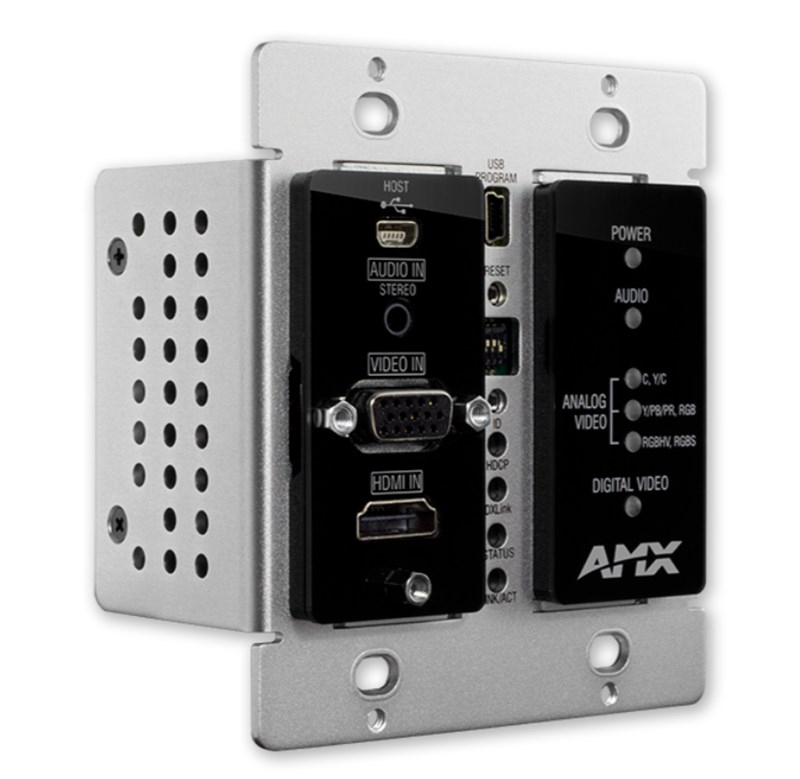

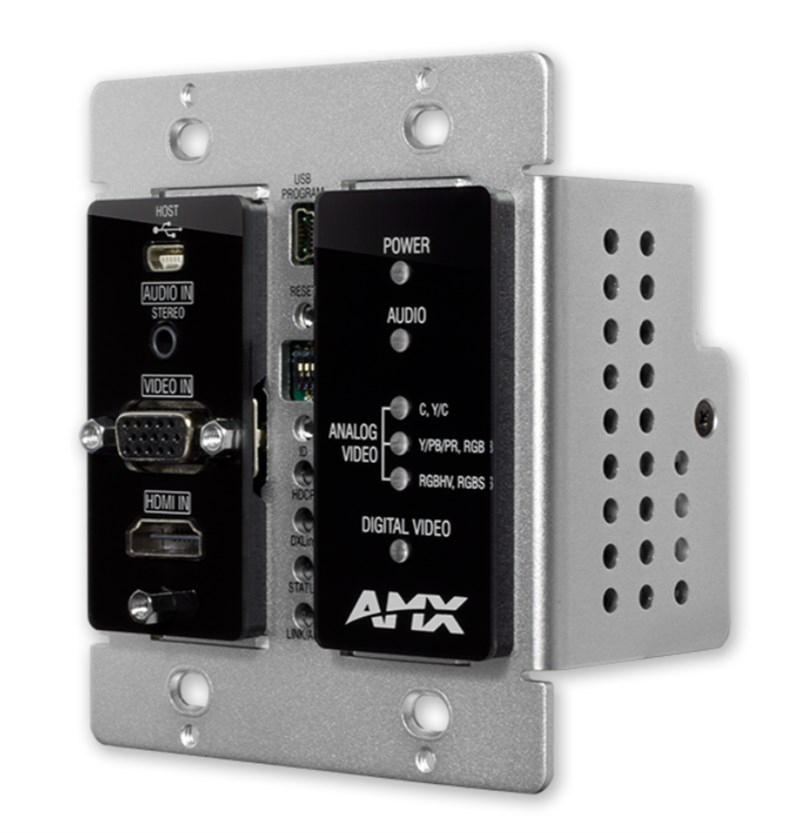

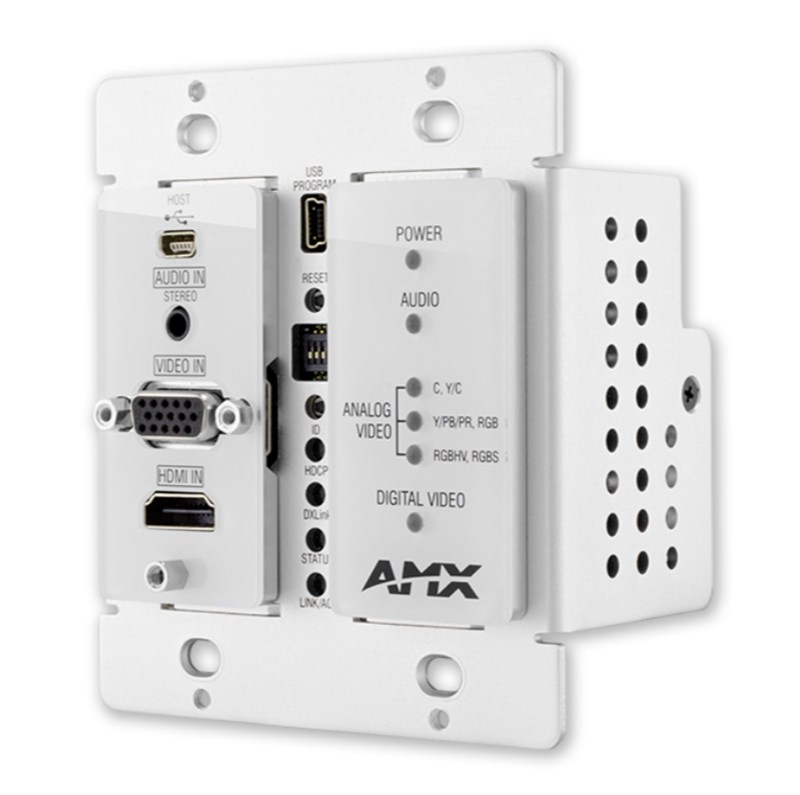

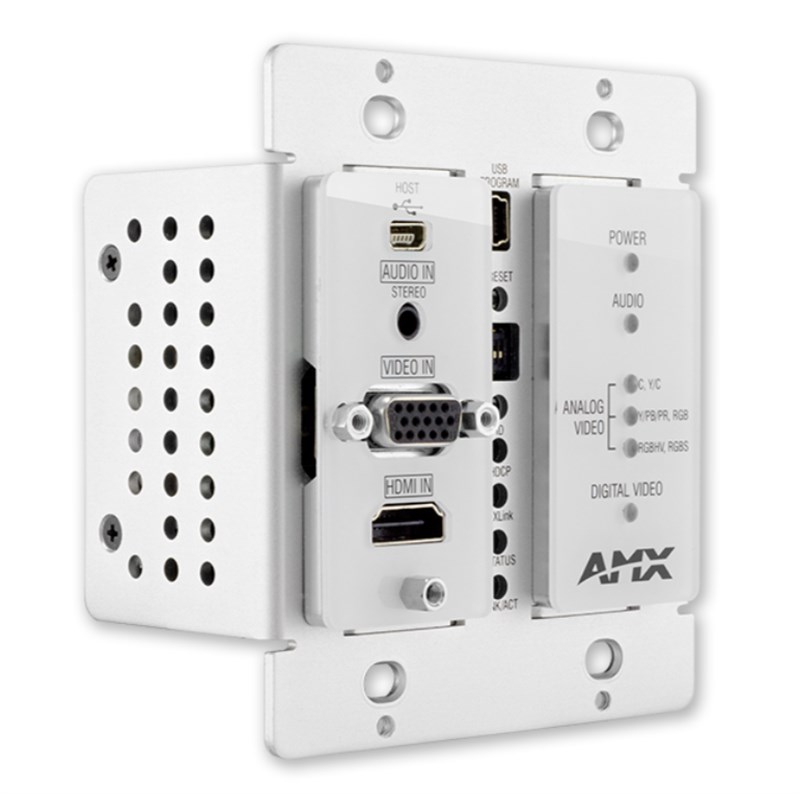

AMX DX-TX-DWP Multi-Format Decor Style Wallplate Transmitters
Etkili performansı, yüksek kalitesi ve en uygun fiyatıyla medumuzikmarket.com'da
The DXLink Multi-Format Decor Style Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, compatible Enova DVX All In One Presentation Switcher or directly to a DXLink Receiver. It receives Power over DXLink* from the Enova DGX, Enova DVX (3155HD, 3156HD, or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.
Features
Only One Cable Send audio and video, while passing power over one twisted pair cable
Multi-Format Analog Port and HDMI Port Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort++ and DVI signals
Send HDMI signals up to 100 meters Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
Standard Twisted Pair Cable Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
Easy Installation – Mounts in standard decor style wallplates
Power over DXLink* Enabled – Designed for use with Enova DGX or DVX systems with DXLink inputs, or PS-POE-AT-TC (FG423-84) or PDXL-2 (FG1090-170) to provide remotely located Power over DXLink (requires firmware v1.2.40 or above)
DXLink Direct Connection – When receiving Power over DXLink* from the PS-POE-AT-TC or PDXL-2, DXLink Wallplates can be connected directly to a DXLink Receiver for a point-to-point solution
