AMX DX-TX-DWP-4K Wallplate Transmitters
AMX DX-TX-DWP-4K Wallplate Transmitters

AMX DX-TX-DWP-4K Wallplate Transmitters

Marka : AMX
Fiyat : $1,680.00(KDV Dahil)

4K Decora HDMI DXLink




AMX DX-TX-DWP-4K Wallplate Transmitters






Etkili performansı ve en uygun fiyatıyla AMX DX-TX-DWP-4K, medumuzikmarket.com'da

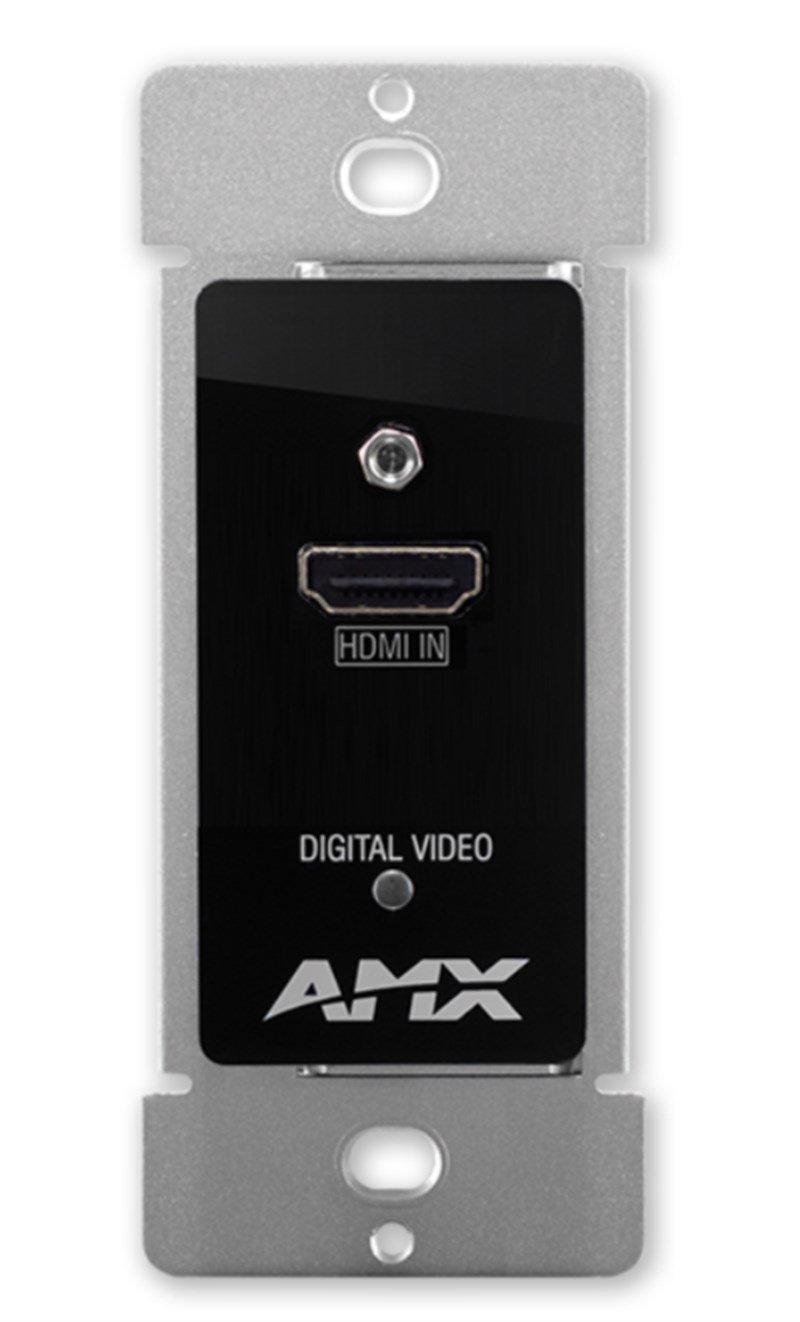

The AMX DX-TX-DWP-4K-WH is a single gang 4K decora white wall plate with an HDMI input, it features a DXlink output that transmits your 4K HDMI signal over twisted pair cable up to 230'.  Not only does it send your 4K video but it also embeds your HD audio.  The transmitter is HDCP compliant and will also pass 3D.  The wall plate cab be powered externally or from a DXLink device that sends power.  Send your signal to a compatible DXLink receiver with the DX-TX-DWP-4K.



Features


4K and Ultra High Definition (UHD) Support  Experience high-quality video resolution for 4K devices


Only One Cable   Send audio and video over one twisted pair cable


Send HDMI signals 80 meters  Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling


Standard Twisted Pair Cable  Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details



Easy Installation  Mounts in standard decor style wallplates





Specifications



Dimensions (HWD)

4 1/5” (10.67 cm) x 1 1/4” (3.23 cm) x 1 3/4” (4.45 cm)

Twisted Pair Cable Type & Length

Shielded Cat6A or Cat7; up to 262 ft. (80 m) for full 4K, 328 ft. (100 m) for 1080p and below

HDM
Compatible Formats: HDMI , HDCP, DVI (DVI requires conversion cable)
HDMI Support Progressive Resolution Support: 480p up to 4096 x 2160 @ 60 Hz* (*Y/Cb/Cr 4:2:0); Interlaced Resolution Support: 480i, 576i, 1080i; 4K Resolution Support: 3840 x 2160p @ 24/25/30 Hz up through 4096 x 2160p @ 60 Hz, 4:2:0*

HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
