Marka : AMX
Fiyat : $0.00(KDV Dahil)

Receiver Module

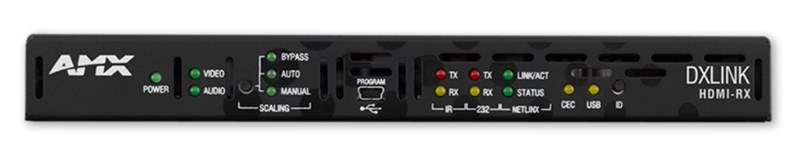

AMX DX-RX HDMI Alıcı Modülü



AMX marka DX-RX2'i yüksek kalitesi ve en uygun fiyatıyla meduzikmarket.com adresinden satın alabilirsiniz.


The DXLink HDMI Receiver is a distance transport solution that features built-in SmartScale®Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one standard twisted pair cable up to 100 meters away from a compatible Enova DVX All-In-One Presentation Switcher, Solecis Digital Switcher, DXLink Transmitter Module or DXLink Wallplate; it accepts all this plus power over the same twisted pair cable when used in conjunction with the Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-2150HD or DVX-2155HD. Mount the low-profile DXLink Receiver behind a display or above a ceiling mounted projector and control it using the built in RS-232 or IR ports. Plus monitor the connected display's settings, and send IR control signals back to the head end using the same twisted pair cable.



Features



Only One Cable   Receive audio and video while passing control, Ethernet and power over one twisted pair cable


SmartScale Technology   Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system


Native NetLinx® Control Everywhere   Control connected destination devices using the built-in IR and RS-232 ports


Standard Twisted Pair Cable   Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details


HDCP Compliant


DXLink Direct Connection with DXLink Wallplates   When DXLink Wallplates are receiving Power over DXLink from the PS-POE-AT-TC or PDXL-2, they can be connected directly to a DXLink Receiver for a point-to-point solution. Solecis Digital Switchers can also be used in point-to-point applications with a DXLink Receiver.





Specifications





Dimensions (HWD)

1" x 8 3/4" x 5 1/5" (2.54 cm x 22.12 cm x 13.08 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Cat6A and Cat7; up to 328 ft (100 m)

USB (HID)

(1) USB Mini A/B Connector (“HOST”)

Front Connectors

Advanced Configuration Interface*: USB Mini-B Connector (*This feature will be available upon release of a future firmware update)
Back Connectors

Local Power: 2.1 mm DC Power Jack; DXLink Input: RJ-45; ICSLAN/Ethernet Port: RJ-45 Connector, TCP/IP Port (ICSLAN 10/100)
HDMI  Compatible Formats: HDMI, HDCP, DVI

HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Deep Color Support: 24-bit, 30-bit, 36-bit; 3D Format Support: Yes
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio DTS, 2 CH L PCM, 6 CH L-PCM, 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit

HDCP HDCP Support: Yes
Stereo Audio

Output Signal Types: Stereo Analog; Output Connectors: 3.5mm Mini-Stereo Jack (Analog Stereo)
Power Supply

External, Included: Each HDMI RX ships with a desktop power supply (ENERGY STAR® qualified) with power cord; External, Optional: Power can also be supplied by a DXLink Power sourcing device

Compatible AMX Products

Enova DGX 800/1600/3200/6400 Digital Media Switchers; Enova All-In-One Presentation Switchers; DXLink Multi-Format/Decor Style Wallplate Transmitters; Solecis Multi-format/HDMI Digital Switcher; High Power PoE Injector; Power over DXLink Controller
