AMX DX-RX-4K HDMI Alıcı Modülü
Etkili performansı ve en uygun fiyatıyla DX-RX-4K HDMI Alıcı Modülü, medumuzikmarket.com'da

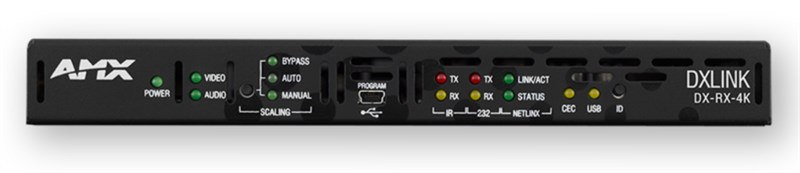

The DXLink 4K HDMI Receiver is a 4K and Ultra High Definition (UHD) capable distance transport solution that features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one shielded Cat6A or Cat7 standard twisted pair cable up to 70 meters.
Features
4K and Ultra High Definition (UHD) Support Experience high-quality video resolution for 4K devices.
Only One Cable Receive audio and video while passing control, Ethernet and power over one twisted pair cable
SmartScale Technology Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
Native NetLinx® Control Everywhere Control connected destination devices using the built-in IR and RS-232 ports
Standard Twisted Pair Cable Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
HDCP Compliant
DXLink Direct Connection with DXLink Wallplates When DXLink Wallplates are receiving Power over DXLink from the PS-POE-AT-TC or PDXL-2, they can be connected directly to a DXLink Receiver for a point-to-point solution. Solecis Digital Switchers can also be used in point-to-point applications with a DXLink Receiver.
Specifications
Dimensions (HWD) 1" x 8 3/4" x 5 3/16" (2.54 x 22.22 cm x 13.18 cm)
Twisted Pair Cable Type & Length Shielded Cat6A and Cat7; Up to 262 ft. (80 m) for full 4K format support; Up to 328 ft. (100 m) for 1080p and below format support
USB (HID) USB Type A Connector ("Device")
Front Connectors Advanced Configuration Interface*: USB Mini-B Connector (*This feature will be available upon release of a future firmware update)
Back Connectors Local Power: 2.1 mm DC Power Jack; DXLink Input: RJ-45; ICSLAN/Ethernet Port: RJ-45 Connector, TCP/IP Port (ICSLAN 10/100)
HDMI Compatible Formats: HDMI, HDCP, DVI
HDMI Resolution Support Progressive Resolution Support: 480p up to 4096 x 2160 @ 60 Hz* (*Y/Cb/Cr 4:2:0); 4K Resolution Support: 3840 x 2160p @ 24/25/30 Hz through 4096 x 2160p @ 60 Hz, 4:2:0* (*supported by DX-RX-4K when in Bypass Scaling mode)
HDMI Audio Support Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
HDCP HDCP Compliant
Stereo Audio n/a
Power Supply External, Included: Desktop power supply (ENERGY STAR® qualified): 1 per module; External, Optional: Power can also be supplied by a DXLink Power sourcing device
Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers; Enova All-In-One Presentation Switchers; DXLink Multi-Format/Decor Style Wallplate Transmitters; Solecis Multi-format/HDMI Digital Switcher; High Power PoE Injector; Power over DXLink Controller
